Example circuits
A.2 Control circuit connection
SIRIUS 3RW55 soft starter
208 Manual, 08/2018, A5E35630887002A/RS-AB/002
A.2.2
Control by means of switch with optional pump cleaning function
WARNING
Automatic restart.
Can cause death or serious injury.
If a starting command is pending, a restart will be triggered automatically after the reset.
This particularly applies if the motor protection has tripped. Dangerous states of the system
can result.
Reset the start command (e.g. via the PLC or switch) before performing a reset.
To do this, for example, link the group error output (terminals 95 and 96) into the control.
Requirements
● Parameterization required
For more information, see Chapter Pump cleaning function (Page 126).

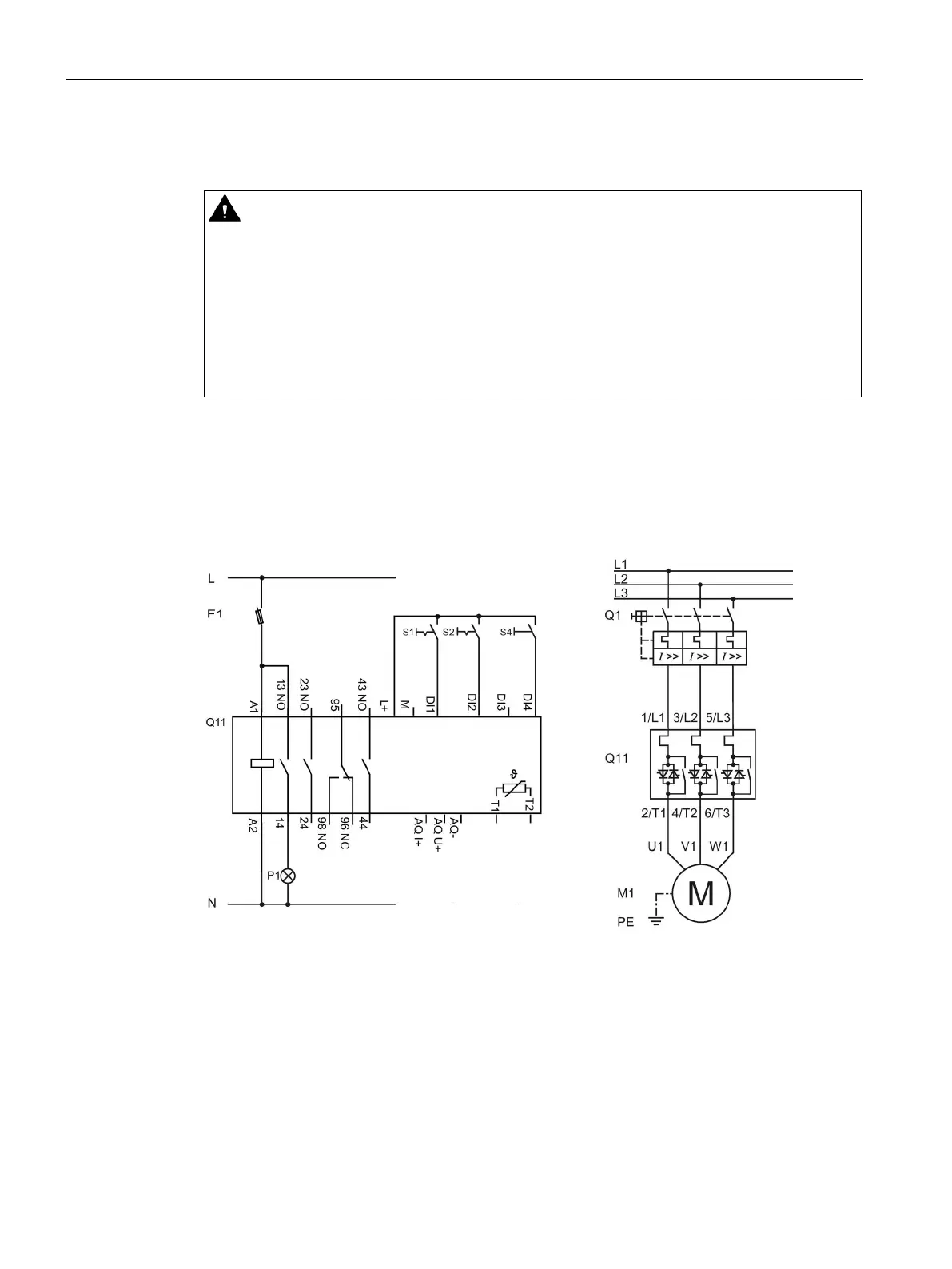

Wiring of control circuit for control by means of switch with optional pump cleaning function
F1
Fuse
S1
Switch: Motor On / Off
S2
Activate pump cleaning (optional)
S4
Pushbutton: Reset
Q1
Motor starter protector
Q11
3RW55 soft starter
P1
Indicator light
M1
Motor
PE
Protective conductor
