4.5 Replacing the terminals on size 2 devices
SIRIUS 3RW55 soft starter
58 Manual, 08/2018, A5E35630887002A/RS-AB/002
4.5
Replacing the terminals on size 2 devices
Requirements
● Pay attention to the required tools indicated on the front beneath the hinged cover.
Dismantling procedure
DANGER
Hazardous voltage.
Will cause death or serious injury.
Turn off and lock out all power supplying this device before working on this device.

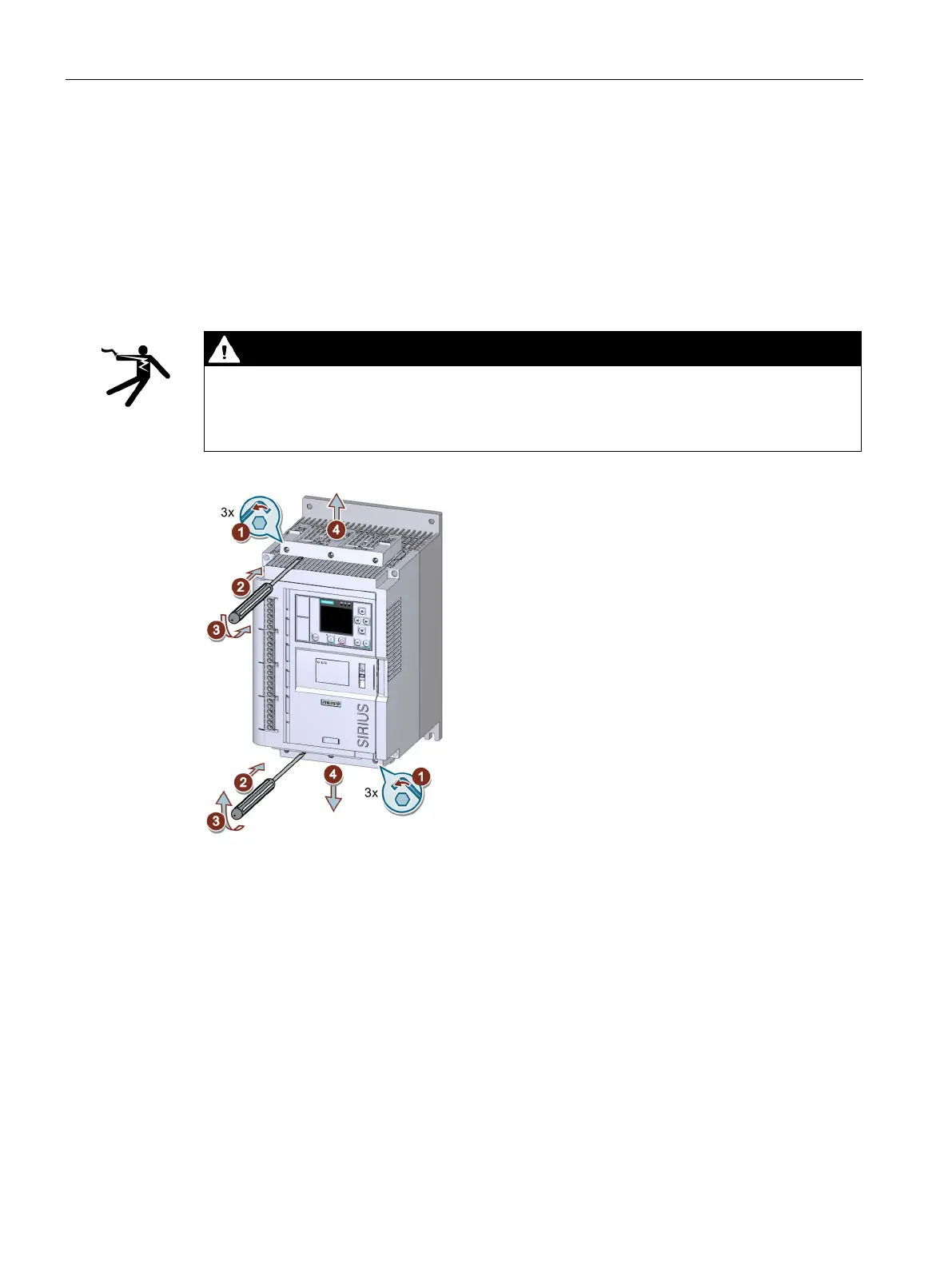

● Unscrew the 3 screws on the two connecting terminals ① and lever the terminal off the
main circuit connections
② + ③.
● Remove the connecting terminal from the main circuit connection
④.
