Example circuits

A.3 Special applications

SIRIUS 3RW55 soft starter

230 Manual, 08/2018, A5E35630887002A/RS-AB/002

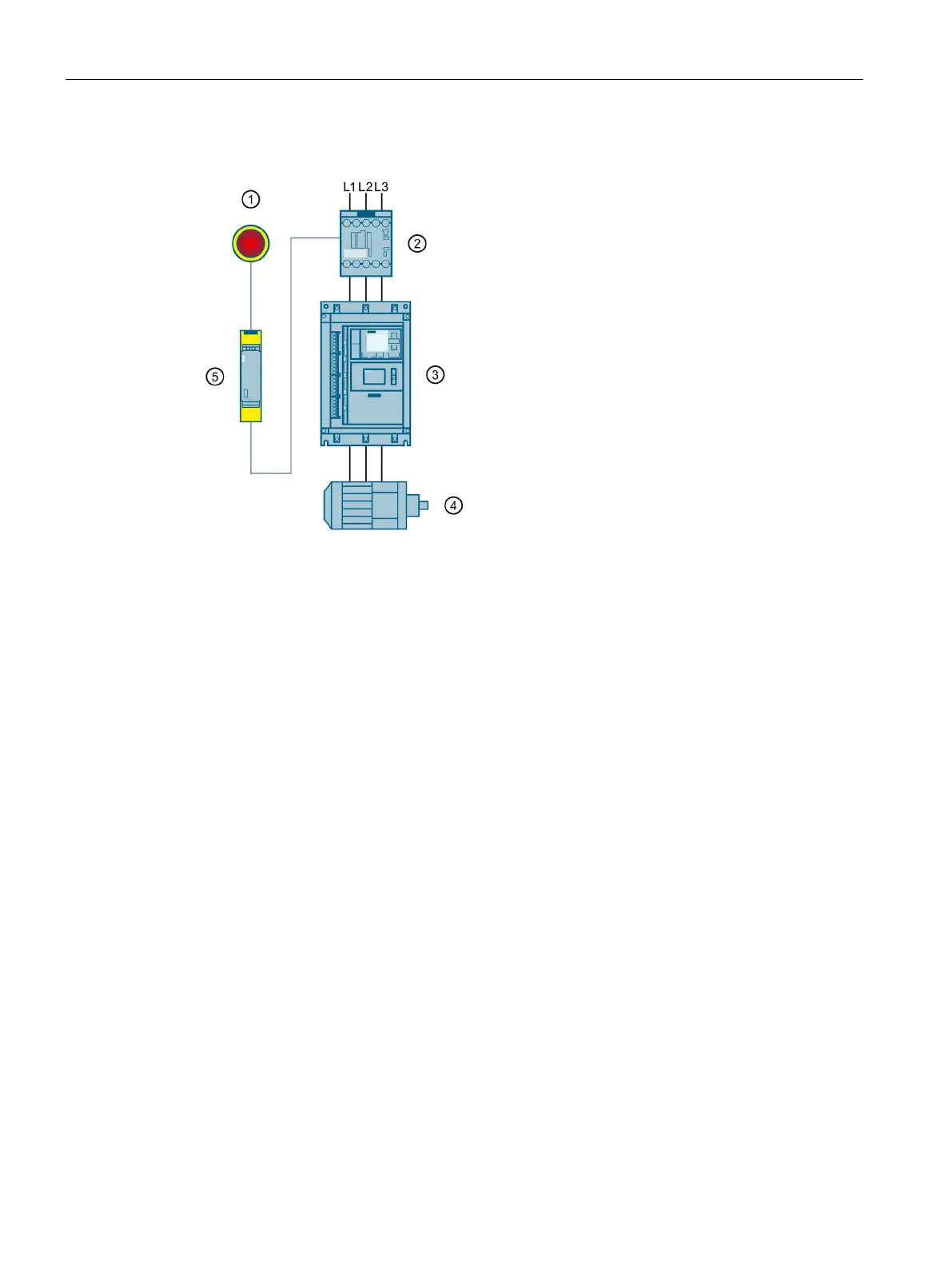

Basic configuration

①

EMERGENCY STOP

②

3RT20 contactor

③

3RW55 soft starter

④

Motor

⑤

3SK1 safety relay
