Simplex 4100 User Manual

37
HOW TO OPERATE THE MICROPHONE DURING NON-ALARM CONDITIONS (SEE FIGURE 15)
During non-alarm conditions, operate the microphone in the following manner.
HOW TO USE THE LOCAL PANEL SPEAKER (SEE FIGURE 16)

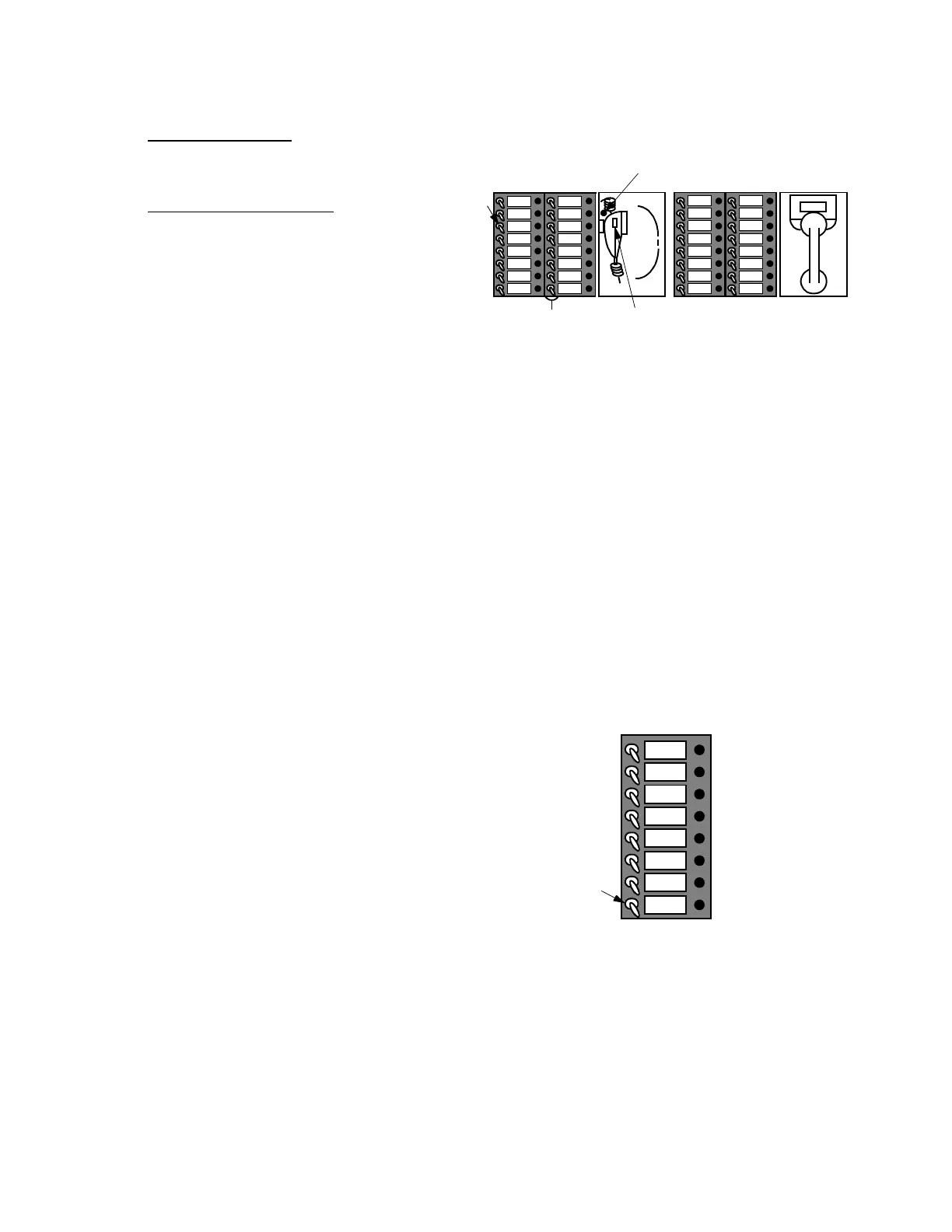

Figure 15
LED/Switch Locations for Microphone Operation
During Non-Alarm Conditions (Single Channel)
A
FLR 1
FLR 2
FLR 3
FLR 4
FLR 5
FLR 6
FLR 7
FLR 8
PHONE
SLIENCE
PHONE1
PHONE 2
PHONE 3
PHONE 4
PHONE 15
PHONE 6
PHONE 5
PHONE 14
PHONE 13
PHONE 12
PHONE 11
PHONE 10
PHONE 9
PHONE 8
PHONE 7
D
C
B
ALL
SPEAKERS
EVAC
SELECTIVE
EVAC
ALL
SPEAKERS
TALK
LOCAL
SPEAKER
Figure 16
LED/Switch Locations for Local Panel Speaker
Operation (Single Channel)
ALL
SPEAKERS
EVAC
SELECTIVE
EVAC
ALL
SPEAKERS
TALK
LOCAL
SPEAKER
A
To use the local speaker to hear a message that is
currently playing, do the following.
1. Turn ON (UP) the LOCAL SPEAKER Switch
(Item A).
2. When you have finished listening to the
message, turn OFF (DOWN) the LOCAL
SPEAKER Switch.
1. To talk to ALL areas:
Turn ON (UP) ALL SPEAKERS TALK Switch
(Item A) and go to Step 2.
To talk to SPECIFIC areas:
Turn ON/OFF desired Speaker Select Switches
(Item B).
2. Remove the microphone from the cradle; press
the Talk switch (Item C). Wait for the green
TALK LED to turn ON (Item D).
3. Make the appropriate announcement.
4. When finished, unkey the microphone and
place it in the cradle.
5. Turn OFF (DOWN) ALL SPEAKERS TALK
Switch and/or activated Speaker Select
Switches (Items A and B).
firealarmresources.com

Simplex 4100 Specifications

General

Type	Fire Alarm Control Panel
Manufacturer	Simplex
Model	4100
Network Capability	Yes
Addressable	Yes
Power Supply	120/240 VAC, 50/60 Hz
Display	LCD
Annunciator Support	Yes
Battery Backup	Yes
Releasing Capability	Yes
Max Devices	Depends on configuration
Max Notification Appliance Circuits (NAC)	Varies with configuration
Max Releasing Circuits	Varies with configuration
Max Remote Annunciators	Varies with configuration
Communication Ports	Multiple
Operating Temperature	32°F to 120°F (0°C to 49°C)
Humidity Range	Up to 93% RH, non-condensing
NAC Outputs	4 (expandable)
Networking	Yes
