HOW TO OPERATE THE MICROPHONE DURING NON-ALARM CONDITIONS (SEE FIGURE 24)
During non-alarm conditions, operate the microphone in
the following manner.
1. To talk to ALL areas:
Turn ON (UP) ALL SPEAKERS TALK Switch
(Item A) and go to Step 2.
To talk to SPECIFIC areas:
Turn bottom desired Speaker Select Switches
UP to activate (Item B).
2. Remove the microphone from the cradle; press
the Talk switch (Item C). Wait for the green
TALK LED to turn ON (Item D).
3. Make the appropriate announcement.
4. When finished, unkey the microphone and
place it in the cradle.
5. Turn OFF (DOWN) the ALL SPEAKERS TALK
Switch and/or the bottom activated Speaker
Select Switches to DOWN position (Items A
and B).

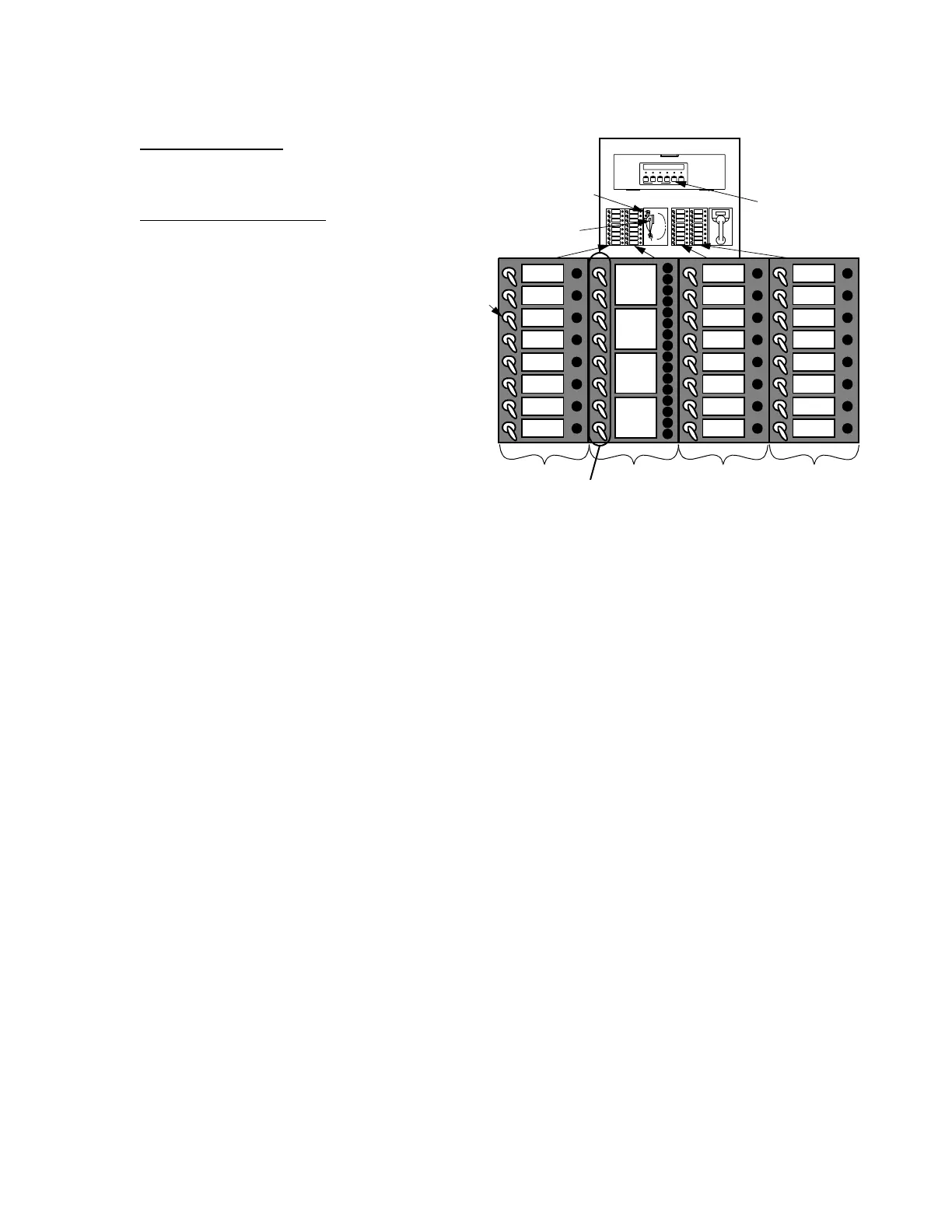

Figure 24
LED/Switch Locations for Microphone Operation
