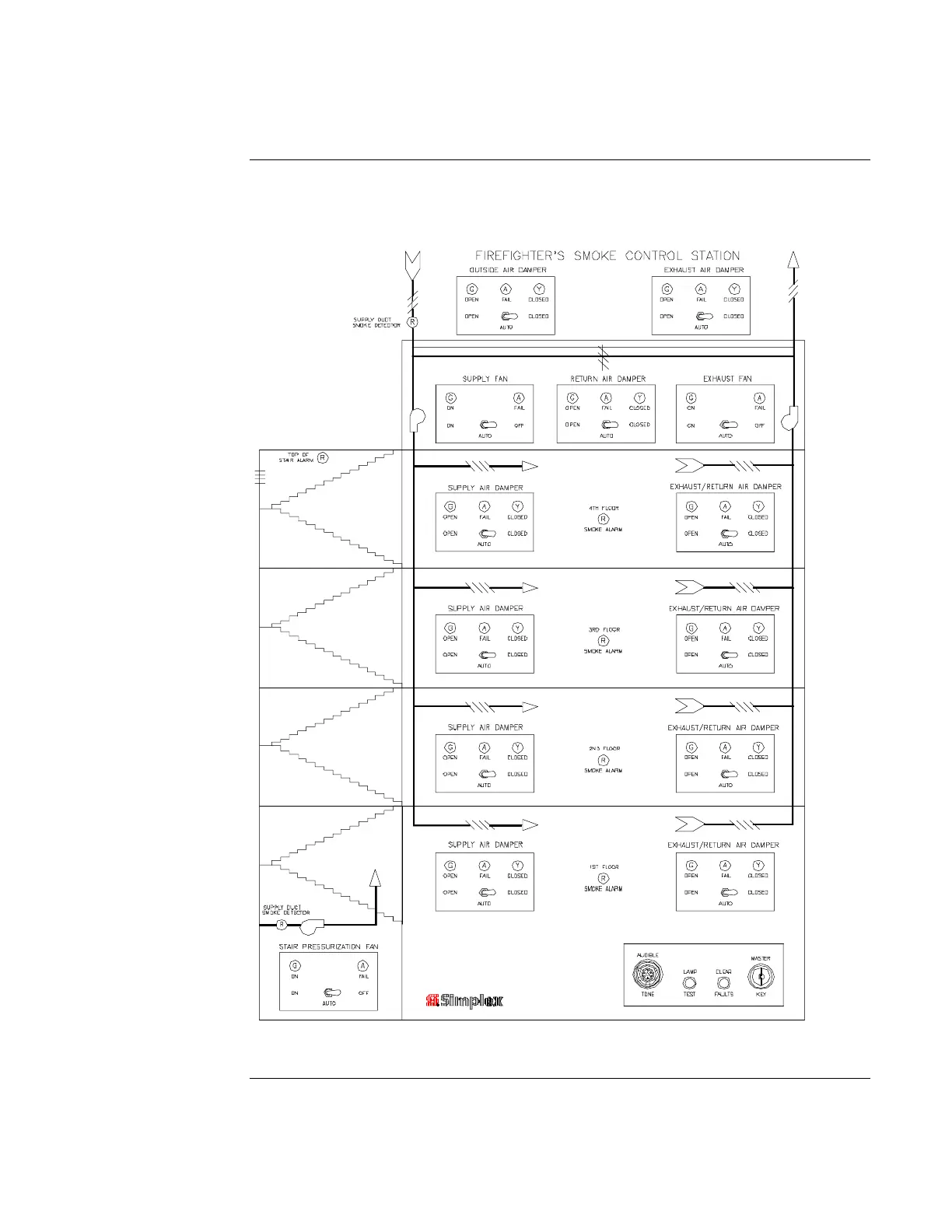

The figure below shows a view of a typical Firefighter’s Smoke Control Station (FSCS) used with
the Simplex Smoke Control System. FSCS panels are custom designed for each building. See the
“FSCS Ordering Information” section later in this chapter.
Figure 3-4. Firefighter’s Smoke Control Station
Continued on next page
Firefighter Smoke Control Station
Firefighter Smoke
Control Station
(FSCS)

Simplex 4100U Specifications

General

Control Panel Type	Addressable Fire Alarm Control Panel
Display	LCD
Power Supply	120/240 VAC, 50/60 Hz
Max Signaling Line Circuits (SLC)	2
Operating Temperature	0°C to 49°C (32°F to 120°F)
Humidity Range	10% to 93% non-condensing
Network Capability	Yes
Communication Protocol	RS-232, RS-485
Battery Backup	24 VDC
NAC Outputs	4
Signaling Line Circuits (SLCs)	2
Power Supply Current	3.0 A
Max Notification Appliance Circuits (NAC)	4
Max Releasing Circuits	4
Max Relay Circuits	4
Communication Ports	RS-232, RS-485
