Simplex 4100U Application Guide

4-5

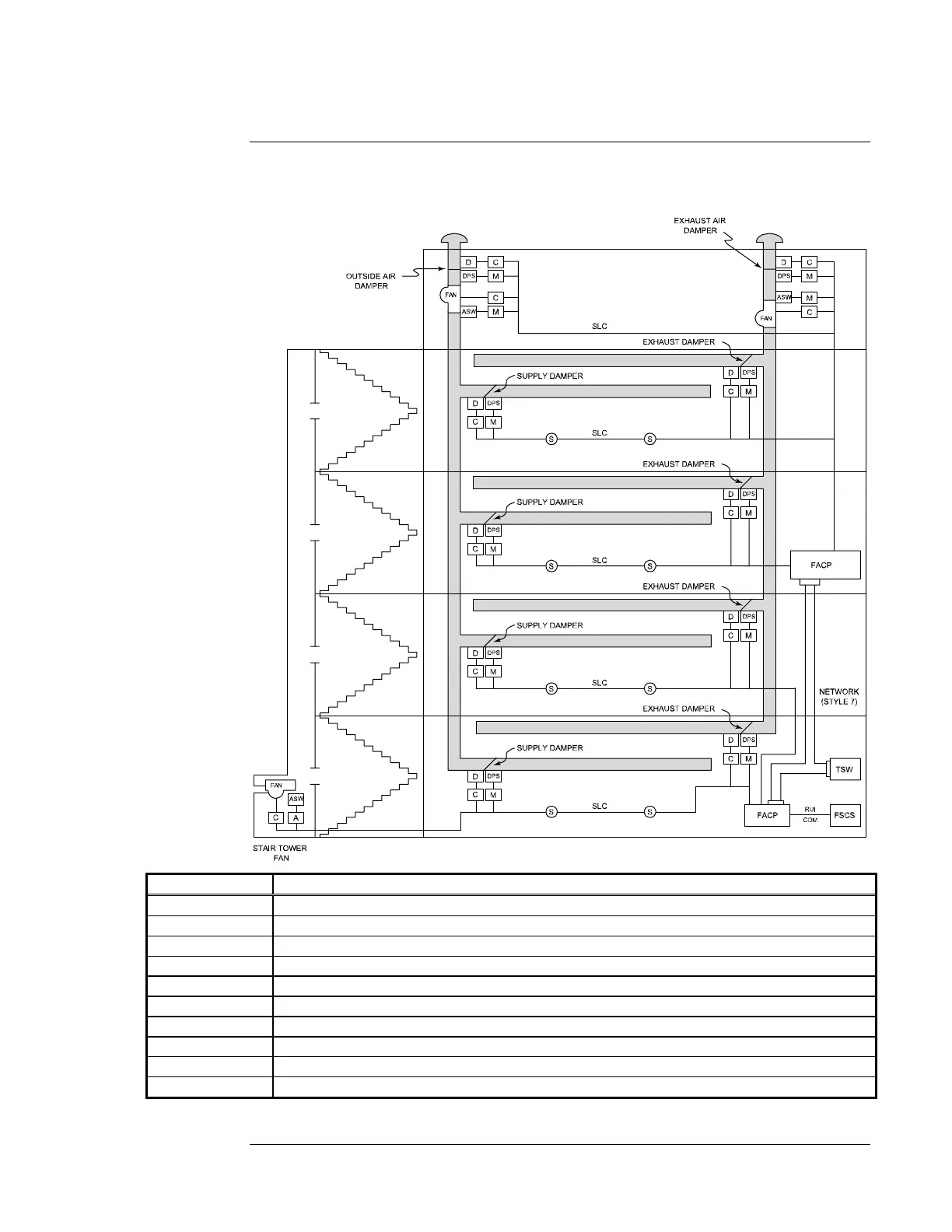

The figure below shows an application diagram for a four-story building. This figure illustrates
how the elements of the Smoke Control System are architecturally related, how they fit within the
overall Simplex Fire Alarm System, and how they relate to the building air handling systems.
Figure Legend Description
FACP Fire Alarm Control Panel (e.g., Model 4100U as described in Chapter 3).
FSCS Firefighter’s Smoke Control Station (as described in Chapter 3).
TSW TrueSite Workstation System (e.g., Model 4190 as described in Chapter 3).
C Relay IAM with Feedback (e.g., Model 4090-9118).
M Supervised IAM (e.g., Model 4090-9001).
D HVAC damper, supply or return (as described in Chapter 3).
DPS Damper position switch (as described in Chapter 3)
FAN Stairtower or elevator shaft pressurization fan.
S Other signaling line circuit devices (e.g., smoke detector, pull station, etc.)
ASW Air flow sensing switch (as described in Chapter 3).
Figure 4-1. Four-Story Building Smoke Control Example
General Smoke Control Interconnections, Continued
Four Story
Building Smoke
Control Example

Simplex 4100U Specifications

General

Control Panel Type	Addressable Fire Alarm Control Panel
Display	LCD
Power Supply	120/240 VAC, 50/60 Hz
Max Signaling Line Circuits (SLC)	2
Operating Temperature	0°C to 49°C (32°F to 120°F)
Humidity Range	10% to 93% non-condensing
Network Capability	Yes
Communication Protocol	RS-232, RS-485
Battery Backup	24 VDC
NAC Outputs	4
Signaling Line Circuits (SLCs)	2
Power Supply Current	3.0 A
Max Notification Appliance Circuits (NAC)	4
Max Releasing Circuits	4
Max Relay Circuits	4
Communication Ports	RS-232, RS-485
