4-7
Dedicated damper control using the 4100-7401 24-Point I/O is similar to control using Relay
IAMs and 6-Point I/O Modules, except that the 4100-7401 module is used for both control and
feedback. This module communicates with the 4100U/4100ES Master over the RUI
communications, and offers the added advantage that all I/O is supervised. The figure below

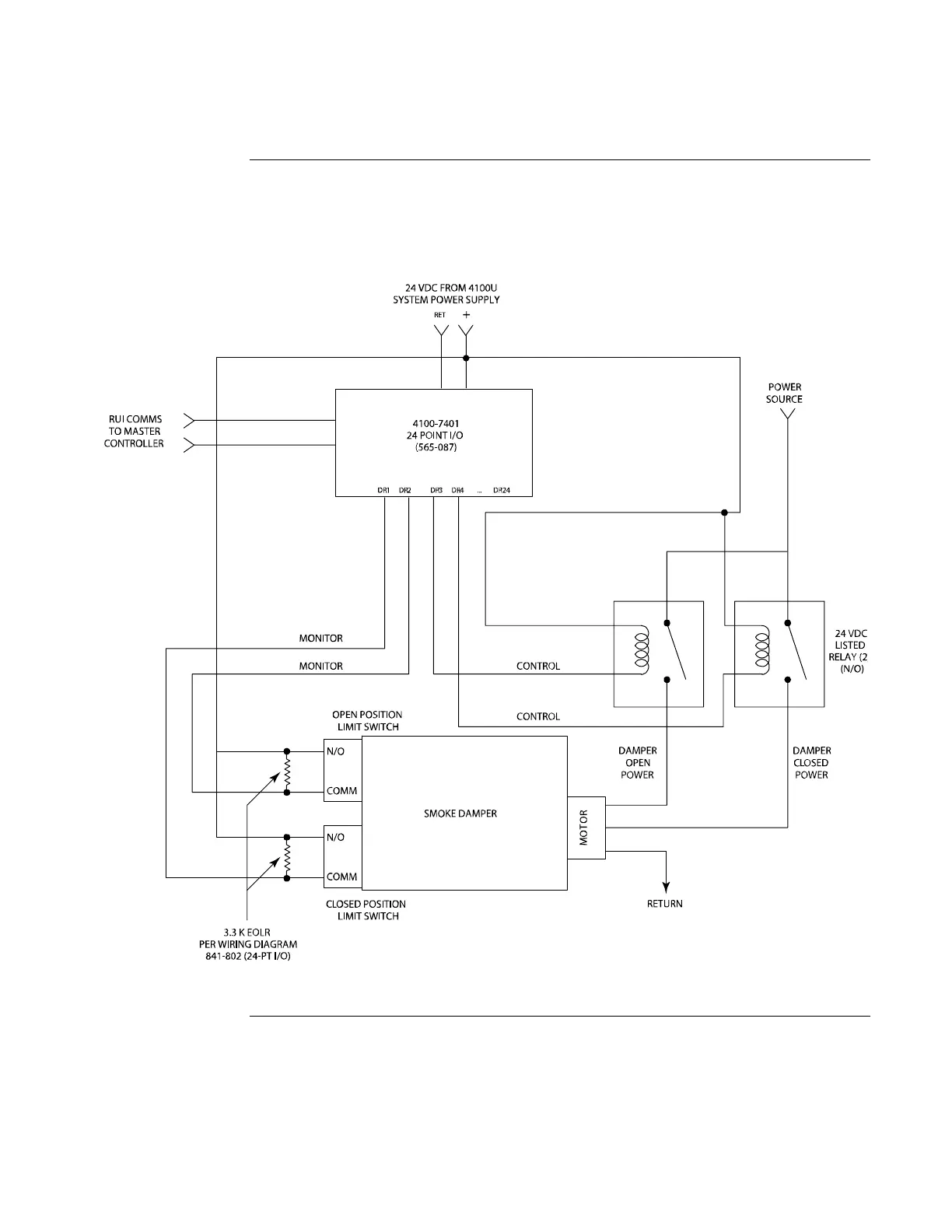

shows dedicated motorized damper control using the 4100-7401 24-Point I/O:
Figure 4-3. Dedicated Motorized Damper Control Using the 24-Point I/O Module
Dedicated Smoke Control System Wiring, Continued
Dedicated
Damper Control
To Next Page
