Installation
20221032B 115
CDI35 Interface
Install the CDI35 Interface as close to the compass as possible
so that it will be easy to find in the event of servicing.
Put the two fixing screws in the slots and secure the unit to the
bulkhead. Open the unit to access the screw terminals.
Connect the cables as shown in Figure 4-45.

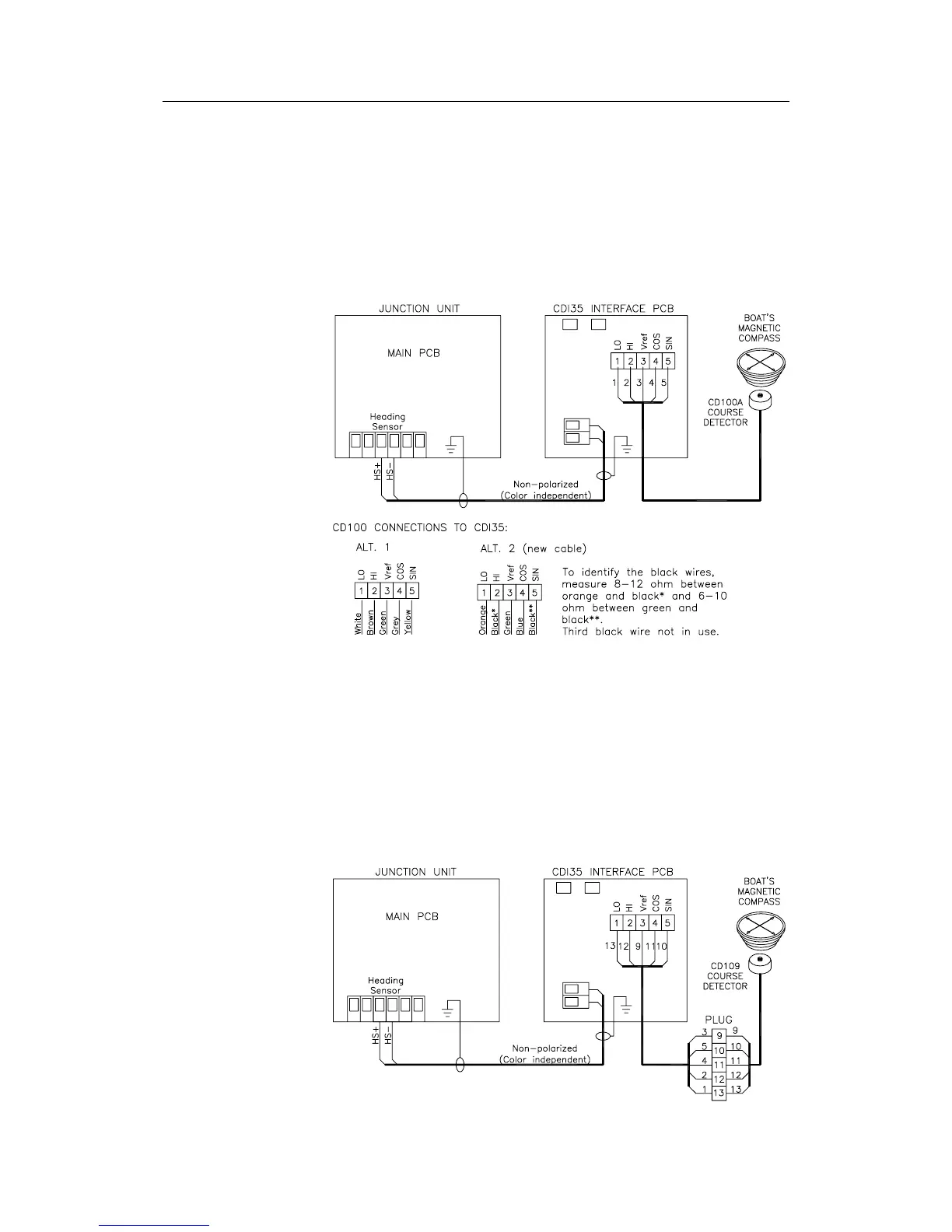

Figure 4-45 CDI35 Interface Connections
Note ! The CD100 is a previous model and its cable has a connector
that must be cut off for connection in the AP50 system (e.g. to
the CI300X or the CDI35).
CD109 Course Detector
For retrofit installations, a CD109 Course detector may be
connected to the CDI35 according to Figure 4-46.
Figure 4-46 CD109 Course detector connections to CDI35 Interface
