3.19 S100 NFU Steering Lever
40 (1,45")
1
2
0
(
4
,
7
5
"
)
Dimensions: ....................................... See Figure 3-15
Weight:.................................................0.5 kg (1.1 lbs.)
Environmental Protection: ............ Not for outdoor use
Safe distance to compass: .....................0.15 m (0.5 ft.)
Temperature range:
Operation:................ –25 to +55°C (–13 to +130°F)
Storage: ................... –30 to +80°C (–22 to +176°F)
Mounting:................................................. Panel-mount
Cable: ................................................ 10 meters (33 ft.)

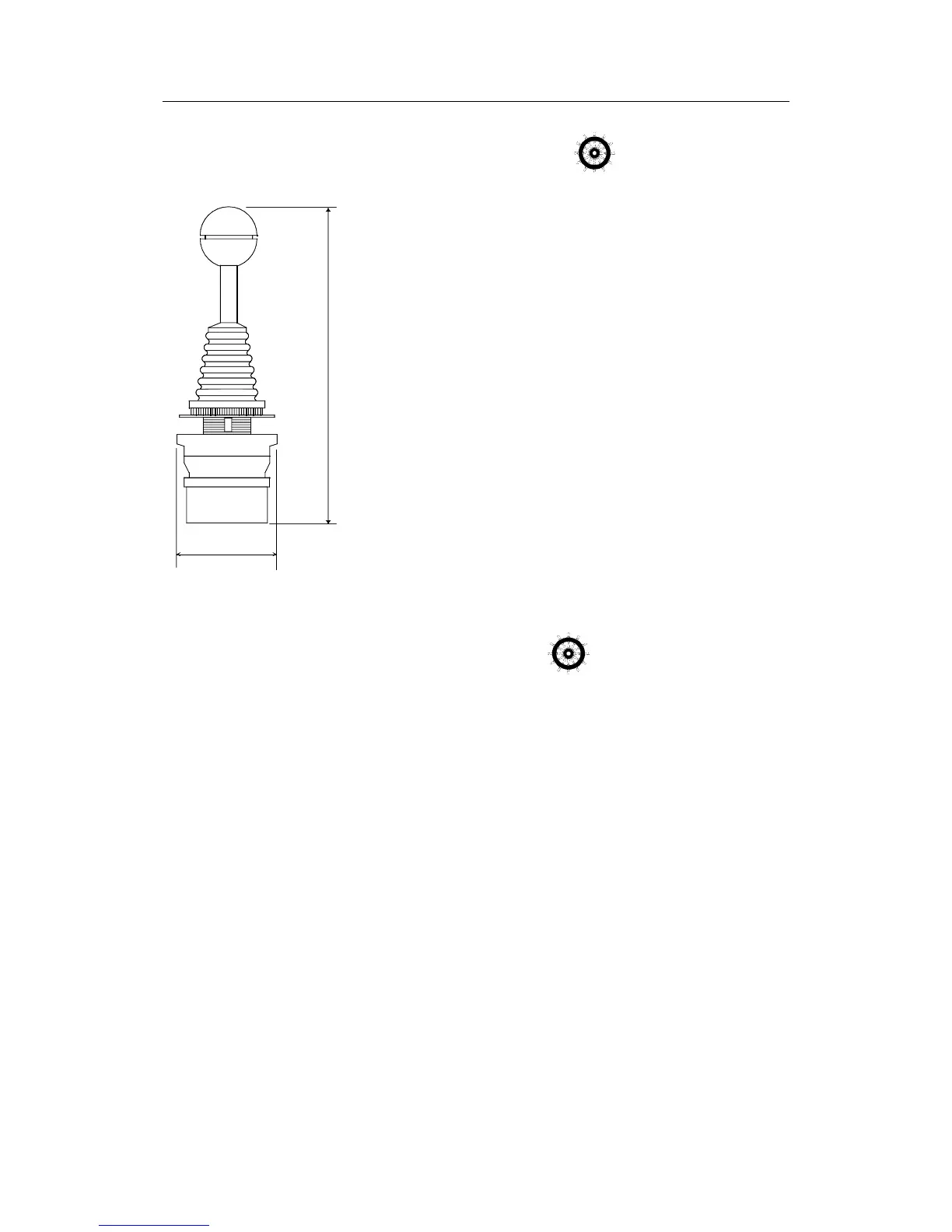

Figure 3-15 S100 NFU Steering Lever Dimensions
3.20 S35 NFU Steering Lever
Dimensions: .............................................................................................. See Figure 3-16
Weight: ............................................................................1.4 kg (3.1 lbs.) including cable
Material:..................................................................................................Polyacetal (POM)
Environmental Protection:........................................................................................... IP56
Power consumption (light): .......................................................................................6 mA
Safe distance to compass:........................................................................... 0.15 m (0.5 ft.)
Temperature:
Operating:................................................................ –25 to +55 °C (–13 to +130 °F)
Storage: ................................................................... –30 to +80 °C (–22 to +176 °F)
Cable:.........................10 m (33 ft.) cable with six wires connected through bottom gland
(cable gland can alternatively be mounted on back cover; see Figure 3-16)
Max. inductive load:............................... 4A/24 VDC, 60mA/110 VAC, 25mA/220 VAC
