3.2 AP50 Control Unit
Dimensions:................................................................................................. See Figure 3-1
Weight: ...................................................................................................... 0.9 kg (2.0 lbs.)
Material:........................................................................................Epoxy coated aluminum
Supply:..................................................................... 12-32 VDC –10%/+30% via RobNet
Power consumption: .....................................................................................................3 W
Environmental Protection:......................................................IP56 (when panel-mounted)
Safe distance to compass:........................................................................... 0.35 m (1.0 ft.)
Color:......................................................................................................................... Black
Temperature:
Operating: ............................................................... –25 to +55°C (–13 to +130°F)
Storage: ................................................................... –30 to +80°C (–22 to +176°F)
Display:
Type: ........................................................................................Backlit LCD matrix
Resolution:.................................................................................... 160 x 128 pixels
Illumination: ..................................................................................Adjustable in 10 grades
Mounting: .......................................................... Panel mount or bracket mount (optional)
Cable:............................................... RobNet cable 15 m (49 ft.) with one male connector

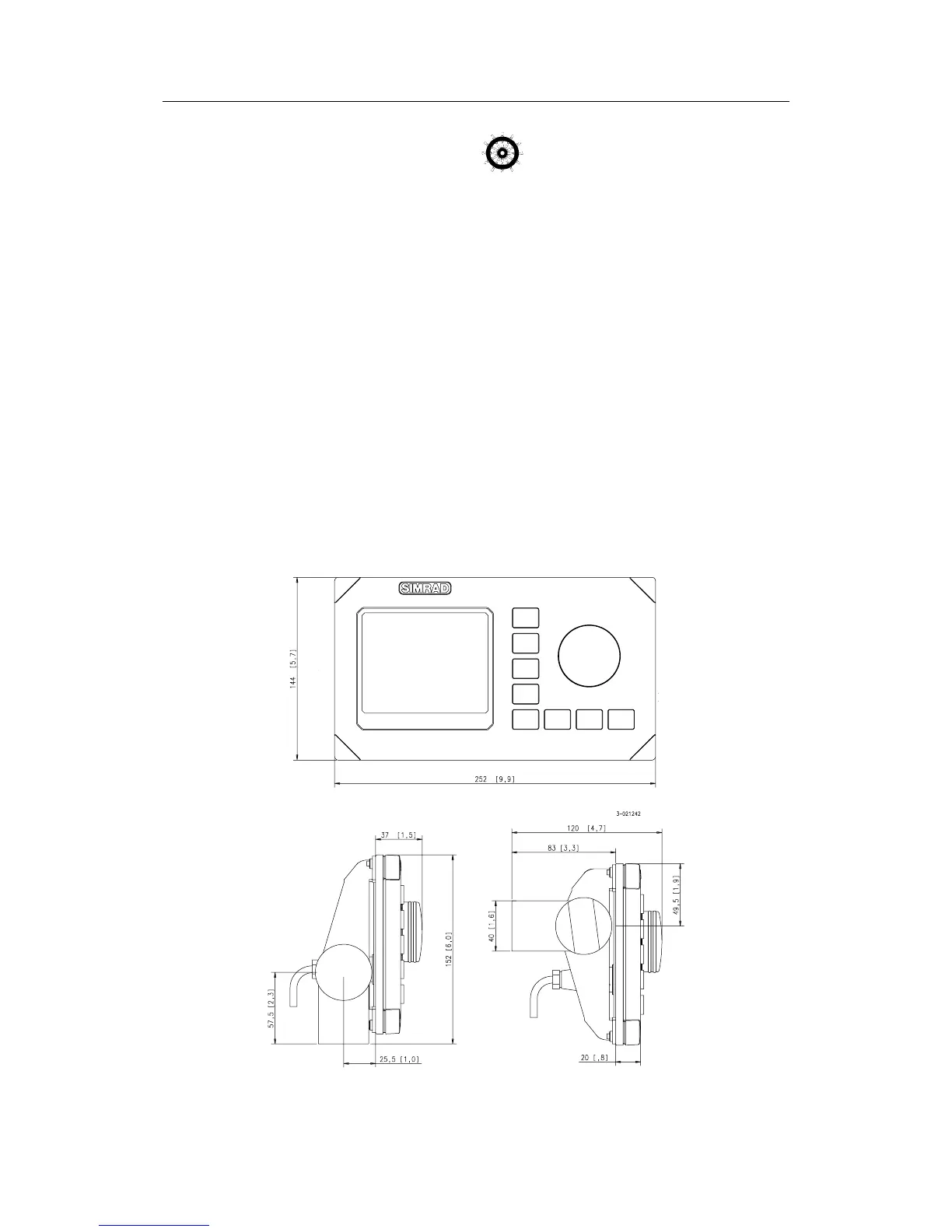

Figure 3-1 AP50 Control Unit Dimensions

Simrad AP50 Specifications

General

Brand	Simrad
Model	AP50
Category	Autopilot System
Language	English
