Simrad AP50 User Manual

Simrad AP50 Autopilot
66 20221032B

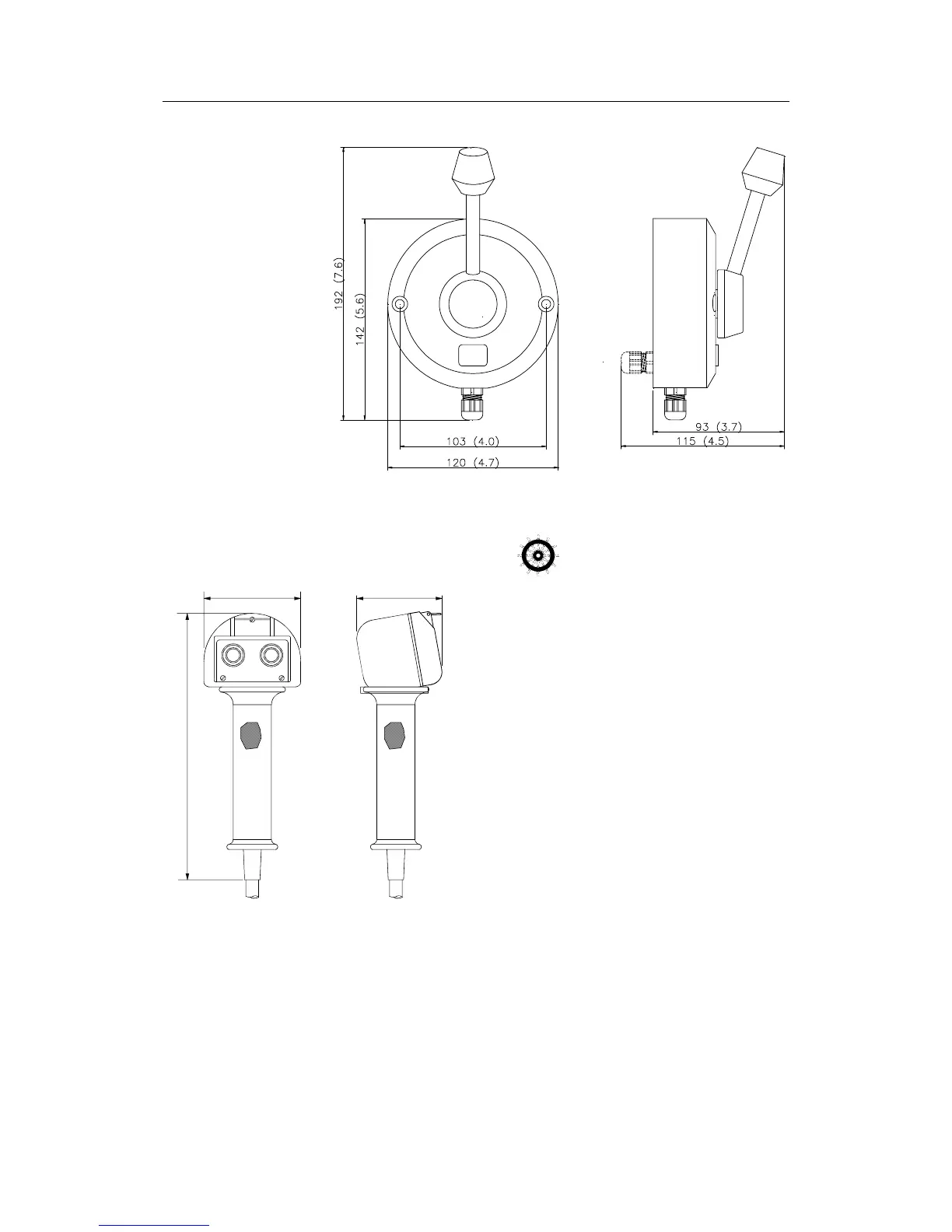

Figure 3-16 S35 NFU Steering Lever Dimensions
3.21 F1/2 Remote Control
65 (2.6")
210 (8.3")
76 (3.0")
Dimensions:...................... See Figure 3-17
Weight: ............1.2 kg (2.6 lbs.) incl. cable
Material: ....................... Painted aluminum
Environmental Protection:.................. IP56
Safe distance to compass:.... 0.1 m (0.3 ft.)
Max. inductive load: ............. 4A/24 VDC,
60mA/110 VAC,
25mA/220 VAC.
Temperature range:
Operating: .......................... –25 to +55°C
(–13 to +130°F)
Storage:.............................. –30 to +80°C
(–22 to +176°F)
Cable: .................................... 10 m (33 ft.)
Figure 3-17 F1/2 Remote Control Dimensions
