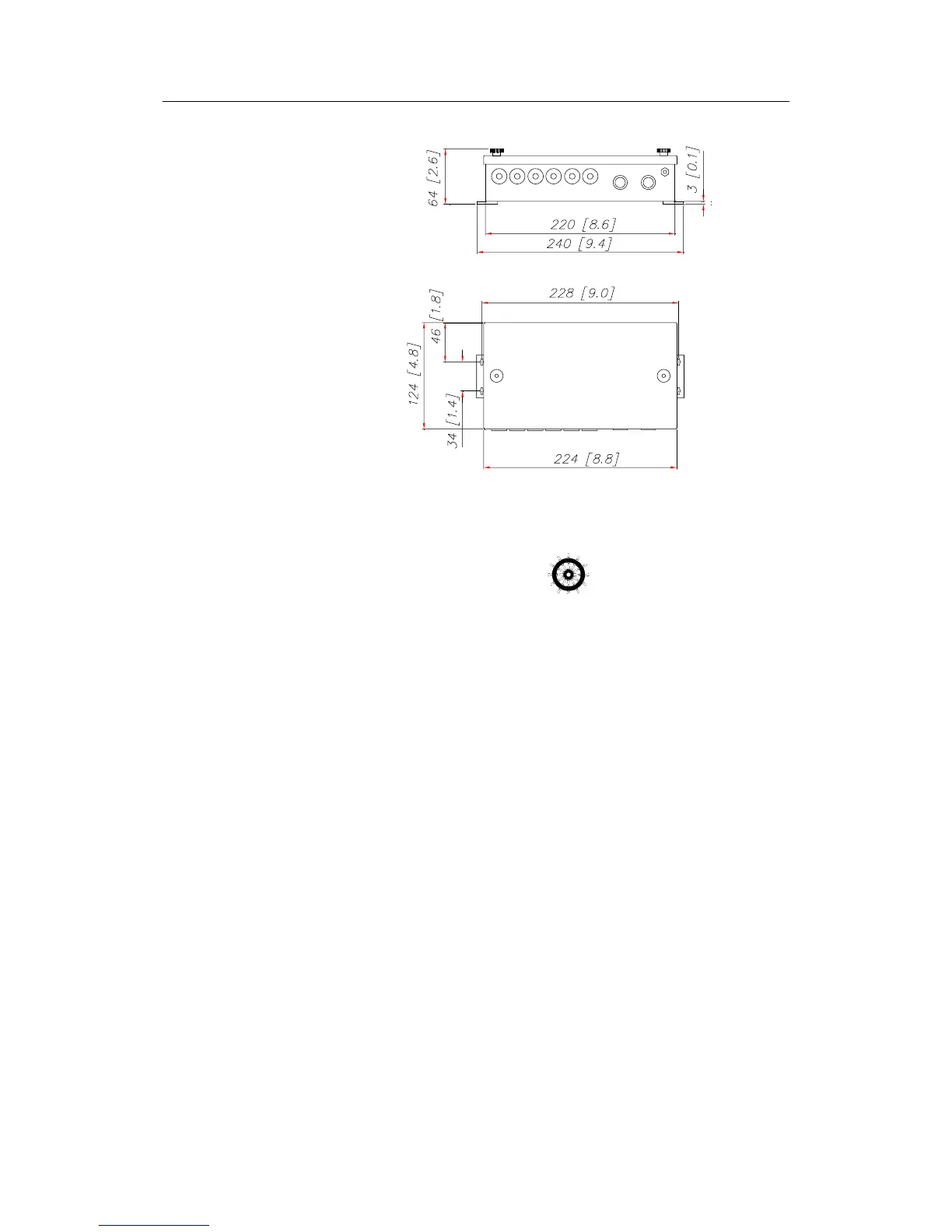

Figure 3-13 CI300X Compass Interface and NI300X NMEA
Interface Dimensions
3.15 NI300X NMEA Interface
Dimensions:............................................................................................... See Figure 3-13
Weight: ...................................................................................................... 0.9 kg (2.0 lbs.)
Material:...................................................................................... Epoxy coated aluminium
Environmental Protection:........................................................................................... IP44
Supply and interface:........................................................................RobNet, 2 connectors
Power consumption: .....................................................................................................3 W
Safe distance to magnetic compass: ................................................................ 0.3 m (1 ft.)
Temperature range:
Operation: .............................................................. –25 to +55°C (–13 to +130°F)
Storage: ................................................................... –30 to +80°C (–22 to +176°F)
Mounting: ................................................................................................. Bulkhead mount
Cable inlets: ..................................................Rubber glands for cable diameter 10-14 mm
NMEA183 input/output:..................................................4 ports, max. output load 20 mA
Heading output: .... Simrad (Anritsu) and Furuno radar display (clock/data; 0-5V, 10mA,
50 msec.)
NMEA instrument supply:................................................................. 12 VDC, max 0.25A
External alarm: ..................................................................................Potential free contact
