Simrad AP50 Autopilot
60 20221032B

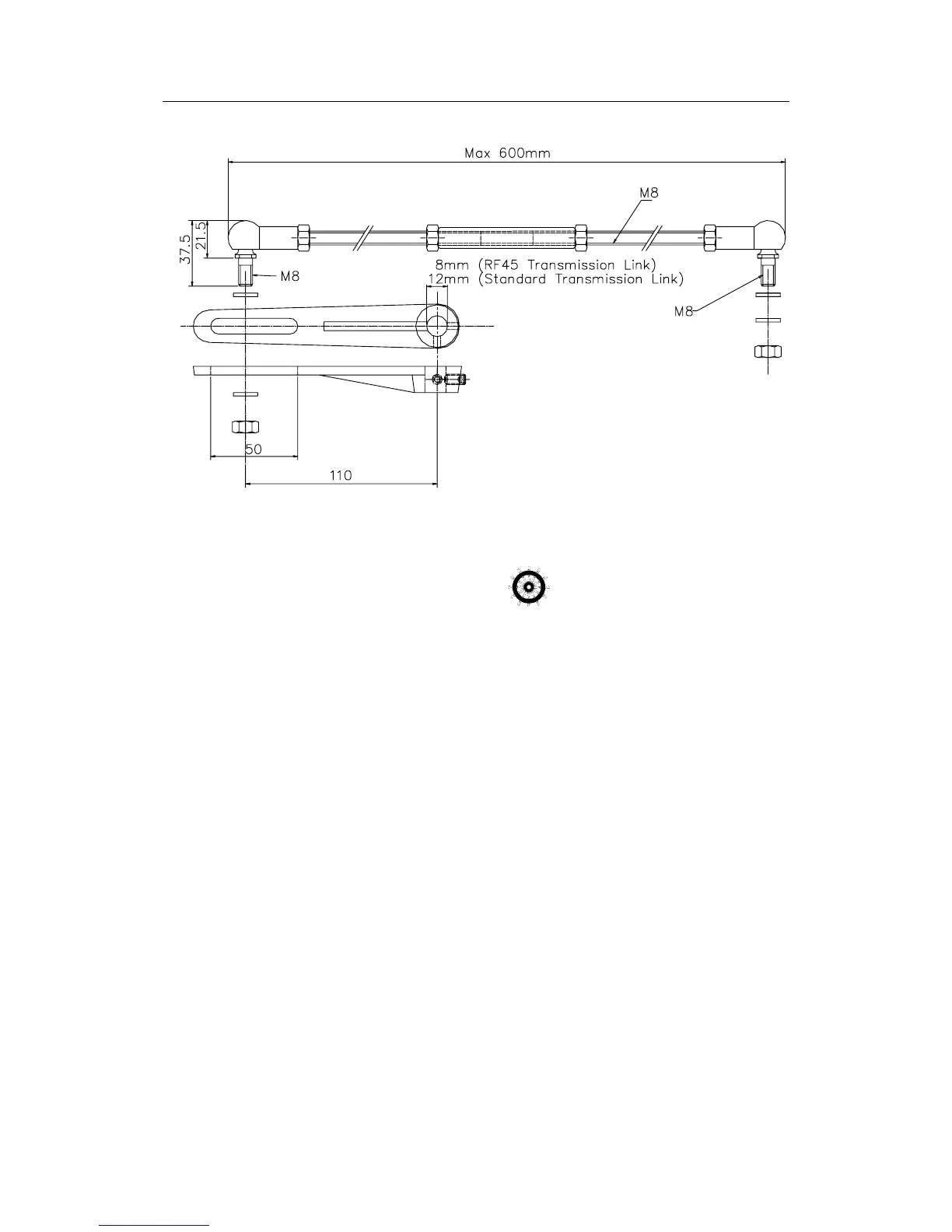

Figure 3-11
RF Standard Transmission Link - dimensions
3.13 GI50 Gyro Interface
Dimensions:............................................................................................... See Figure 3-12
Weight: ...................................................................................................... 0.7 kg (1.5 lbs.)
Material:........................................................................................Epoxy coated aluminum
Environmental Protection:........................................................................................... IP44
Supply voltage:...................................................................................................... 12 VDC
Power consumption: ..................................................................................................2.4 W
Load:....................................................................................................... Maximum 20 mA
Safe distance to magnetic compass: ........................................................... 0.15 m (0.5 ft.)
Temperature range:
Operation: ............................................................ –25 to +55 °C (–13 to +130 °F)
Storage: ................................................................. –30 to +80 °C (–22 to +176 °F)
Mounting: ................................................................................................. Bulkhead mount
Signals in: .................................. 6 step/degree, 20-70V DC positive or negative common
Synchro signal, 90:1 or 360:1, gyro excited, 40-115V, 50-400Hz
Speed log potential free relay contact (200 pulses/NM)
Speed log signal:....................................Relay contact normally closed or normally open.
Output signal: ..............................................NMEA 183, 10 Hz, $PSVHW,x.x,T,,,y.y,N,,
x.x = heading, y.y = speed.
