Simrad AP50 User Manual

Simrad AP50 Autopilot
114 20221032B
CD109 Course Detector
For retrofit installations a CD109 Course detector may be
connected to the CI300X according to Figure 4-43:
Vref
SIN
HI
LO
COS
MAGN. COMP
MAGNETIC COMPASS
WITH CD109 COURSE
DETECTOR
TB1
10
13
12
11
9
SIN
COS
Vref
HI
LO
9
10
11
12
13
9
10
11
12
13
PLUG

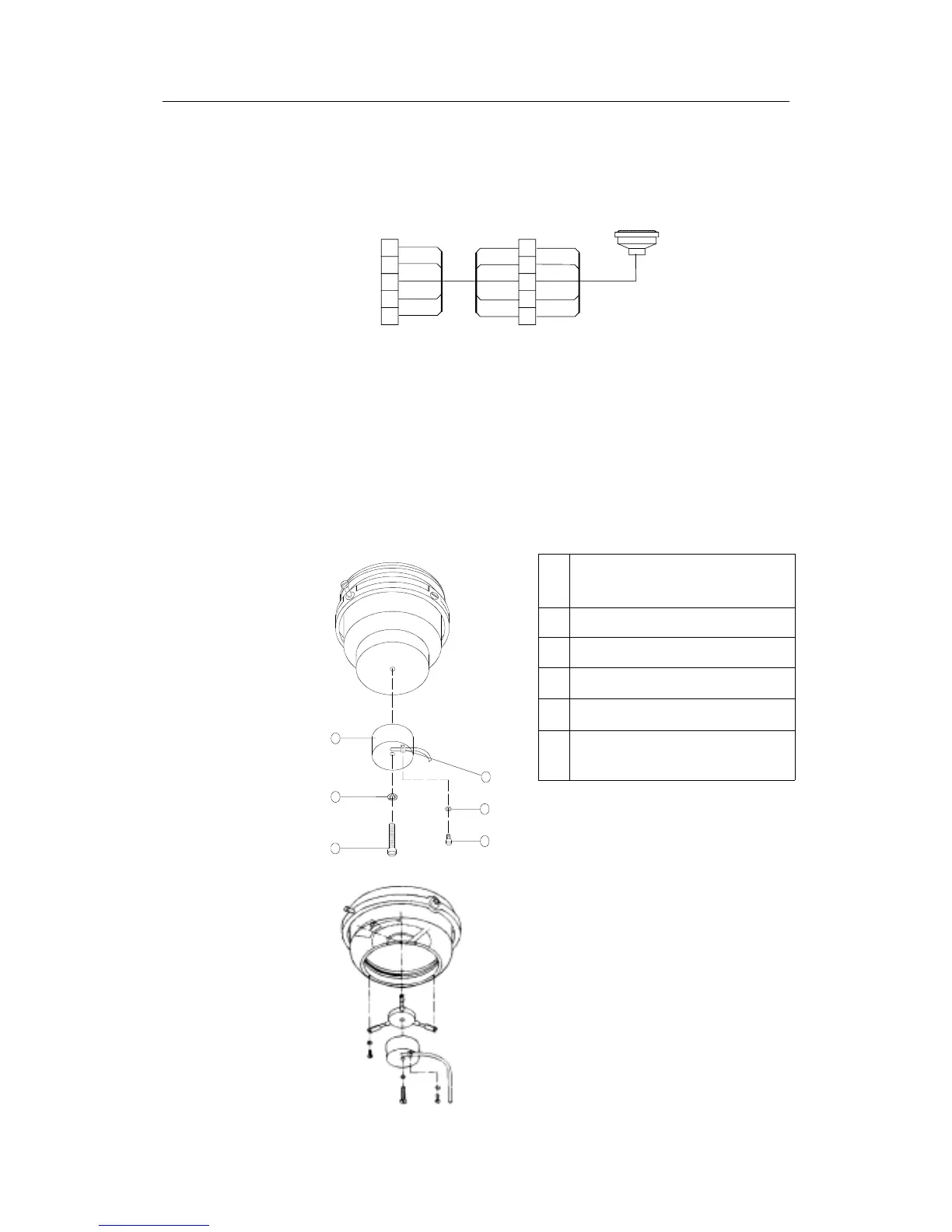

Figure 4-43 CD109 connections to CI300X
CD100A Course Detector
The owner may prefer to use the boat’s own compass. The
compass must be fully gimbaled and have a flat surface
underneath to fit the CD100A. Make a hole for a 6 mm screw in
the bottom of the compass and mount the CD100A as shown in
Figure 4-44. Secure the 6 mm screw through the center hole of
the CD100A. Make sure the cable does not prevent the compass
from moving freely in the gimbals.
1 Screw M6x25mm, non
magnetic
2 Washer, non magnetic
3 Course detector
4 Cable clamp, nylon
5 Washer, non magnetic
6 Screw M3x10mm, non
magnetic
3
2
1
4
5
6
Note!
Lock nut on mounting screw (pos.
1) for transportation only. To be
removed before mounting.
When the course detector is
mounted on a reflector compass,
use the tripod holder (ref. to
Figure 3-6 on page 55).
Figure 4-44 CD100A Course Detector Mounting
