Simrad AP50 Autopilot
58 20221032B
3.11 RF45X Rudder Feedback Unit
Dimensions:...................................................See Figure 3-9, Figure 3-11 and Figure 4-4
Weight: ...................................................................................................... 1,0 kg (2,2 lbs.)
Material: .................................................................................................Polyacetal (POM)
Supply voltage:................................................ 12-24 VDC –10%/+30%, system supplied
Environmental Protection:........................................................................................... IP56
Temperature range:
Operation: ............................................................... –25 to +55°C (–13 to +130°F)
Storage: .................................................................. –30 to +80°C (–22 to + 176°F)
Cable:.................................................................................................................. 2 m (6 ft.)
Rudder angle:..............................................................................................................± 45°
Output signal: .........................................................Polarity-independent frequency signal
Frequency resolution: ........................... Center: 3400 Hz, 20 Hz/degree of change
Linearity:........................................................................... ± 3° up to 45° of rudder
Current output for rudder angle indicator (only for stand-alone system).. 0.1mA - 1.1mA
Number of indicators (only for stand-alone system):......................................... 5 in series

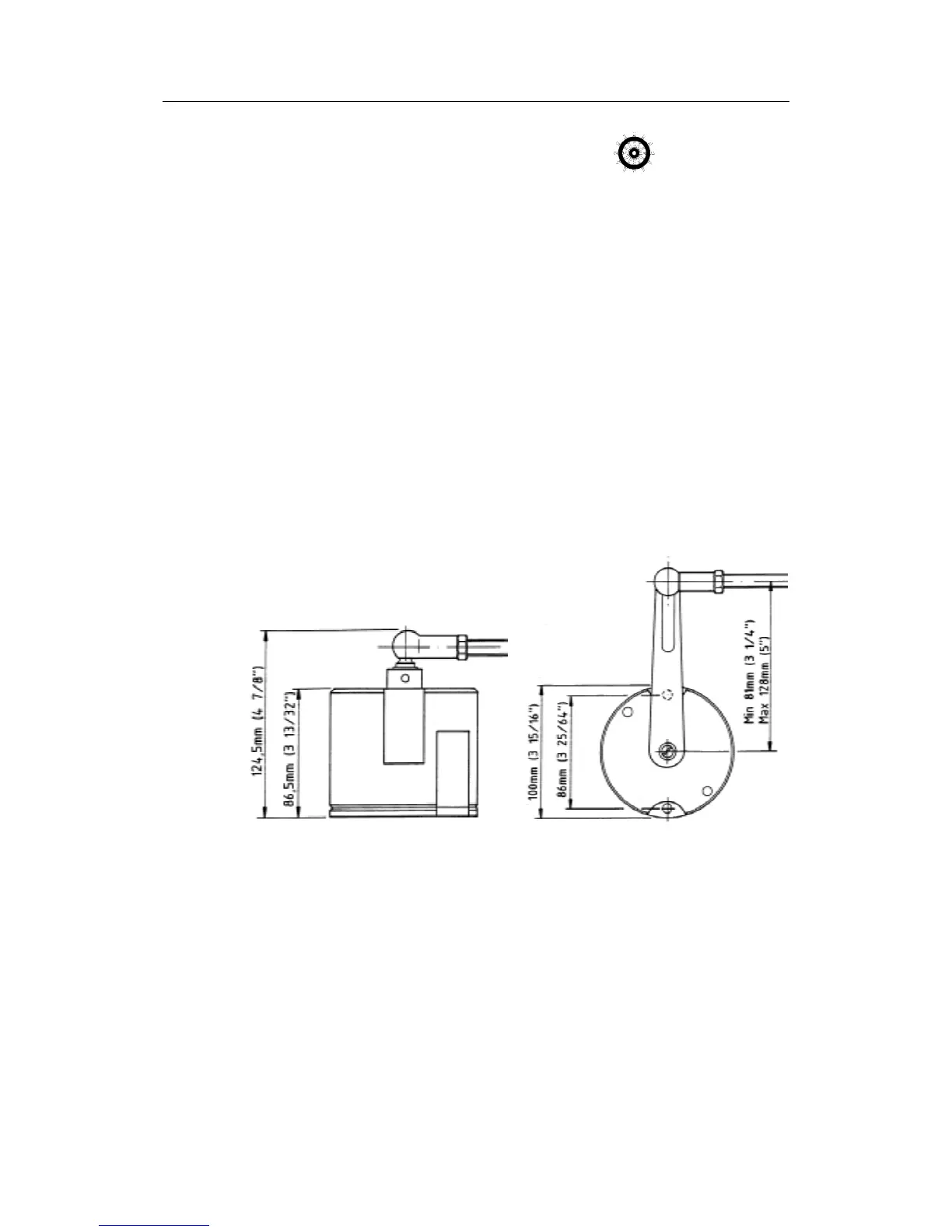

Figure 3-9 RF45X Rudder Feedback Unit Dimensions
