Simrad AP50 Autopilot
64 20221032B
Rudder drive interface:
Danfoss PVEM:................... Nominal UDC=12/24V, I=0.25/0.5mA, neutral 0.5*Un,
control range 0.25*UDC to 0.75*UDC,
valve saturated for<0.25*UDC or >0.75*UDC.
Analog control, internal supply: ...Control range±10V, max. 5 mA, galvanic isolated
Analog control, external supply: ............... UDC 12-24VDC, control range 0- UDC or
±UDC/2, max. 5 mA
ON/Off valve:...............................Port/stbd on/off, open collector, galvanic isolated,
external common plus or minus, 3A max.
Rudder enable output: .............. Open collector, external or internal +, max 500 mA.
The internal +12V output is limited to 100mA
and may be used for an external relay operated by Hi/Lo output
to switch rudder control signal between autopilot
and external manual control.
3.18 R3000X Remote Control
pfjo^a=oPMMMu
STBY AUTO
Dimensions:.................................See Figure 3-14
Weight: ......................................... 0.4 kg (0.9 lbs.)
Material: .........................Epoxy-coated aluminum
Environmental Protection...............................IP56
Safe distance to compass:.............. 0.15 m (0.5 ft.)
Temperature range:
Operating: ...........–25 to +55°C (–13 to +130°F)
Storage:...............–30 to +80°C (–22 to +176°F)
Cable:....................................7 m (23 ft.), shielded
Mounting bracket: ................................... Supplied

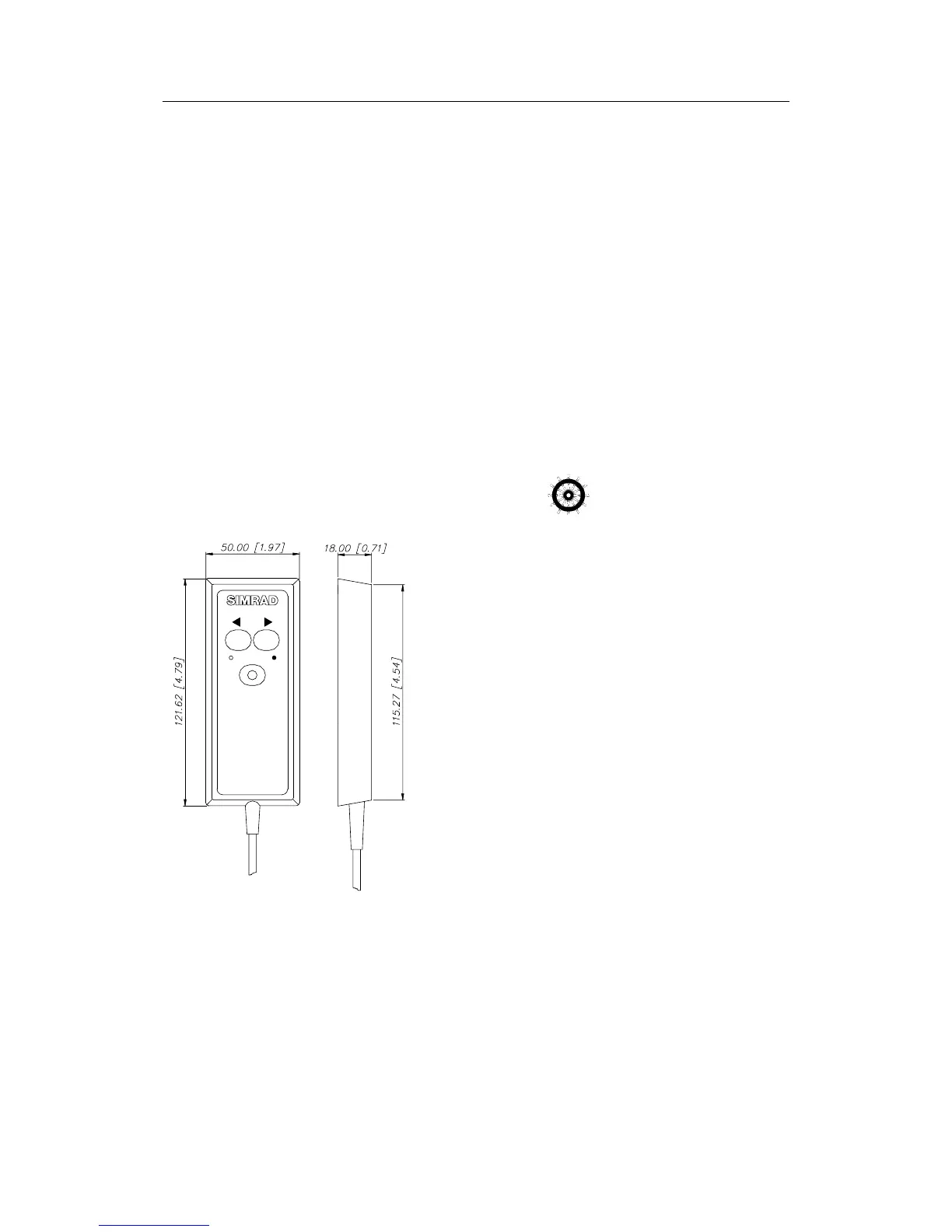

Figure 3-14 R3000X Remote Dimensions
