Introduction

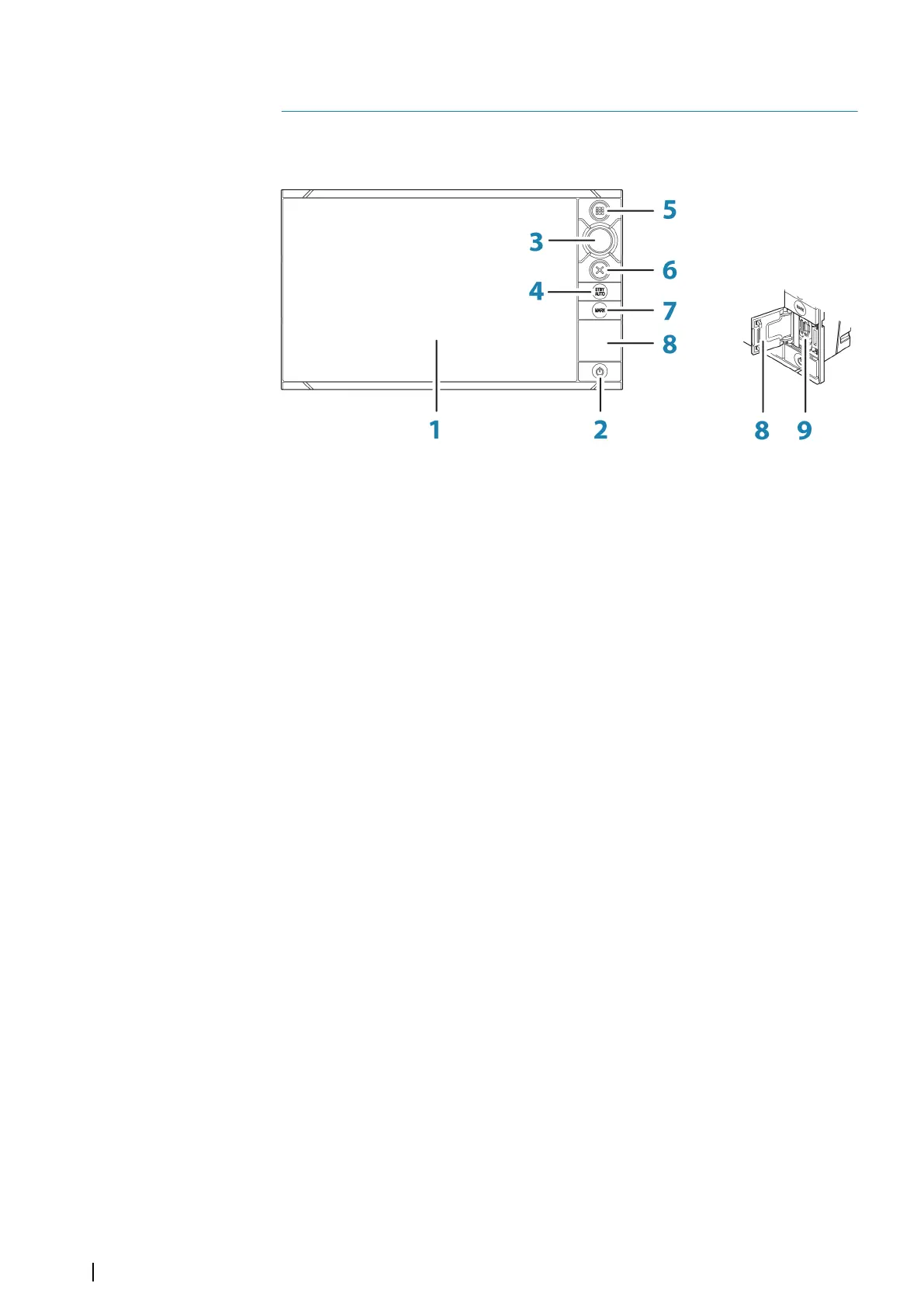

The front panel and keys
1 Touch screen
2 Power key
Press once to display the System controls dialog.
Repeat short presses to cycle the backlight brightness.
Press and hold to turn the unit ON/OFF.
3 Rotary knob
Rotate to scroll through menu items, then press to confirm a selection.
Rotate to adjust a value.
Rotate to zoom a zoomable panel.
4 STBY / AUTO key
With the autopilot in any automatic mode: Press to set the autopilot to Standby
mode.
With the autopilot in Standby mode: Press to display the autopilot mode selection
pop-up.
5 Home key
Press once to activate the Home page. Repeat short presses to cycle the favorite
buttons.
Press and hold to display the Favorite panel as an overlay on active page. Repeat
short presses to cycle the favorite buttons.
6 X key
Press once to exit a dialog, to return to previous menu level and to remove the
cursor from the panel.
7 MARK key
With cursor active on the panel: Press to immediately save a waypoint at cursor
position.
With no active cursor: Press to immediately save a waypoint at vessel position.
Press and hold to display the Plot menu used for saving new waypoints, routes and
tracks.
8 Card reader door
9 Micro-SD Card readers
Ú
Note: The MARK key is not available on 7" units.
1
10
Introduction | NSS evo2 Operator Manual
