You can also start the measuring function without an active cursor. Both measuring icons are

then initially located at the vessel position. The grey icon follows the vessel as the vessel

moves, while the blue icon remains at the position given when you activated the function.

You terminate the measuring function by selecting the Finish measuring option or by

pressing the X key.

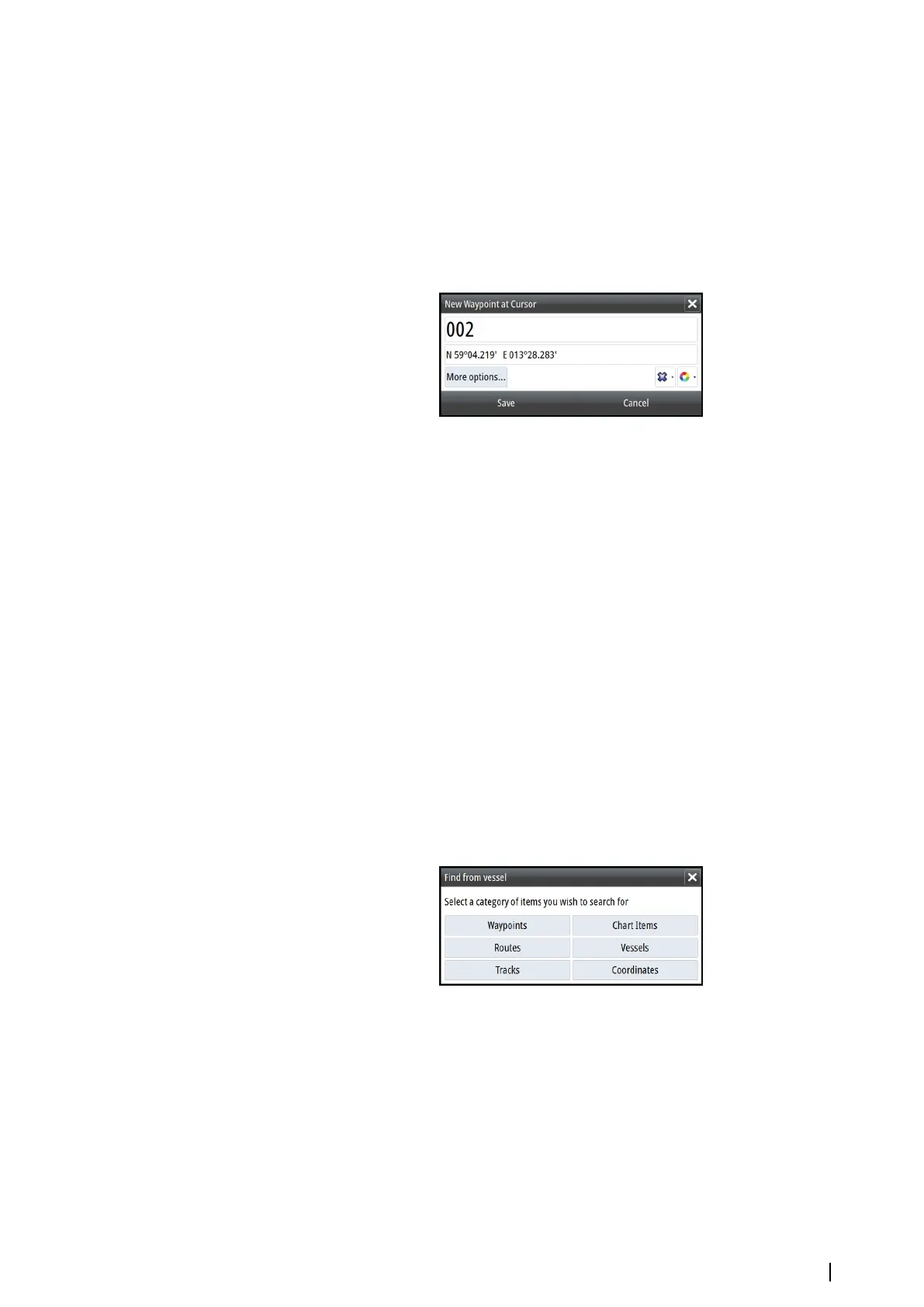

Saving waypoints

You can save a waypoint at a selected location by positioning the cursor on the panel, and

then selecting the new waypoint option in the menu.

In the Chart and Nav panels, you can save a waypoint at the vessel position, when the cursor

is not active, by selecting the new waypoint option in the menu.

If your unit has a MARK key, you can press this key to immediately save a waypoint. If the

cursor is active, the waypoint is saved at the cursor position. If the cursor is not active, the

waypoint is saved at your vessel's position.

Creating routes

You can create routes as follows on the chart panel.

1. Position the cursor on the chart panel

2. Select New followed by New route in the menu

3. Tap the chart panel to position the first routepoint

4. Continue positioning the remaining routepoints

5. Save the route by selecting the save option in the menu.

Note: For more information, refer to "Waypoints, Routes, and Tracks" on page 37.

Find objects on chart panels

You can search for other vessels or various chart items from a chart panel.

Activate the cursor on the panel to search from the cursor position. If the cursor is not active,

the system searches for items from the vessel's position.

Note: You must have a SIRIUS data package subscription to search for fueling stations

and an AIS receiver connected to search for vessels.

3D charts

The 3D option provides a three dimensional graphical view of land and sea contours.

Note: All chart types work in 3D mode, but without 3D cartography for the appropriate

area the chart appears flat.

When the 3D chart option is selected, the Pan and the Rotate icons appear on the chart

panel.
