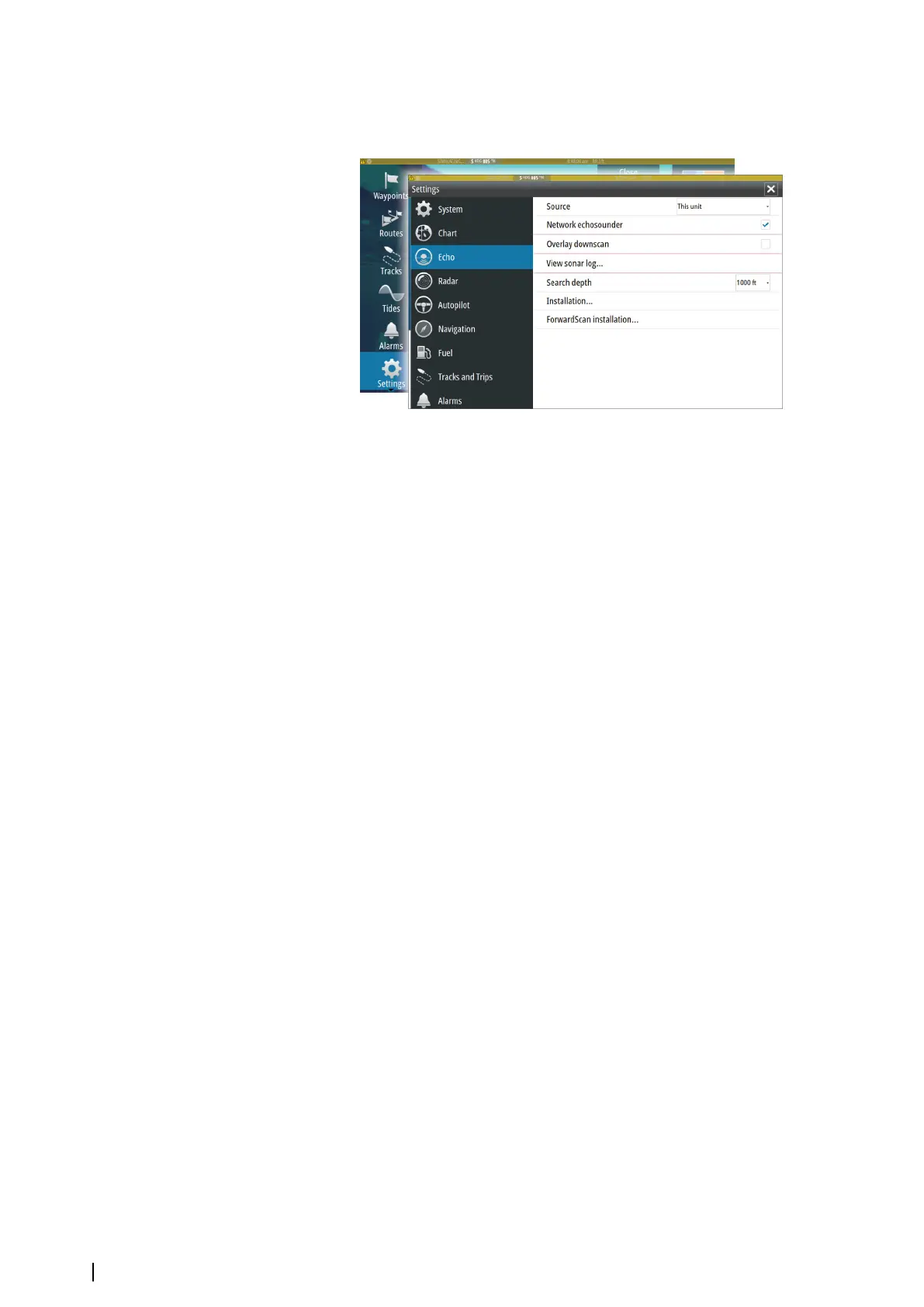

Echosounder settings
Echosounder source
If you have Network Echosounder enabled and have more than one Echosounder on your
network, you can select which Echosounder to be the preferred source on this unit.
Network Echosounder
You can share the Echosounder images from this unit with other units connected on the
Ethernet network.
For more information about how to setup Echosounder, refer to the separate NSS evo2
Installation manual.
Overlay downscan
When a DownScan source is connected to your system, you can overlay DownScan images
on the regular Echosounder image.
When activated, the Echosounder menu expands to include basic DownScan options.
View Echosounder log
Used to view Echosounder recordings. The log file is displayed as a paused image, and you
control the scrolling and display from the menu.
You can use the cursor on the image, measure distance, and set view options as on a live
Echosounder image. If more than one channel was recorded in the selected Echosounder
file, you can select which channel to display.
You exit the view function by selecting the X in the upper right corner.
Search depth
Noise may cause the Echosounder to search for unrealistic depths.
By setting the search depth manually the system displays echoes received from objects
within the set depth range.
Installation
Used for installation and setup. See the separate NSS evo2 Installation manual.
ForwardScan Installation
Used for ForwardScan installation and setup. Refer to the "ForwardScan setup" on page 92.
