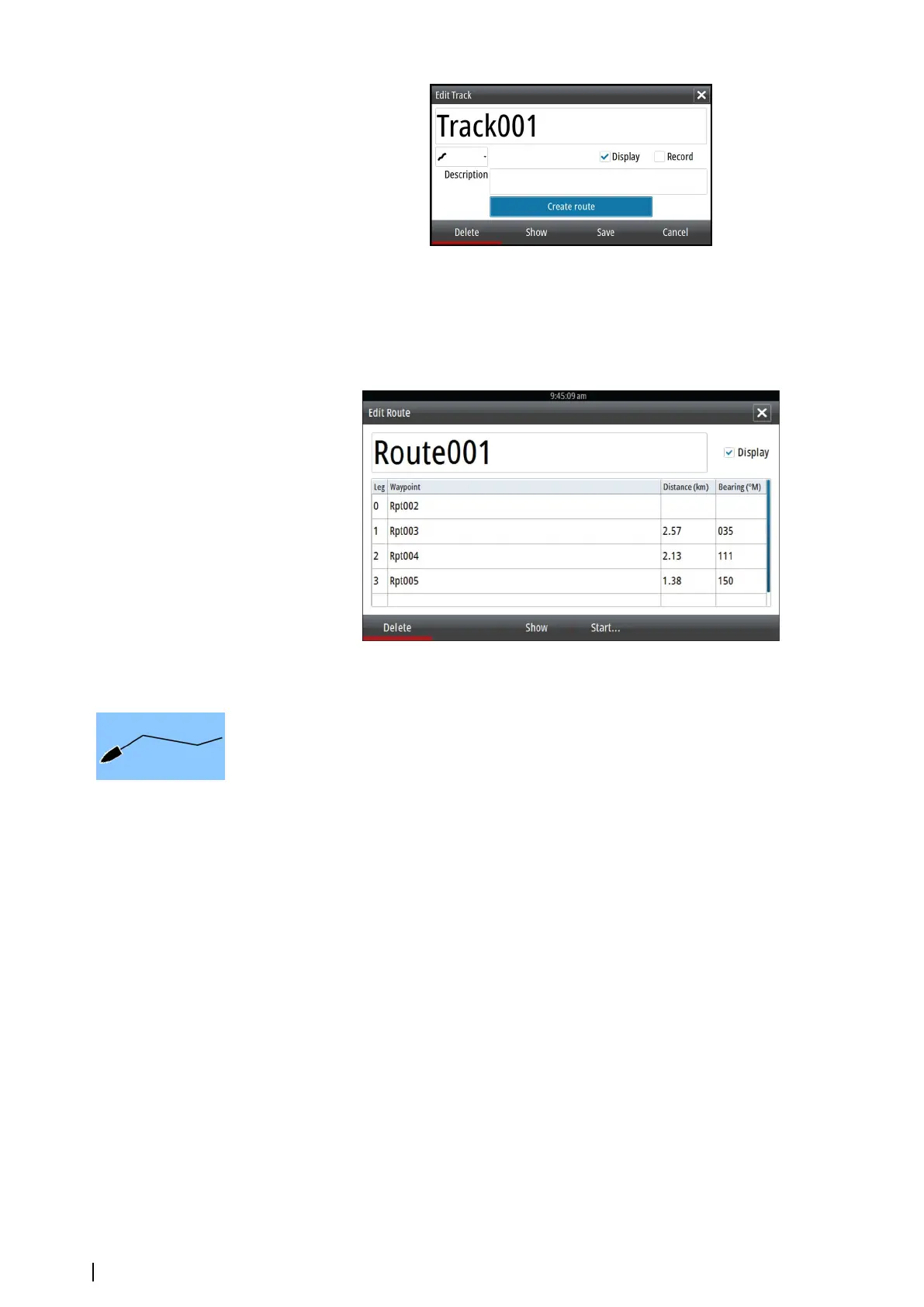

The Edit Route dialog
You can add and remove routepoints from the Edit Route dialog. This dialog is activated by
selecting an active route's pop-up, by pressing the rotary knob, or from the menu.
The dialog can also be accessed by using the Routes tool on the Home page.
Tracks
Tracks are a graphical presentation of the historical path of the vessel, allowing you to retrace
where you have travelled. Tracks can be converted to routes from the Edit dialog.
From the factory, the system is set to automatically track and draw the vessel's movement on
the chart panel. The system continues to record the Tracks until the length reaches the
maximum points, and then automatically begins overwriting the oldest points.
The automatic tracking function can be turned off from the Tracks dialog.
Creating new Tracks
You can start a new track from the Tracks dialog, activated by using the Tracks tool on the
Home page.
Tracks settings
Tracks are made up of a series of points connected by line segments whose length depends
on the frequency of the recording.
You can select to position track points based on time settings, distance, or by letting the
system position a waypoint automatically when a course change is registered.
Ú
Note: The Tracks option must also be turned ON in the chart settings to be visible.
40
Waypoints, Routes, and Tracks | NSS evo2 Operator Manual
