Application pages
Each application connected to the system is presented on panels. The application can be
presented as a full page, or in combination with other panels in a multiple panel page.
All application pages are accessed from the Home page.

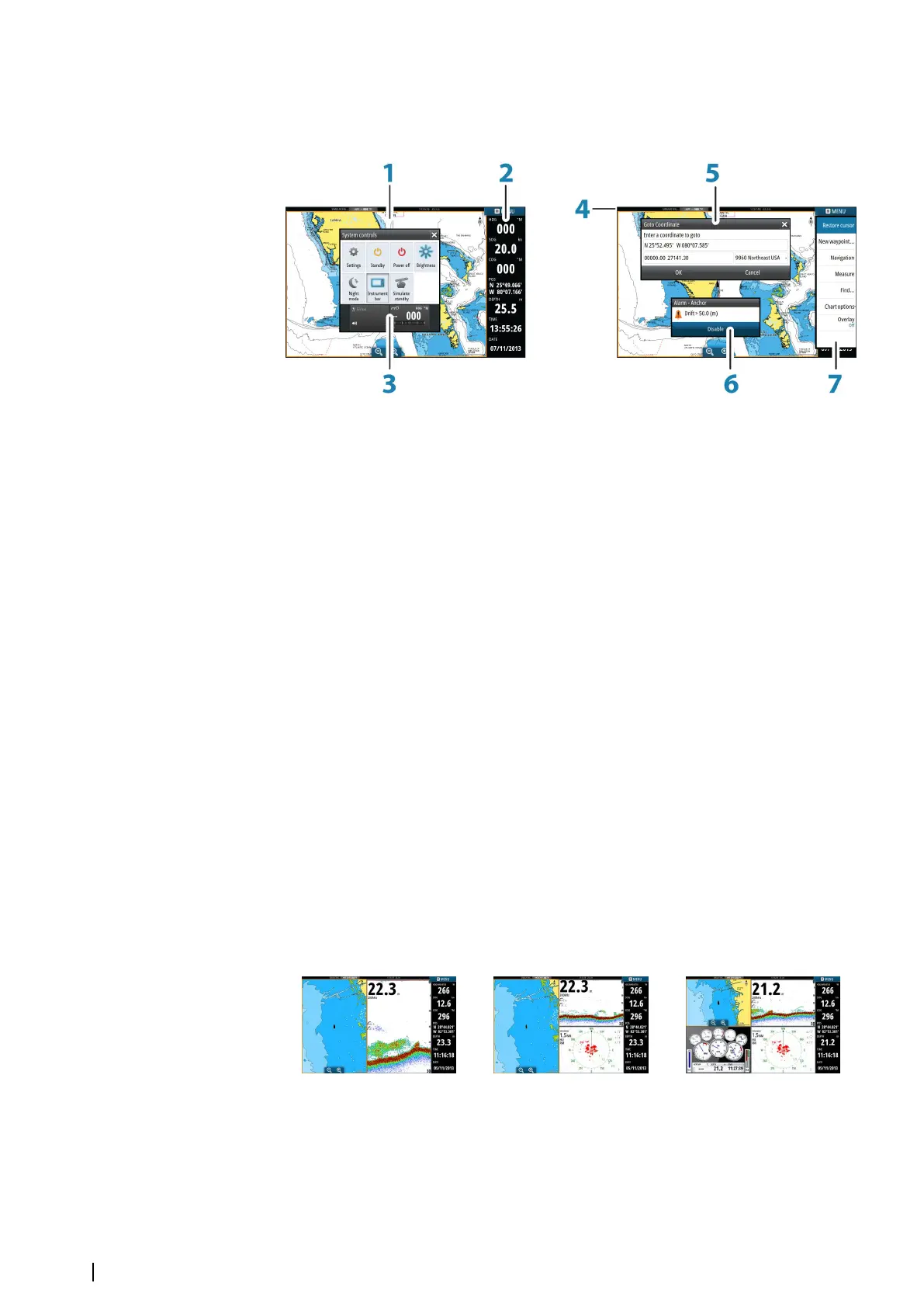

1 Application panel
2 Instrument bar
Navigation and sensor information. The bar can be turned off and it can be
configured by the user.
3 System controls dialog
Quick access to basic system settings.
Display the dialog by a short press on the Power key or by swiping down from top
of the screen.
4 Status bar
5 Dialog
Information to or input from the user.
6 Alarm message
Displayed if dangerous situations or system faults occur.
7 Menu
Panel specific menu.
Display the menu by selecting the MENU panel button.
Split pages
You can have several panels on one page depending on screen size:
• 7" units: 2 panels
• 9",12" and 16" units: 4 panels
2 panels page 3 panels page 4 panels page
Panel sizes in a split page can be adjusted from the System Controls dialog.
Ú
Note: Mercury features, if enabled, do not allow split pages.
