Echosounder
The Echosounder function provides a view of the water and bottom beneath your vessel,
allowing you to detect fish and examine the structure of the sea floor.
All NSS evo2 units - except for mapping units - have built in CHIRP echosounder and
StructureScan. NSS evo2 mapping units must have a compatible external echosounder
module, or another NSS evo2 with built-in CHIRP echosounder and StructureScan, available
on the network to be able to use echosounder functionality.
Note that StructureScan and CHIRP cannot be operated simultaneously on NSS evo2 units
with built-in echosounder functionality. If simultaneous operation is desired, an external
module such as SonarHub, BSM-3 or other compatible modules, or a second NSS evo2 must
be fitted.

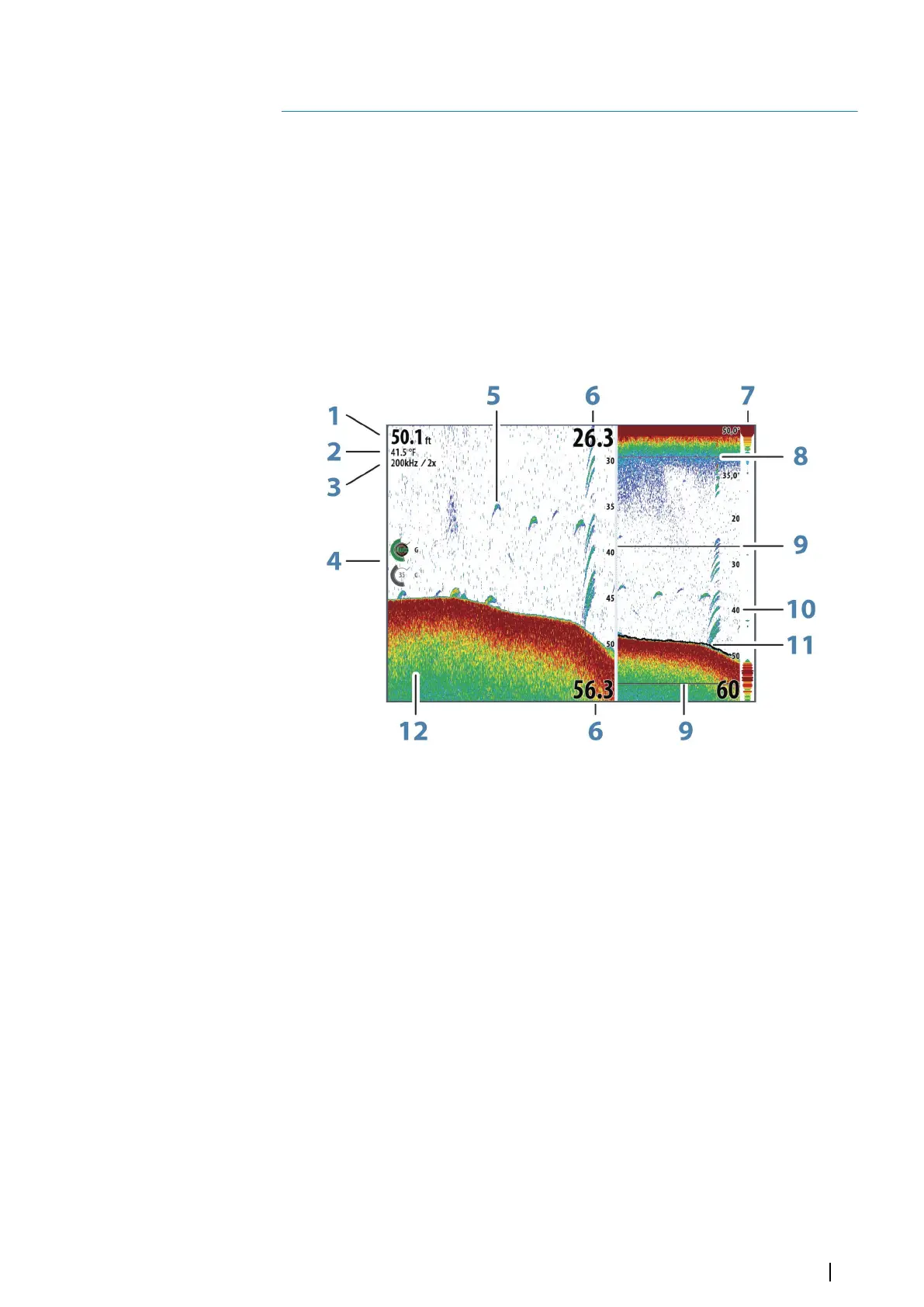

The Echosounder image
1 Depth
2 Temperature
3 Frequency / Zoom
4 Gain / Color adjustment icons
5 Fish arches
6 Upper and Lower range
7 A-Scope*
8 Temperature graph*
9 Zoom bars*
10 Range scale
11 Depth line*
12 Bottom
* Optional Echosounder items.
Ú
Note: You turn the optional Echosounder items on/off individually. Refer to "Echosounder
View options" on page 80.
Zooming the image
You can zoom the image by:
10
Echosounder | NSS evo2 Operator Manual
75
