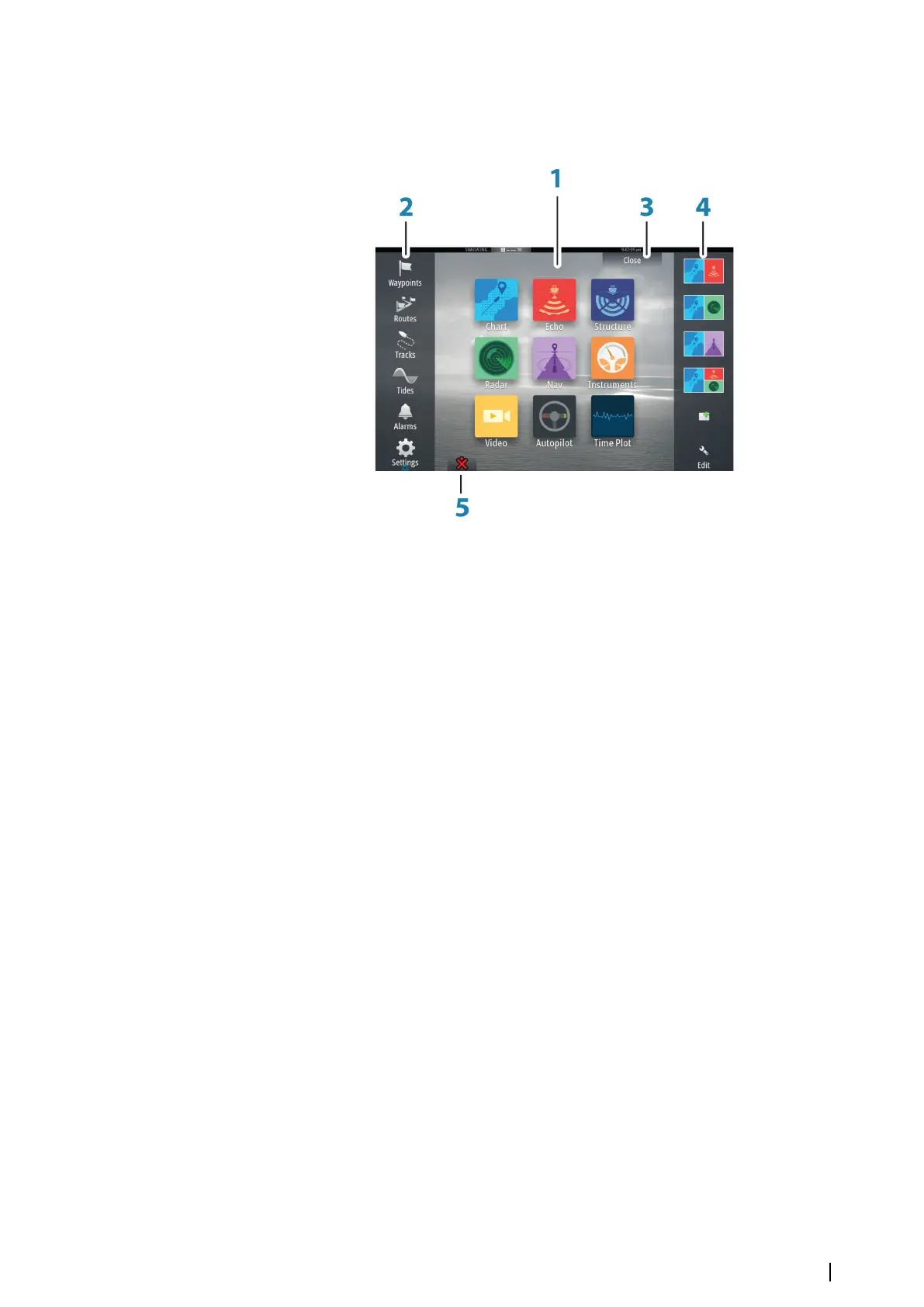

The Home page
The Home page is accessed from any operation by a short press on the Home key.
1 Applications
Select a button to display the application as a full page panel.
Press and hold a button to display pre-configured split page options for the
application.
2 Tools
Select a button to access dialogs used for carrying out a task, or for browsing
stored information.
3 Close button
Select to exit the Home page and return to the previous active page.
4 Favorites
Select a button to display the panel combination.
Press and hold a favorite button to enter edit mode for the Favorites panel.
5 Man Over Board (MOB) button
Select to save a Man Over Board (MOB) waypoint at the current vessel position.
Introduction | NSS evo2 Operator Manual
11
