Privacy
If allowed by your selected Insight Genesis account, you can choose between setting the
recorded log files as Private or Public at Insight Genesis.
Time remaining
Shows the remaining allocated space available for recordings.

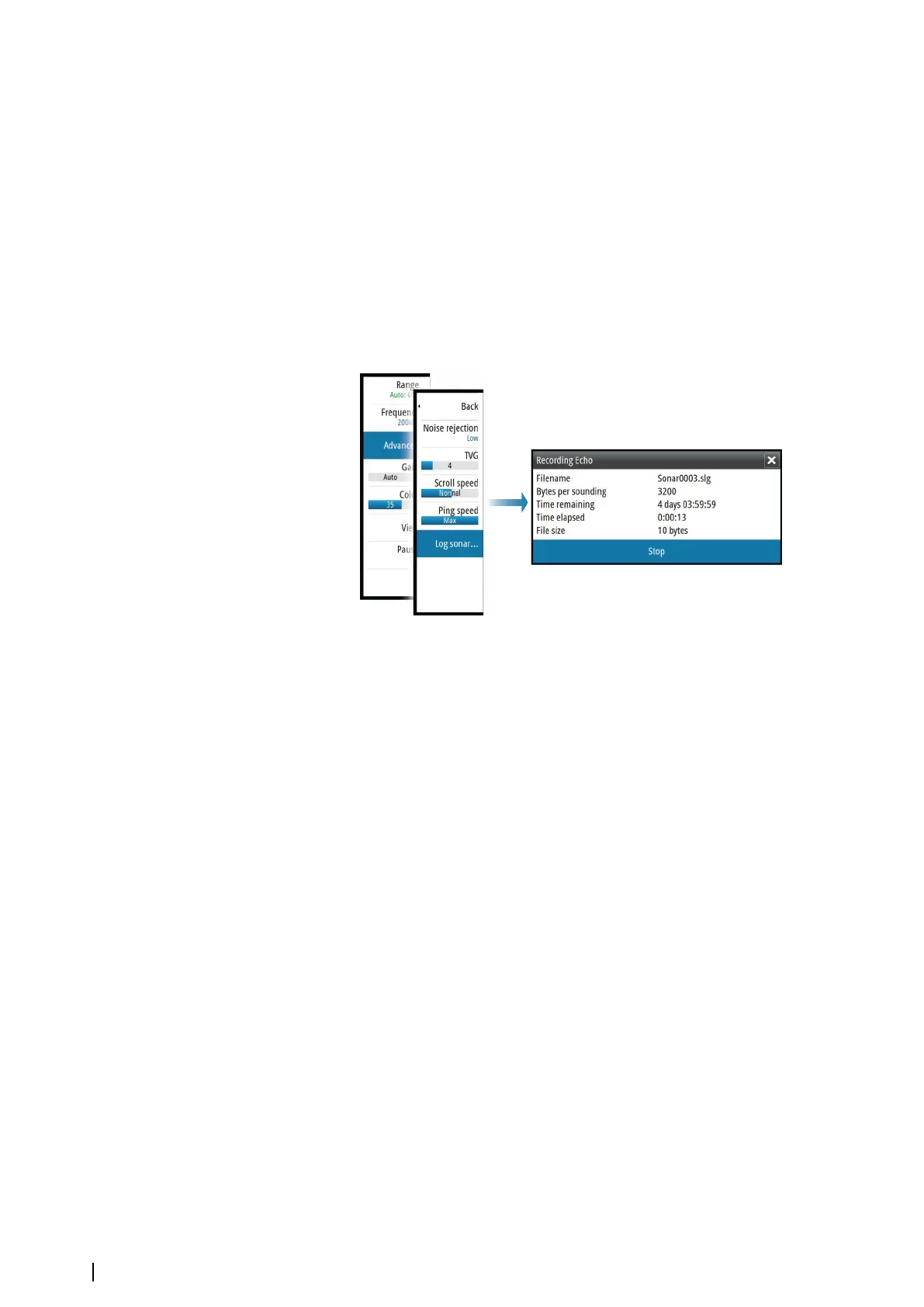

Stop recording log data
Select Stop in the Recording Echo dialog to fully stop the recording of all echosounder data.
Ú
Note: If you have selected the Upload to Insight Genesis option and are connected to
a wireless hotspot, your recorded files are transmitted to Insight Genesis when you select
Stop.
Viewing the recorded sounder data
Both internally and externally stored sounder records may be reviewed when the view sonar
log option is selected in the Echo settings dialog. Refer to "Echosounder settings" on page 82.
The log file is displayed as a paused image, and you control the scrolling and display from the
replay menu option.
You can use the cursor on the replay image, and pan the image as on a normal echo image.
If more than one channel was recorded in the selected echo file, you can select which
channel to display.
You exit the replay mode by pressing the X key or by selecting the X symbol in the upper
right corner of the replay image.
Echosounder View options
Split screen options
Zoom
The Zoom mode presents a magnified view of the sounder image on the left side of the
panel.
By default the zoom level is set to 2x. You can select up to 8x zoom from the drop-down
menu, using the +/- keys, or the zoom (+ or -) buttons.
The range zoom bars on the right side of the display shows the range that is magnified. If you
increase the zooming factor the range is reduced. You see this as reduced distance between
the zoom bars.
Bottom lock
The bottom lock mode is useful when you want to view echoes close to the bottom. In this
mode, the left side of the panel shows an image where the bottom is flattened. The range
scale is changed to measure from the seabed (0) and upwards. The bottom and the zero line
80
Echosounder | NSS evo2 Operator Manual
