Navigating
The navigation function included in the system allows you to navigate to the cursor position,
to a waypoint, or along a predefined route.
If autopilot functionality is included in your system, the autopilot can be set to automatically
navigate the vessel.
For information about positioning waypoints and creating routes, refer to "Waypoints, Routes, and
Tracks" on page 37.
Navigation panels
The Nav and Position panels can be used to display information when you are navigating.
The Nav panel
The Nav panel is activated from the Home page, either as a full page panel or as part of a
multiple panel page.

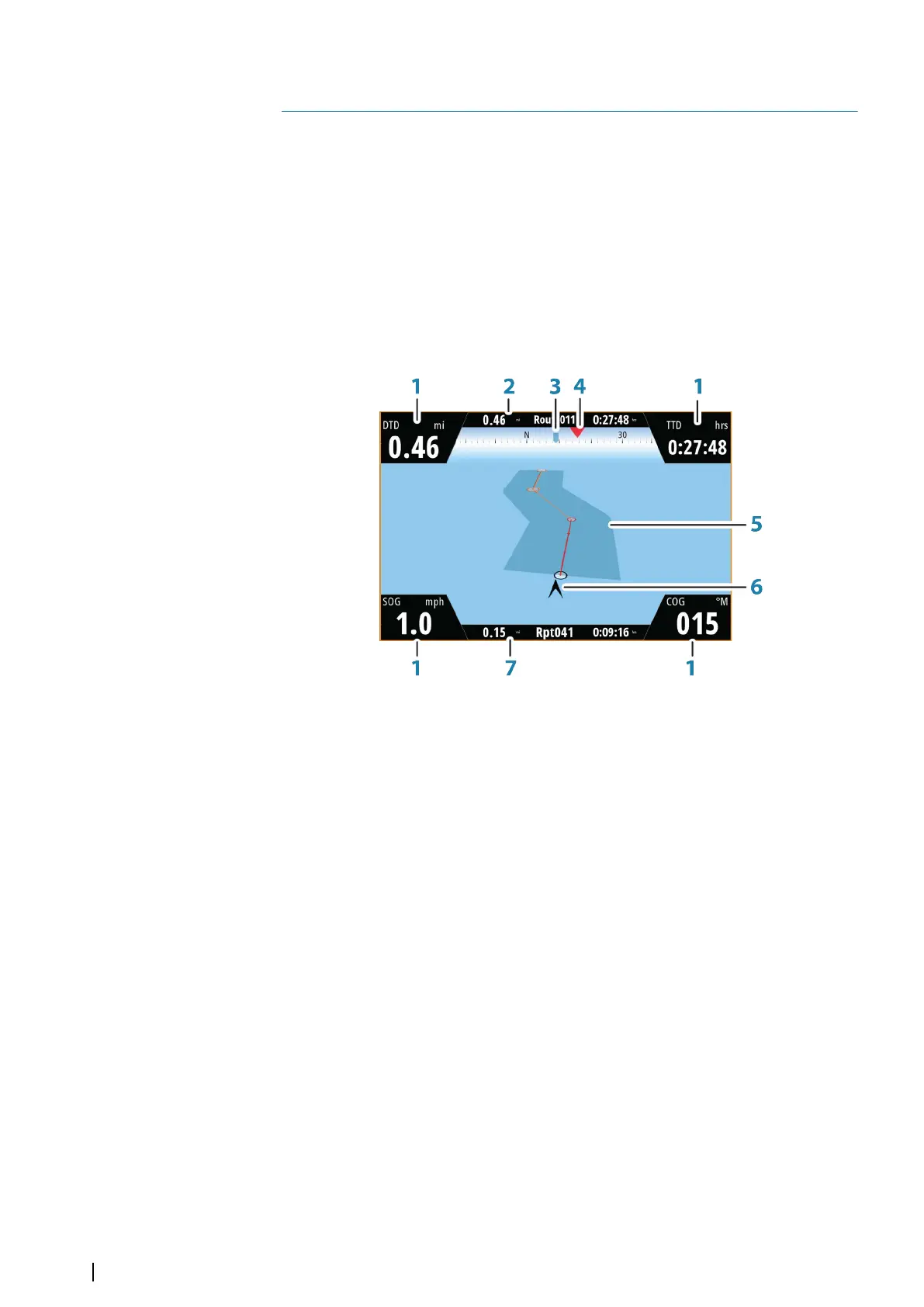

1 Data fields
2 Route information
3 Vessel heading
4 Bearing to next routepoint
5 Bearing line with allowed off course limit
When travelling on a route the bearing line shows the intended course from one
waypoint towards the next. When navigating towards a waypoint (cursor position,
MOB or an entered lat/lon position), the bearing line shows the intended course
from the point at which navigation was started towards the waypoint.
6 Vessel symbol
Indicates distance and bearing relative to the intended course. If the XTE (Cross
Track Error) exceeds the defined XTE limit, this is indicated with a red arrow
including the distance from the track line. Refer to "XTE limit" on page 45.
7 Routepoint information
Position panels
You can switch between displaying the Nav panel or the Position panel. The Position panel is
activated from the menu.
By default, there is one position panel available showing GPS position.
If Loran is enabled, there are two position panels. This is indicated with arrow symbols on left
and right side of the panel.
