You can turn the Instrument bar off from the System controls dialog.

Note: This only turns the Instrument bar off for the current page.

Turning the Instrument bar on/off

1. Activate the System controls dialog

2. Deactivate/activate the instrument bar icon to toggle the bar on and off.

Select a predefined activity bar

1. Activate the Instrument bar by selecting it

2. Select the MENU button to open the menu

3. Select Bar 1 or Bar 2 and then a predefined activity bar.

Predefined gauges are displayed in the instrument bar. You can change a gauge in the

activity Instrument bar, refer to Edit the content of the Instrument bar below.

Edit the content of the Instrument bar

1. Activate the Instrument bar by selecting it

2. Select the MENU button to open the menu

3. Select Edit to change an instrument gauge followed by the gauge you want to change

4. Select the content you want to display from the Choose Data dialog

5. Select Menu and then Finish editing to save your changes.

Fuel economy gauge

You can display a fuel economy gauge in the instrument bar on application pages (Chart,

Radar, Echo, Nav, and so on). Select the predefined Fuel activity bar or change a gauge

source to Fuel Economy. To change a gauge source, refer to "Setting the appearance of the Instrument

bar" on page 20.

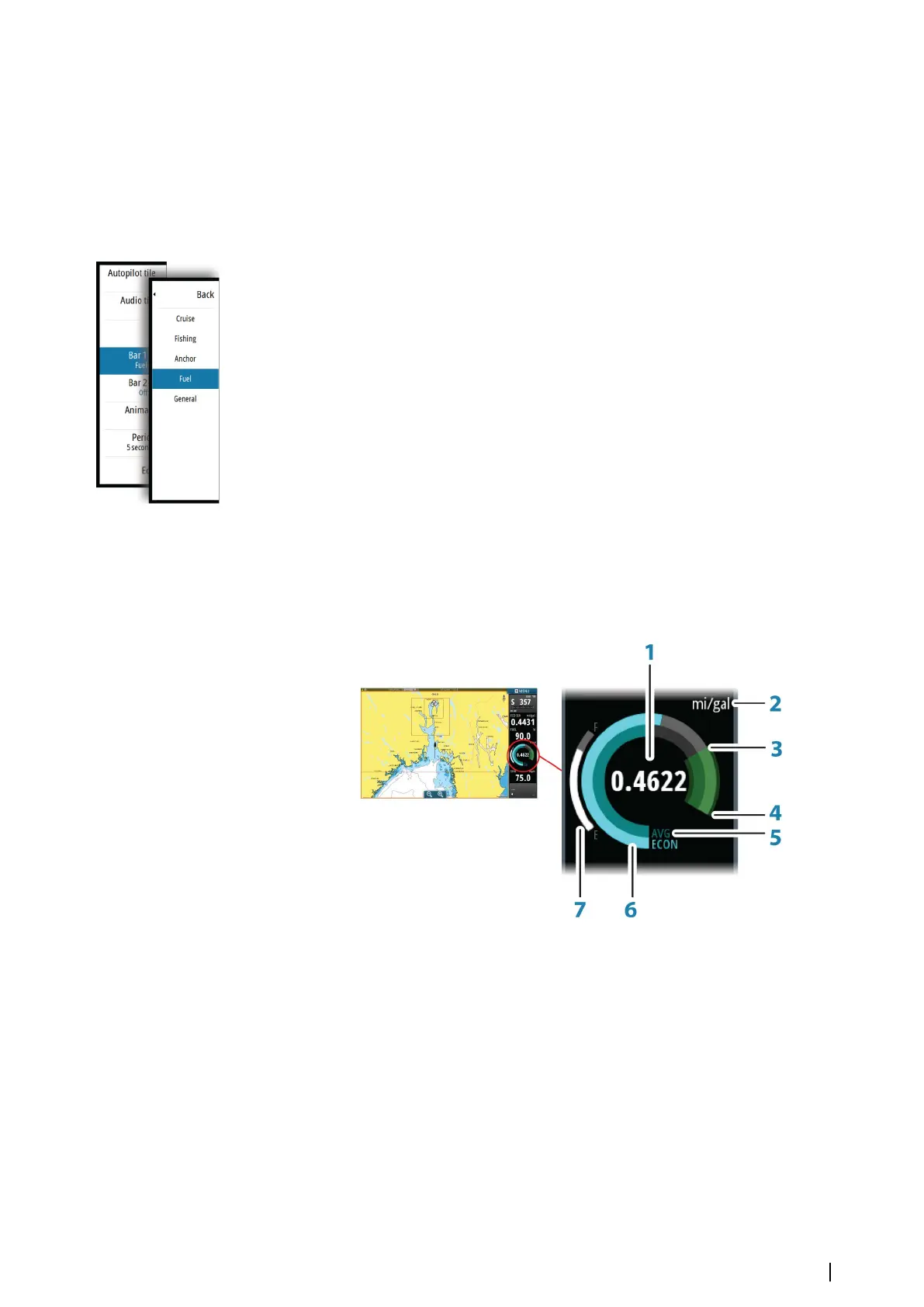

1 Digital readout of current economy

2 Fuel economy measurement units

3 100% efficiency, this equates to the 'nominal consumption'

4 120% efficiency

5 Average fuel economy

6 Instantaneous economy

7 Current fuel level

The fuel economy gauge displays the instantaneous versus historical average fuel efficiency.

The start of the green zone represents ‘Nominal Fuel Economy’, and it displays an additional

20% area to allow your fuel efficiency to be displayed above the nominal fuel economy.

The more efficient you consume fuel, the more the outer blue dial creeps up towards the

green portion of the scale. If you achieve the nominal efficiency of your vessel you will be at
