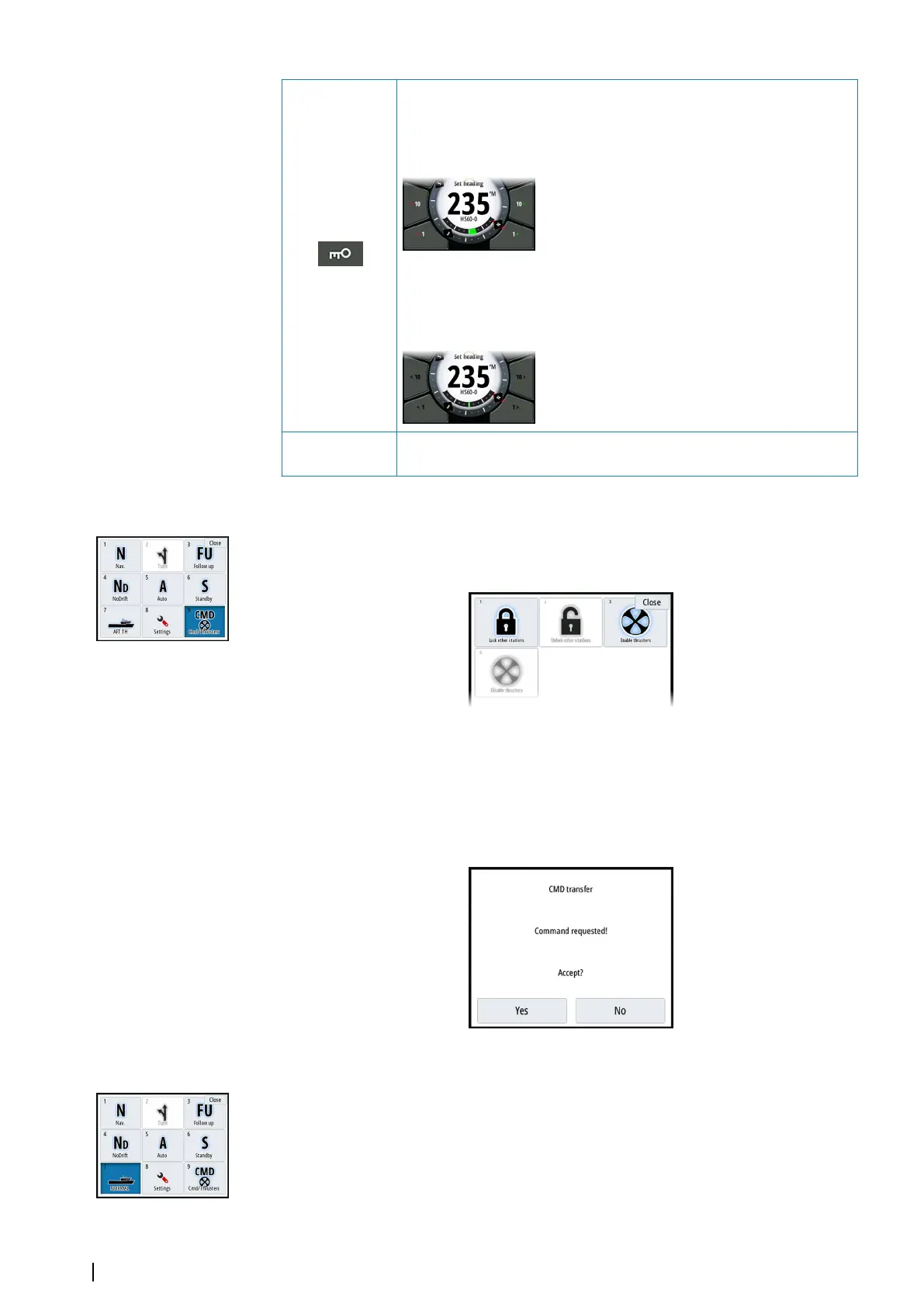

Locked system - The key icon indicates it can be a Master system or a
locked Open system.
If the key icon is displayed, and the <10, <1, 10>, 1> buttons are enabled
(red or green colored arrows and white numbers) then the MFD is active
and controls the autopilot.
If the key icon is displayed, and the <10, <1, 10>, 1> buttons are disabled
(black arrows and numbers) then the MFD is passive and does not
control the autopilot. Select the Mode button to request control from
the active control unit if it is a locked Open system, or the master
controller if it is a Master system.
none
Active in Open system - the MFD has control of the autopilot in an Open
system.
Locking and un-locking other control units
Select the Cmd/Thruster option in the Mode selection pop-up to open the Cmd/Thruster
selection pop-up.
Unlock other stations - allows other control units to take control of the autopilot without
requesting permission.
Lock other stations - locks other control units from taking control of the autopilot. When
other control units are locked, they must request control of the autopilot from the MFD.
When control of the autopilot is requested from another control unit, a prompt is displayed
in the MFD to authorize command transfer.
Selecting the work profile
The AP70/AP80 can be set up with 6 different work profiles associated with different work
modes or preferences. Use the AP70/AP80 controller to set up the different work profiles. In
the MFD, the active work profile is displayed in the Mode button of the MFD Autopilot
controller pop-up and the Mode selection pop-up. If the MFD has control of the autopilot,
you can use it to select which work profile is active.
To change the work profile using the MFD, the autopilot must be in standby mode.
60
Autopilot | NSS evo2 Operator Manual
