MACHINE
PART
ITEM
MAT.
CNC
DWG BY
APP. BY
DATE
DATE
QTY.
DEPT.
SIPROMAC
ST-GERMAIN DE GRANTHAM
QUEBEC CANADA
DEPT. TOL.
USINAGE
TOLERIE
SOUDAGE
METRIC
± 0.1
±
0.5
±
0.
5
INCH
± 0.004"
±
0.020"
±
0.020"
N.T.S.
NO.
005D0457
SBU
1
M-(M)-I
600A & 620A

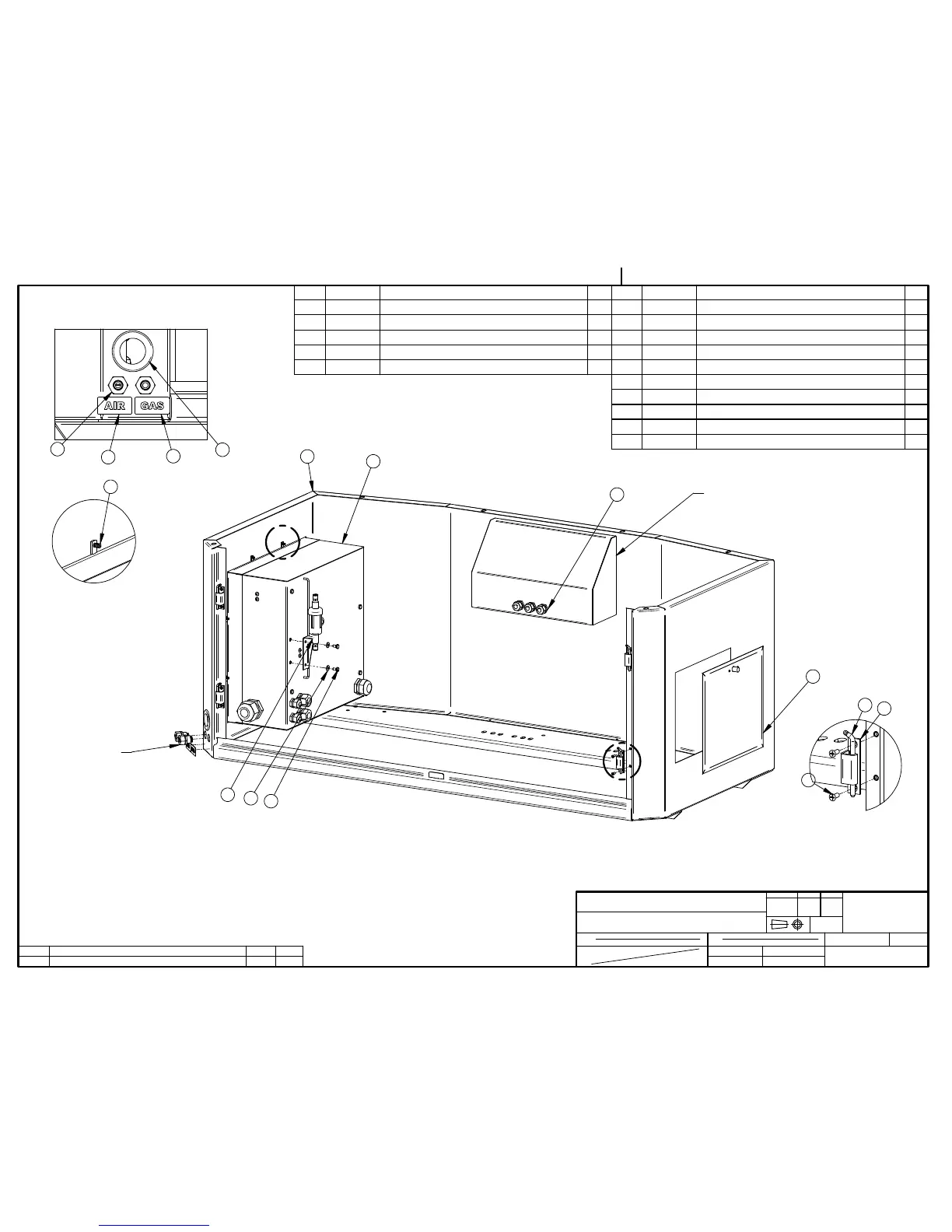

STRUCTURE ASS'Y
15-02-24
005D0457
LET. MODIFICATION
DATE
INT.
B
004E0114 WAS 004D0114
15-02-24
SBU
4
1
ITEM PART # DESCRIPTION QT.
1 004A4090 ACCESS DOOR ASSEMBLY 1
2 004A4098 ELECTRIC BOX ASS'Y 1
3 004A4138 VACUUM SENSOR FILTER 1
4 004E0114 STRUCTURE PRE-ASSEMBLY 1
5 036-0265 GROMMET 1-1/2'' ID X 2-3/8'' OD RUBBER 1
6 036-0409 PRESSE-ETOUPE CD13 3
7 051-01385 SCREW 10-24 x 1/2"FLAT-UND. PHIL S/S 8
8 051-0144 SCREW #10-24 N.C 1/2"PAN PHIL. S/S 8
9 051-0180 BOLT. HEX. 1/4"-20 NC. x 1/2" S/S 2
10 051-0740 WASHER 1/4" FLAT S/S 2
C
DETAIL C
11
12
7
14
15
13
2
A
DETAIL A
8
5
6
3
10
9
DETAIL B
DETAIL B
SILICONE ALL AROUND
ITEM PART # DESCRIPTION QT.
11 056-3010-1 HINGE CONCEALED SS304 - BASE 4
12 056-3010-3 HINGE CONCEALED SS304 - PIN 4
13 102-0551 BULKHEAD 1/4"NPT X 3/8 TUBE QUICK 2
14 127-0040 STICKER ''AIR'' BLUE/WHITE 1'' X 2'' 1
15 127-0041 STICKER ''GAS'' YELLOW/BLACK 1'' X 2'' 1
