Sipromac 600A - Pump Busch 165 Assembly

MACHINE
PART
ITEM
MAT.
CNC
DWG BY
APP. BY
DATE
DATE
QTY.
DEPT.
SIPROMAC
ST-GERMAIN DE GRANTHAM
QUEBEC CANADA
DEPT. TOL.
USINAGE
TOLERIE
SOUDAGE
METRIC
± 0.1
± 0.5
± 0. 5
INCH
± 0.004"
± 0.020"
± 0.020"
N.T.S.
NO.
004B1469
SBU
1
M-I
600A & 620A

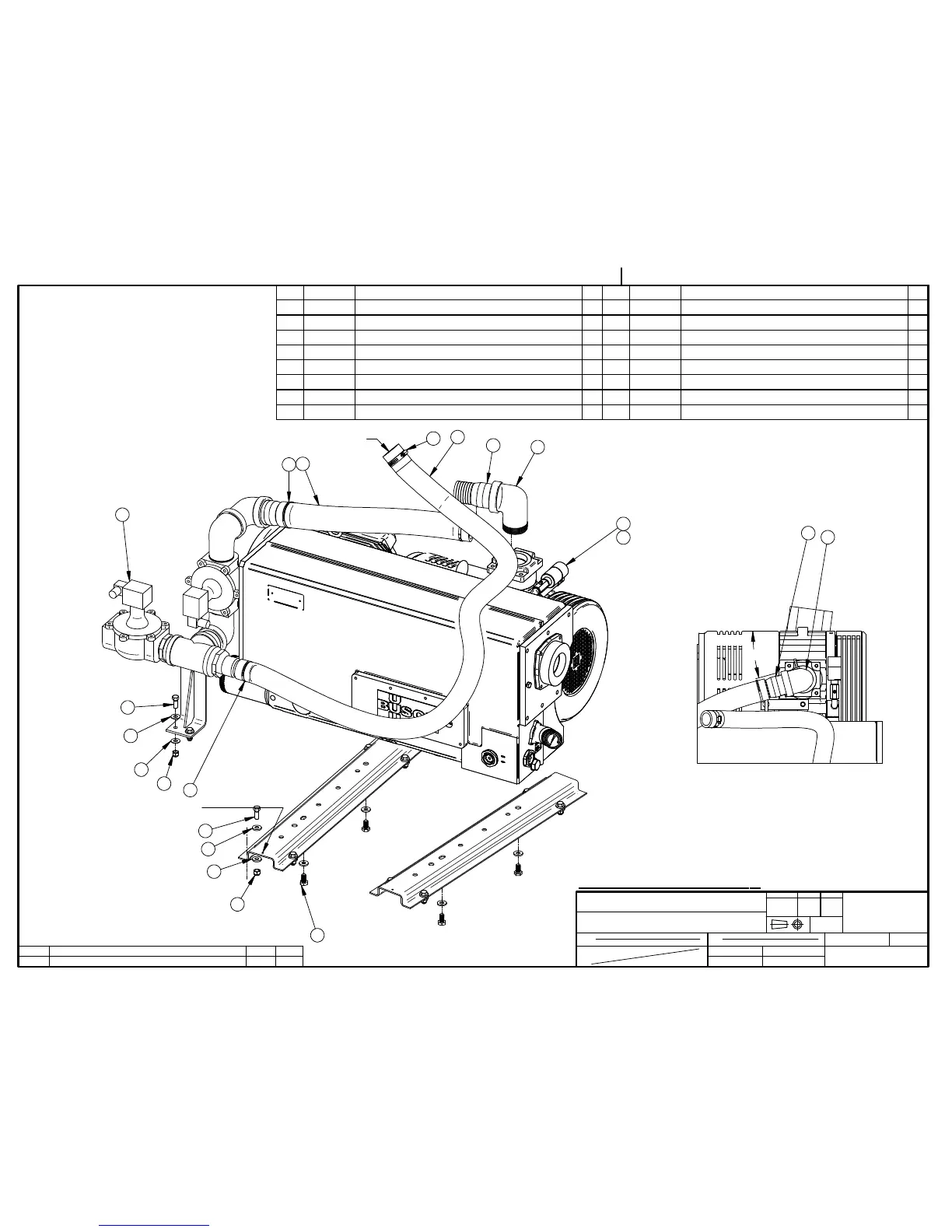

PUMP "BUSCH" 165 M³ ASSEMBLY
13-09-18
004B1469
LET. MODIFICATION DATE INT.
A
001B6563 WAS 001A6563
14-05-28 SBU
-OPTION - 165M³ PUMP
13 OR
11
12
9 USE BLUE LOCTITE
4
6
5
7
ITEM PART # DESCRIPTION QT.
1 001B6563 PUMP SUPPORT 2
2 004A0863 VACUUM/ATMOSPHERE VALVE ASSY 1
3 104-0125 HOSE 1-1/2'' ID VACUUM POLYWIRE (1720mm) 1
4 105-0110 SCREW CLAMPS 1-1/16'' TO 2'' ALL S/S 1
5 105-0250 EAR CLAMP 1-1/2" S/S 1
6 104-0150 HOSE 2'' ID VACUUM POLYWIRE (570mm) 1
7 105-0258 EAR CLAMP 2" S/S 2
8 051-0783 WASHER 3/8" FLAT THICK S/S 20
ITEM PART # DESCRIPTION QT.
9 051-09931 BOLT M10 X 20MM HEX SS 4
10 051-0360 BOLT 3/8"-16nc. X 1" S/S 10
11 051-0622 NUT 3/8"-16nc. NYLON LOCK S/S 10
12 051-0780 WASHER 3/8" FLAT S/S 4
13 125-0070 BUSCH RA-0165 230-460V/3PH/60HZ 1
14 004A4082 BELLOWS ELBOW CONNECTOR ASSY 1
15 100-1250 STRAIGHT 2"MNPT X 2" HOSE BARB SS 1
16 125-0075 BUSCH RA-0165 575V/3PH/60HZ 1
3
8
10
8
12
10
11
TO TABLE
VACUUM INLET
SMALL HOLES MUST
BE ON OIL RESERVOIR SIDE
15
14
2
15°
14
15
16
