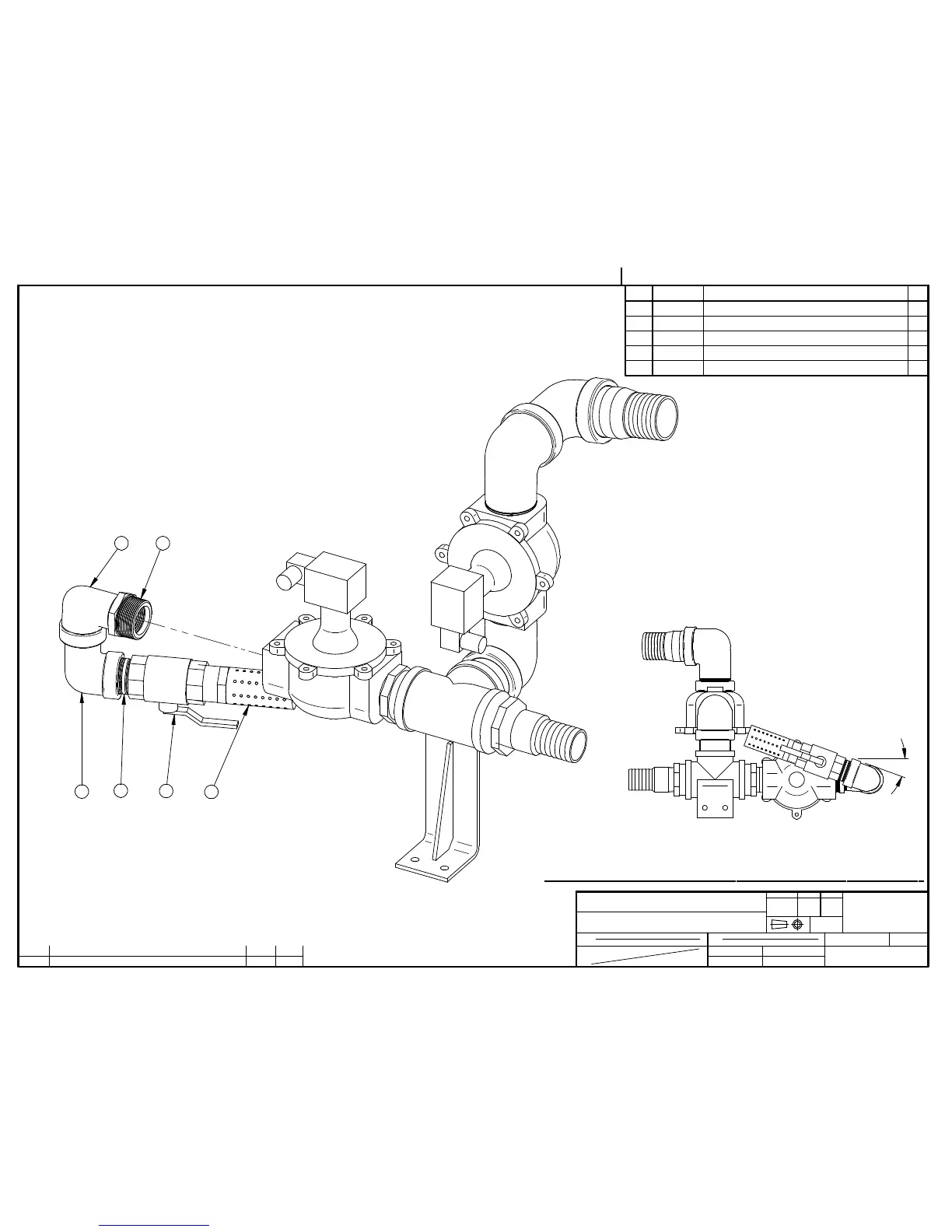

Sipromac 600A - Vacuum;Atmosphere Valve (Opt Soft Air + Muffler)

MACHINE
PART
ITEM
MAT.
CNC
DWG BY
APP. BY
DATE
DATE
QTY.
DEPT.
SIPROMAC
ST-GERMAIN DE GRANTHAM
QUEBEC CANADA
DEPT. TOL.
USINAGE
TOLERIE
SOUDAGE
METRIC
± 0.1
± 0.5
± 0. 5
INCH
± 0.004"
± 0.020"
± 0.020"
N.T.S.
NO.
004A4108
SBU
1
M
600A & 620A
VACUUM/ATMOSPHERE VALVE (OPT SOFT AIR + MUFFLER)
13-09-18
004A4108
LET. MODIFICATION DATE INT.
-OPTION - SOFT AIR + MUFFLER 165M³ @ 305M³
ITEM PART # DESCRIPTION QT.
2 100-0555 RED.BUSH.1-1/2" x 1-1/4" NPT S/S 1
3 100-0090 STREET ELBOW 90° X 1-1/4'' NPT SS 2
4 100-0245 CLOSE NIPPLE 1¼"npt. S/S 1
5 107-0090 BALL VALVE 1-1/4"NPT 1
6 114-2030 VACUUM MUFFLER 1-1/4"NPT 1
6
5
4
3
3 2
20°
