005B0562
SBU
4
M-I
600A & 620A
SEAL BAR ASS'Y W/SUPPORT (T&B)
13-09-25
005B0562
MACHINE
PART
ITEM
MAT.
CNC
DWG BY
APP. BY
DATE
DATE
QTY.
DEPT.
SIPROMAC
ST-GERMAIN DE GRANTHAM
QUEBEC CANADA
DEPT. TOL.
USINAGE
TOLERIE
SOUDAGE
METRIC
± 0.1
±
0.5
±
0.
5
INCH
± 0.004"
±
0.020"
±
0.020"
N.T.S.
NO.
LET.
MODIFICATION
DATE
INT.
B
005B0420 WAS 005A0420
13-09-25
SBU
C
600A ADDED, 002A4162 WAS 002-0510
14-05-27
SBU

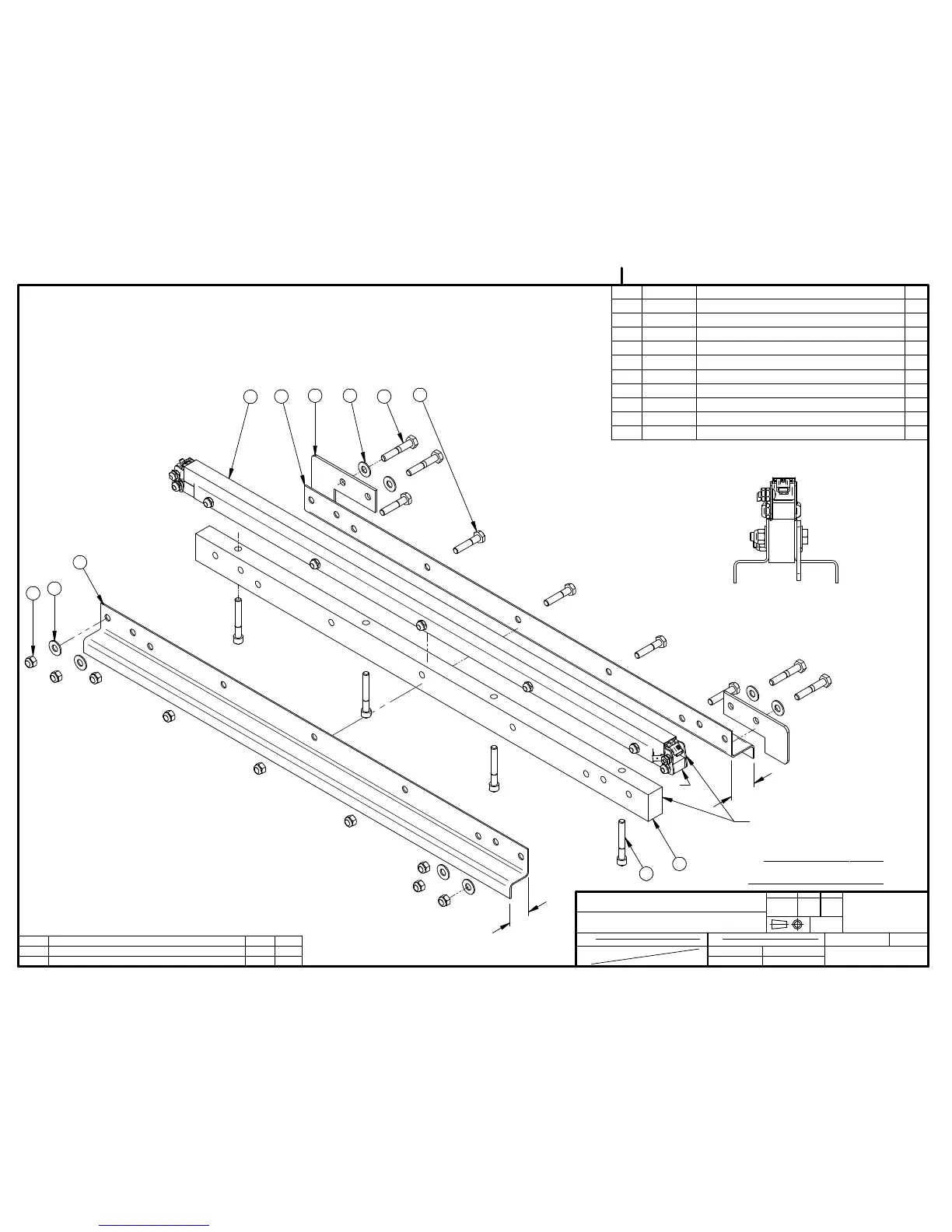

ITEM PART # DESCRIPTION QT.
1 005B0420 SEAL BAR PRE-ASS'Y 1
2 051-0256 BOLT 1/4"-20nc. X 1 3/4" CAP SKT S/S 4
3 051-0581 NUT 1/4"-20 NYLON LOCK S/S 9
4 051-0230 HEX BOLT 1/4-20 x 1 1/4" SS 5
5 051-0250 BOLT ¼"-20nc. X 1½" S/S 4
6 051-0740 WASHER 1/4" FLAT S/S 8
7 001-1591 EXTERIOR BELLOWS COVER 1
8 002A4162 SEAL BAR SUPPORT 1
9 001-1958 INTERIOR BELLOWS COVER 1
10 001-0269 SEAL BAR GUIDE 2
5
6
1
7
6
3
10
9
2
8
4
-TOP & BOTTOM
SEALING OPTION-
25.5
REF.
31.5
REF.
VUE A
VUE A
THIS SIDE OF SEAL BAR
TO FIT FLUSH W/SUPPORT
