Sipromac 600A - Page 46

005F0419
Y.F.
LISTE
M-I
600A & 620A

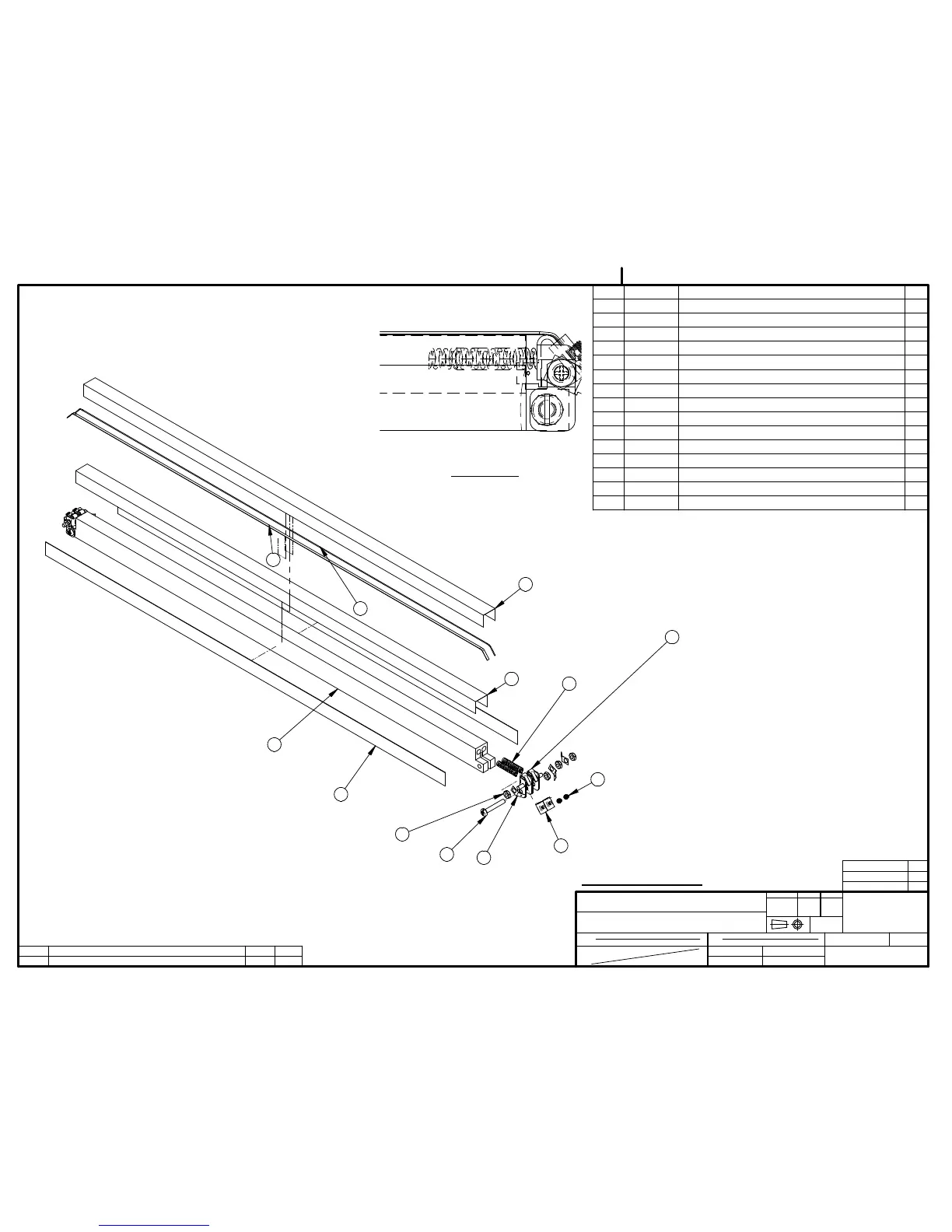

SEAL BAR PRE-ASS'Y
14-02-19
005F0419
MACHINE
PART
ITEM
MAT.
CNC
DWG BY
APP. BY
DATE
DATE
QTY.
DEPT.
SIPROMAC
ST-GERMAIN DE GRANTHAM
QUEBEC CANADA
DEPT. TOL.
USINAGE
TOLERIE
SOUDAGE
METRIC
± 0.1
± 0.5
± 0. 5
INCH
± 0.004"
± 0.020"
± 0.020"
N.T.S.
NO.
LET.
MODIFICATION
DATE INT.
A
600A ADDED
14-05-27 SBU
QTY
MACHINE
4
620A
-BAG CUT (ECO) -
ITEM PART # DESCRIPTION QT.
1 002A4172 BANDING BUCKLE 4
2 002A4190 SEAL BAR (ECO) 1
3 005A1443 ELEMENT BINDER RIGHT ECO 2
4 005A1444 ELEMENT BINDER LEFT ECO 2
5 027-0400 CONNECTOR ADAPTOR 6
6 039-02115 ROUND CUT-OFF ELEMENT 0.9MM 1
7 039-0222 TAPERED BAND 3MM X 0.3MM 1
8 051-0154 SCREW 10-24 x 1-1/4"PAN SLOT S/S 2
9 051-01752 SET SCREW 10-32 SS 3/16" 2
10 051-01752 SET SCREW 10-32 SS 3/16" 2
11 051-0550 NUT #8-32 SS 8
12 077-0014 SPRING C0240-040-1250 SS COMP. 4
13 171-0180 TAPE CLEAR SUPER BOND 3/4" 663.5mm (0.021) 2
14 176-0200 TEFLON TAPE 5MIL 1
15 176-0203 TEFLON TAPE UNCOATED ZONE 5MIL 1
15
2
3 ALLOW TO MOVE FREELYPERMETTRE DE BOUGER LIBREMENT
9
5
11
1
13
-DÉTAIL A-
12
6
7
14
4
600A
8
