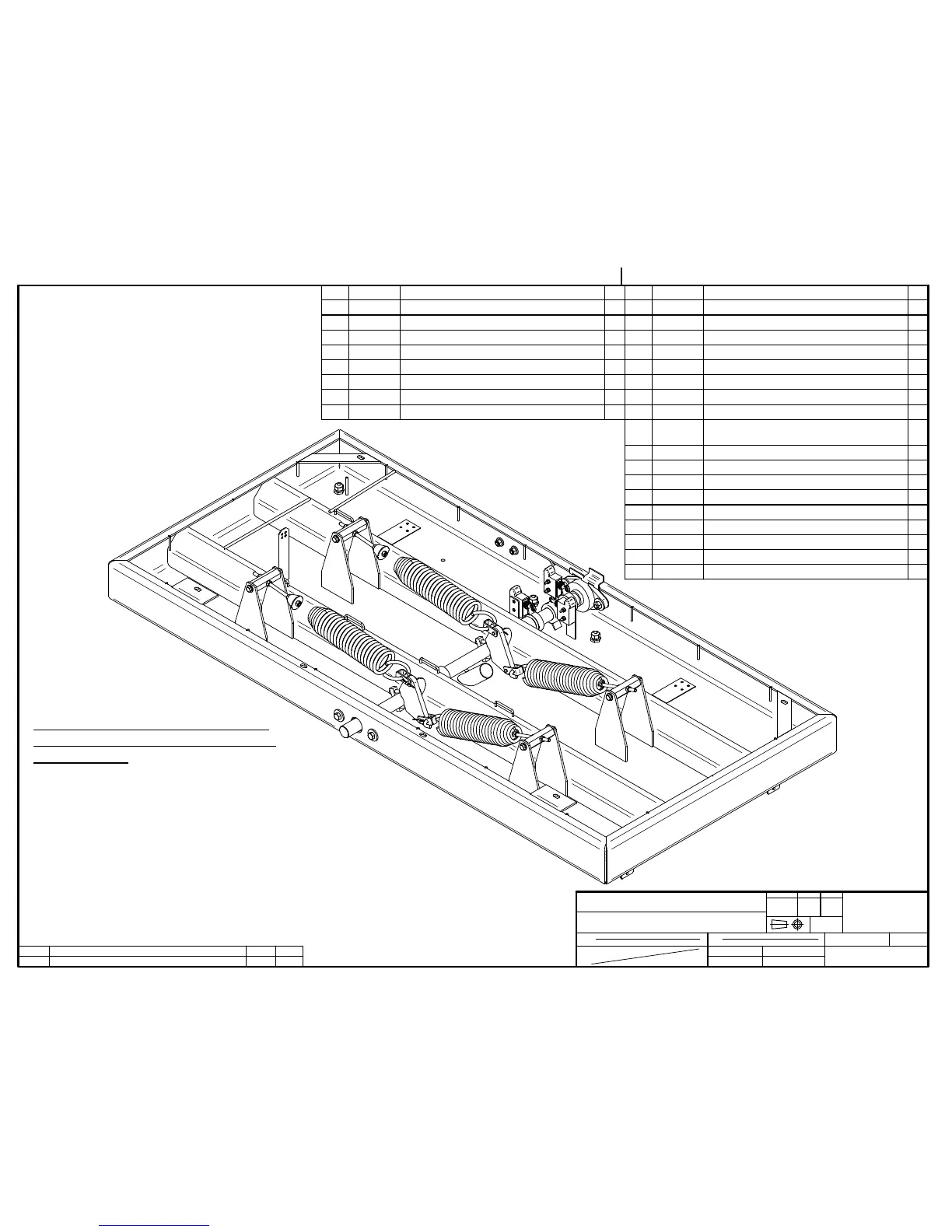

Sipromac 600A - Table Assembly

MACHINE
PART
ITEM
MAT.
CNC
DWG BY
APP. BY
DATE
DATE
QTY.
DEPT.
SIPROMAC
ST-GERMAIN DE GRANTHAM
QUEBEC CANADA
DEPT. TOL.
USINAGE
TOLERIE
SOUDAGE
METRIC
± 0.1
± 0.5
± 0. 5
INCH
± 0.004"
± 0.020"
± 0.020"
N.T.S.
NO.
004D0122
SBU
1
M-(M)
600A
TABLE ASSEMBLY
13-12-02
004D0122
LET. MODIFICATION DATE INT.
H
005D0150 WAS 005C0150
13-12-02 SBU
1/2
PROCÉDURE D'AJUSTEMENT DES
RESSORTS / SPRING ADJUSTMENT
PROCEDURE:
- MESURER LA LONGUEUR INITIALE DES RESSORTS
- INSTALLER LES RESSORTS DE FAÇON LÂCHE ET
SERRER LES ÉCROUS À LA MAIN.
- TENDRE DE FAÇON ÉGALE LES RESSORTS. LA
LONGEUR ÉTIRÉ MOINS LA LONGEUR INITIAL DOIT
ÊTRE ÉGALE POUR CHAQUE RESSORT.
------------
- MEASURE THE INITIAL SPRING LENGTH
- INSTALL THEM LOOSELLY BY THIGHTENING THE
NUT BY HAND
- TENSION SPRING EQUALLY. THE STRECHTED
LENGTH MINUS THE INITIAL LENGTH MUST BE THE
SAME ON EACH SPRING.
ITEM PART # DESCRIPTION QT.
1 005D0150 TABLE PRE-ASSEMBLY 1
2 008A1953 SPRING 4
3 002A3941 SPRING ADJ. PIVOT 4
4 051-0600 NUT 5/16" -18 S/S 8
5 002A4002 SPRING ADJ. PIVOT SPACER 8
6 051-0760 WASHER 5/16" FLAT S/S 8
7 051-0300 BOLT 5/16"-18 x 3/4" S/S 8
8 004A3937 SHACKLE ASS'Y 4
9 036-0400 WIRE CONNECT. 3/8'' NPT
CD09/O-RING/NUT
8
10 004A3968 SPRING INSERT ASSEMBLY 4
11 002C0318 CENTRAL SHAFT 1
12 075-1655 2 BOLT FLANGED BEARING 1-1/4" PLASTIC 2
13 051-0428 BOLT 7/16"-14NC x 1-1/2" SS 4
14 001A2954 WASHER 0.468"Ø ID x 1.250"OD x 3.5 8
15 051-0625 NUT 7/16"-14 S/S 4
16 005A1437 MICRO SWITCH COLLAR ASSY 3
17 026-0750 ROLLER PLUNGER SWITCH SPDT 3
18 004B3936 SPRING BLOCK PRE-ASSY 2
ITEM PART # DESCRIPTION QT.
19 051-0720 WASHER #8 FLAT S/S 6
20 051-0560 NUT #8-32 NYLON LOCK S/S 6
21 005-0317 GUIDE ARM AXIS ASS'Y 1
22 051-0783 WASHER 3/8" FLAT THICK S/S 4
23 051-0360 BOLT 3/8"-16nc. X 1" S/S 2
24 051-0620 NUT 3/8"-16 NC S/S 2
25 001A6466 BEARING SPACER 2
26 051-0142 SCREW 8-32 x1-1/2"RND PHIL S/S 6
