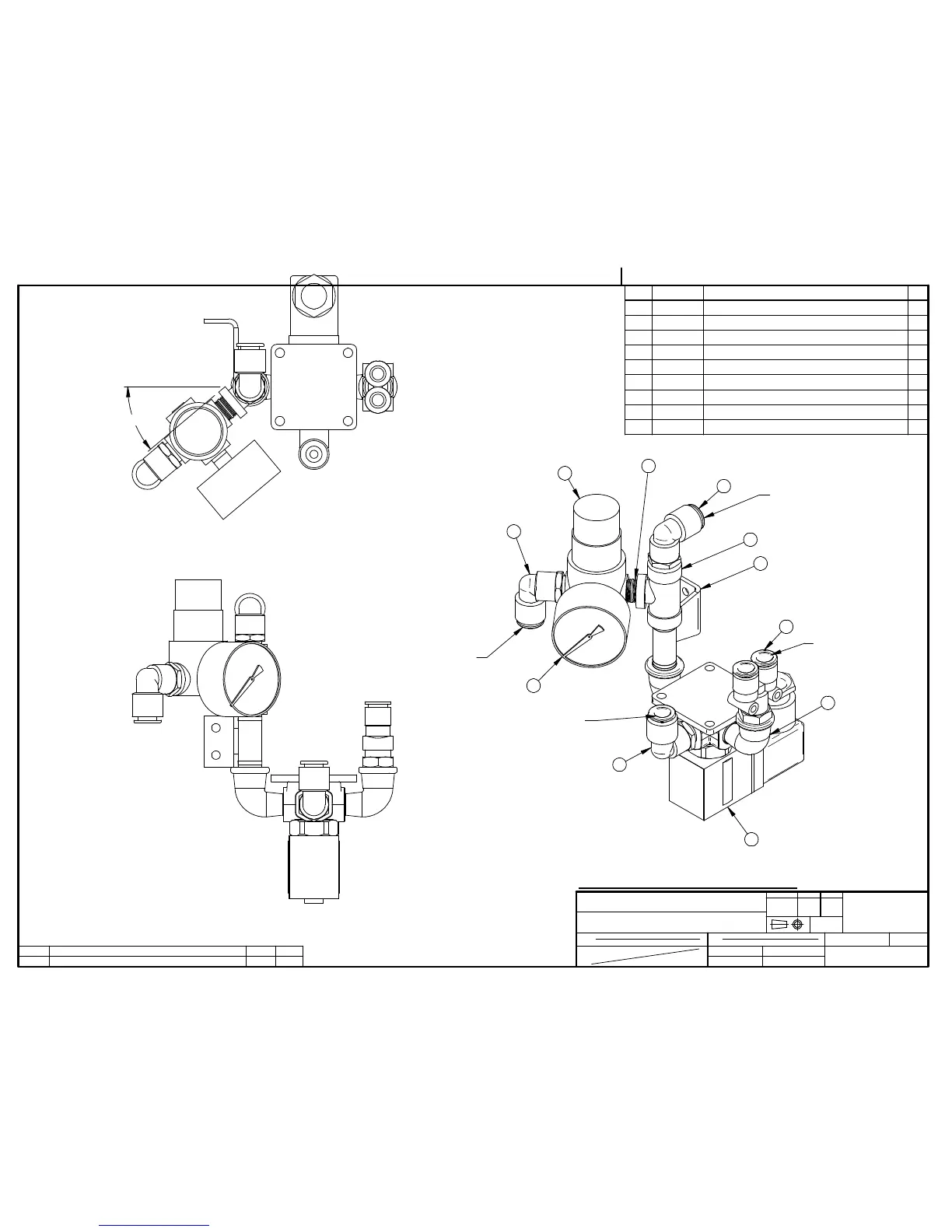

Sipromac 600A - Air Regulator Valve Assy

MACHINE
PART
ITEM
MAT.
CNC
DWG BY
APP. BY
DATE
DATE
QTY.
DEPT.
SIPROMAC
ST-GERMAIN DE GRANTHAM
QUEBEC CANADA
DEPT. TOL.
USINAGE
TOLERIE
SOUDAGE
METRIC
± 0.1
± 0.5
± 0. 5
INCH
± 0.004"
± 0.020"
± 0.020"
N.T.S.
NO.
004B4103
SBU
1
M
600A & 620A
AIR REGULATOR VALVE ASSY
14-05-27
004B4103
LET. MODIFICATION DATE INT.
A
VALVE UPDATED
14-05-27 SBU
-OPTION - AIR REGULATOR
1
3
2
6
9
4
5
ITEM PART # DESCRIPTION QT.
1 004A4140 AIR REGULATOR SUPPORT 1
7 100-0065 STREET ELBOW 1/4" NPT SS 2
3 100-0225 CLOSE NIPPLE 1/4" NPT SS 1
2 100-0463 TEE 1/4" NPT S/S 1
6 102-0330 ELBOW 1/4" NPT X 3/8" HOSE QUICK 3
9 102-0361 Y BRANCH 1/4'' MNPT X 3/8'' T. QUICK 1
8 106-00701 VALVE 3WAY 24V 1/4''NPT 1
4 114-0147 PRESSURE REGUL. 0-60 PSI 1/4" NPT 1
5 114-0245 PRESSURE GAUGE 60 PSI 1/8" NPT 1
40°
7
6
6
VACUUM FROM
OTHER VALVE
AIR PRESSURE
TO OTHER VALVE
AIR PRESSURE
INLET
TO BELLOWS
8
