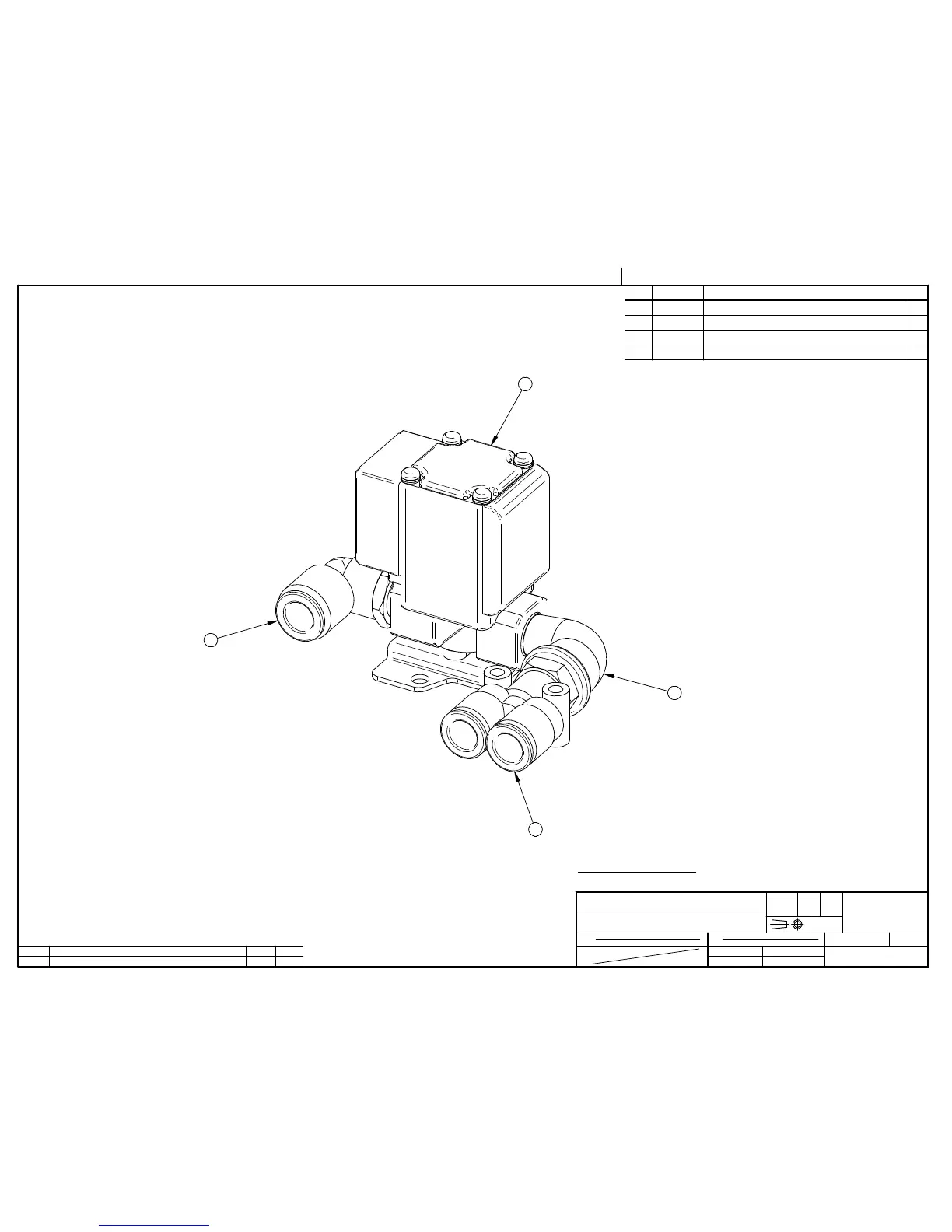

Sipromac 600A - Gas Valve Assembly (Option)

MACHINE
PART
ITEM
MAT.
CNC
DWG BY
APP. BY
DATE
DATE
QTY.
DEPT.
SIPROMAC
ST-GERMAIN DE GRANTHAM
QUEBEC CANADA
DEPT. TOL.
USINAGE
TOLERIE
SOUDAGE
METRIC
± 0.1
± 0.5
± 0. 5
INCH
± 0.004"
± 0.020"
± 0.020"
N.T.S.
NO.
004B4113
SBU
2
M
VACUUM
GAS VALVE ASSEMBLY (OPTION)
14-05-27
004B4113
LET. MODIFICATION DATE INT.
A
VALVE UPDATE
14-05-27 SBU
-OPTION - GAS
3
2
4
ITEM PART # DESCRIPTION QT.
1 106-0010 VALVE 2WAY N.C. 24VAC 1/4'' NPT(SMC) 1
2 102-0330 ELBOW 1/4" NPT X 3/8" HOSE QUICK 1
3 100-0065 STREET ELBOW 1/4" NPT SS 1
4 102-0361 Y BRANCH 1/4'' MNPT X 3/8'' T. QUICK 1
