Sipromac 600A - Page 63

MACHINE
PART
ITEM
MAT.
CNC
DWG BY
APP. BY
DATE
DATE
QTY.
DEPT.
SIPROMAC
ST-GERMAIN DE GRANTHAM
QUEBEC CANADA
DEPT. TOL.
USINAGE
TOLERIE
SOUDAGE
METRIC
± 0.1
± 0.5
± 0. 5
INCH
± 0.004"
± 0.020"
± 0.020"
N.T.S.
NO.
004A4106
SBU
1
M
600A & 620A

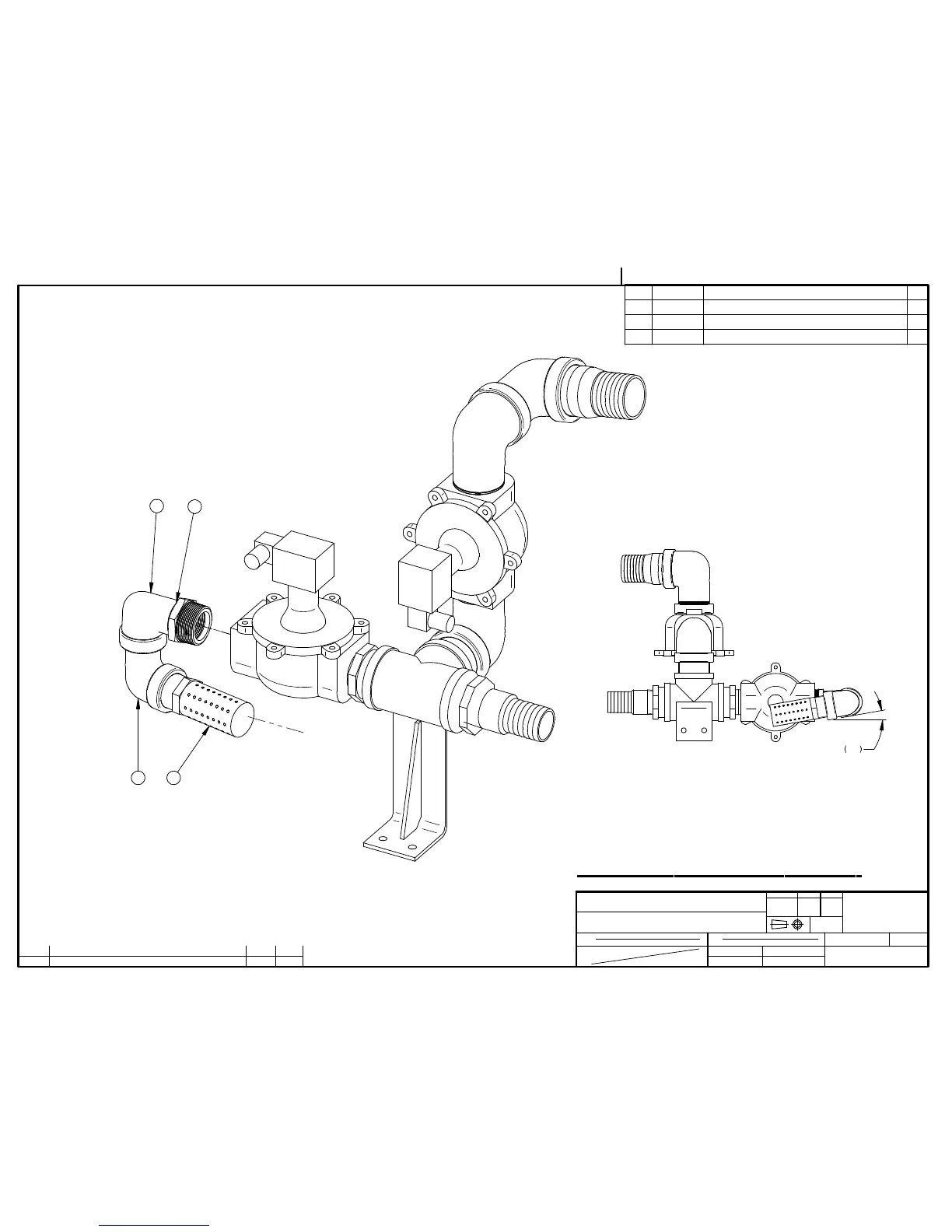

VACUUM/ATMOSPHERE VALVE (OPT MUFFLER)
13-09-18
004A4106
LET. MODIFICATION DATE INT.
-OPTION - MUFFLER 165M³ @ 305M³
2
ITEM PART # DESCRIPTION QT.
2 100-0555 RED.BUSH.1-1/2" x 1-1/4" NPT S/S 1
3 100-0090 STREET ELBOW 90° X 1-1/4'' NPT SS 2
4 114-2030 VACUUM MUFFLER 1-1/4"NPT 1
10°
3
3 4
