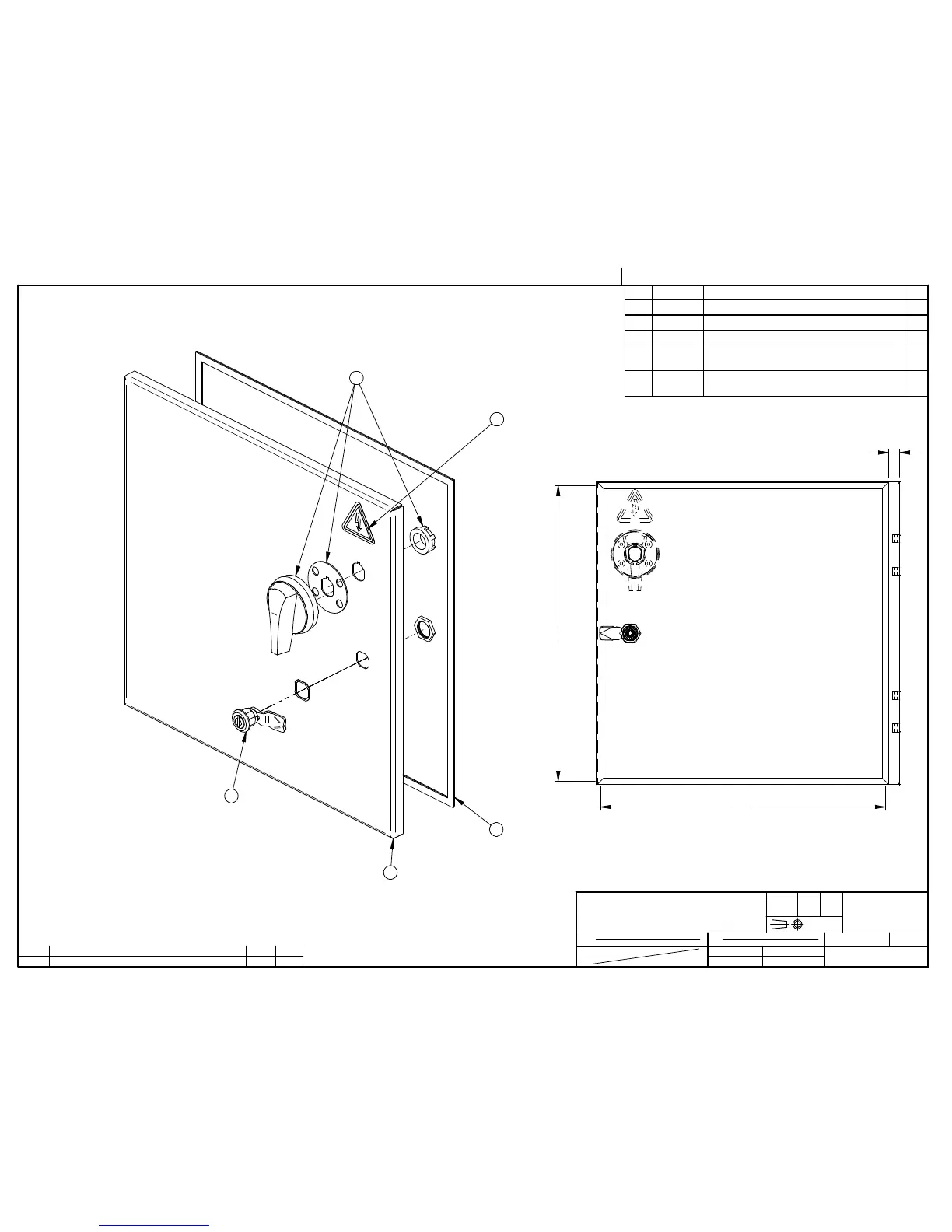

Sipromac 600A - E-Box Door Assembly

MACHINE
PART
ITEM
MAT.
CNC
DWG BY
APP. BY
DATE
DATE
QTY.
DEPT.
SIPROMAC
ST-GERMAIN DE GRANTHAM
QUEBEC CANADA
DEPT. TOL.
USINAGE
TOLERIE
SOUDAGE
METRIC
± 0.1
± 0.5
± 0. 5
INCH
± 0.004"
± 0.020"
± 0.020"
N.T.S.
NO.
004A4100
SBU
1
M
VACUUM
E-BOX DOOR ASSEMBLY
13-09-17
004A4100
LET. MODIFICATION DATE INT.
1
ITEM PART # DESCRIPTION QT.
1 004A4101 E-BOX DOOR PRE-ASSY 1
2 056-2612 CAM LOCK QUARTER TURN SS304 1
3 179-0026 D-SHAPED RUBBER SEAL 1683mm LONG 1
4 026-3160 HANDLE RED/YELLOW NEMA 4X,
COMPACT, PADLOCKABLE
1
5 127-0100 STICKER ELEC.HAZARD ISO 2-1/2''
TRIANGLE
1
2
3
16.4
434
418
4
5 CENTER WITH HANDLE
