005A0418
M.A.L.
4
M-(M)-I
600A & 620A

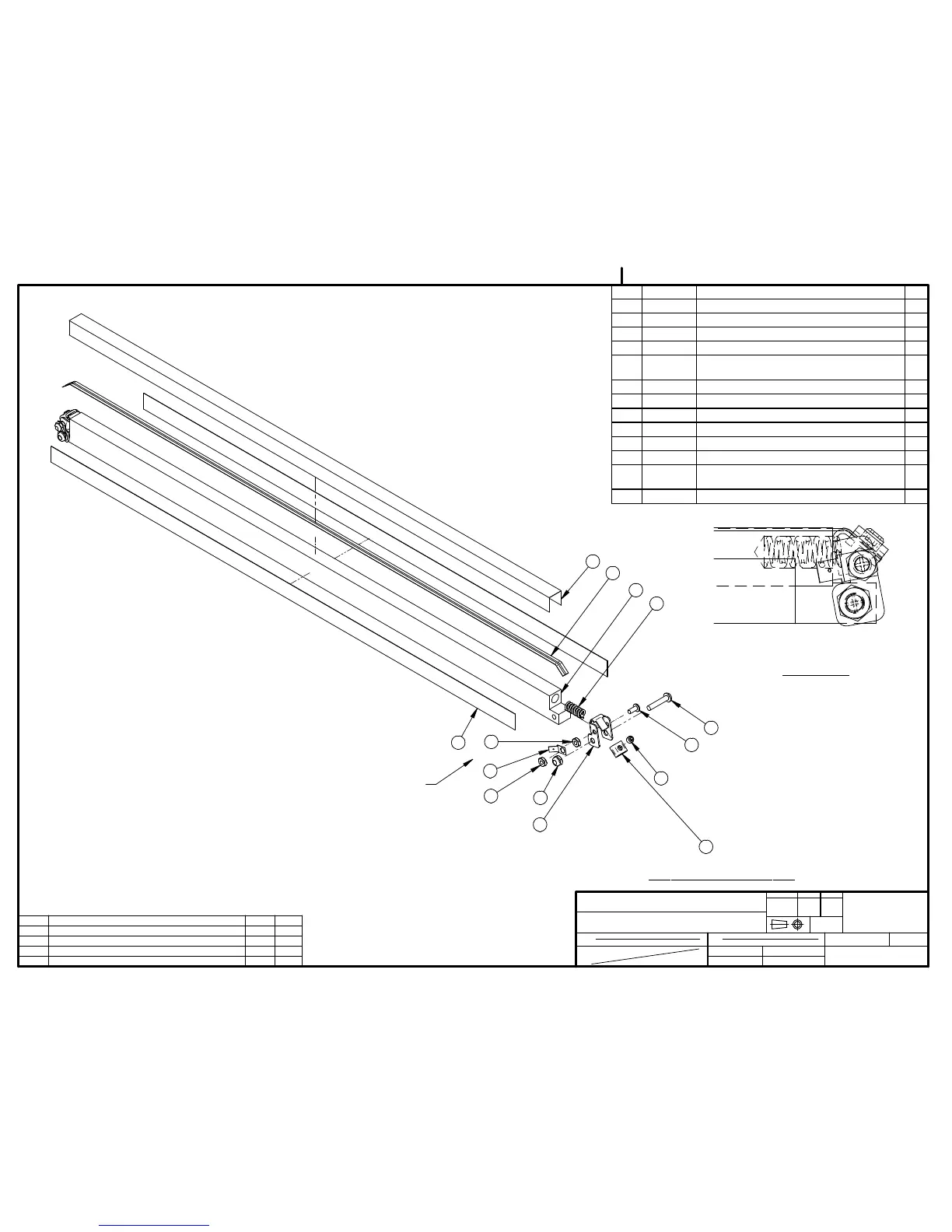

SEAL BAR PRE-ASS'Y
05-09-12
005A0418
MACHINE
PART
ITEM
MAT.
CNC
DWG BY
APP. BY
DATE
DATE
QTY.
DEPT.
SIPROMAC
ST-GERMAIN DE GRANTHAM
QUEBEC CANADA
DEPT. TOL.
USINAGE
TOLERIE
SOUDAGE
METRIC
± 0.1
±
0.5
±
0.
5
INCH
± 0.004"
±
0.020"
±
0.020"
N.T.S.
NO.
LET.
MODIFICATION
DATE
INT.
E
REDRAWN
05-09-12
M.A.
F
ADDED 052-0393
06-04-19
M.A.
H
600A ADDED
14-05-27
SBU
G
MODIF. A-453 AJOUTER 077-0095
10-06-01
J.G.
ITEM PART # DESCRIPTION QT.
1 002A0400 SEAL BAR 1
2 039-0268 DOUBLE SEAM BAND (8MM) (2.4) 1
3 176-0200 TEFLON TAPE 5MIL (0.81) 1
4 056-1401 3/8"SET SCREW BANDING BUCKLE S/S 2
5 052-0393 SCREW 1/4-28x3/16"SKT SET OVAL POINT
ZINC
2
6 051-0100 SCREW 8-32 X 3/8" PAN PHIL S/S 2
7 051-0550 NUT #8-32 SS 4
8 027-0400 CONNECTOR ADAPTOR 2
9 001A2742 8mm ELEMENT BINDER 2
10 051-0146 SCREW 10-24 X 1" PAN PHIL S/S 2
11 051-0572 NUT #10-24 NYLON LOCK S/S 2
12 171-0180 TAPE CLEAR SUPER BOND 3/4" 641.5mm
(0.019)
2
13 077-0095 SPRING C 0360-059-1250 S/S 2
3
1
6
10
7
7
11
12
-TWIN SEAL OPTION-
4 INSTALL AGAINST NOTCH OF ITEM #9INSTALLER CONTRE L'ENCOCHE DE L'ITEM #9
-DÉTAIL A-
VOIR DÉTAIL A
8
5
2
13
9PERMETTRE DE BOUGER LIBREMENT ALLOW TO MOVE FREELY
