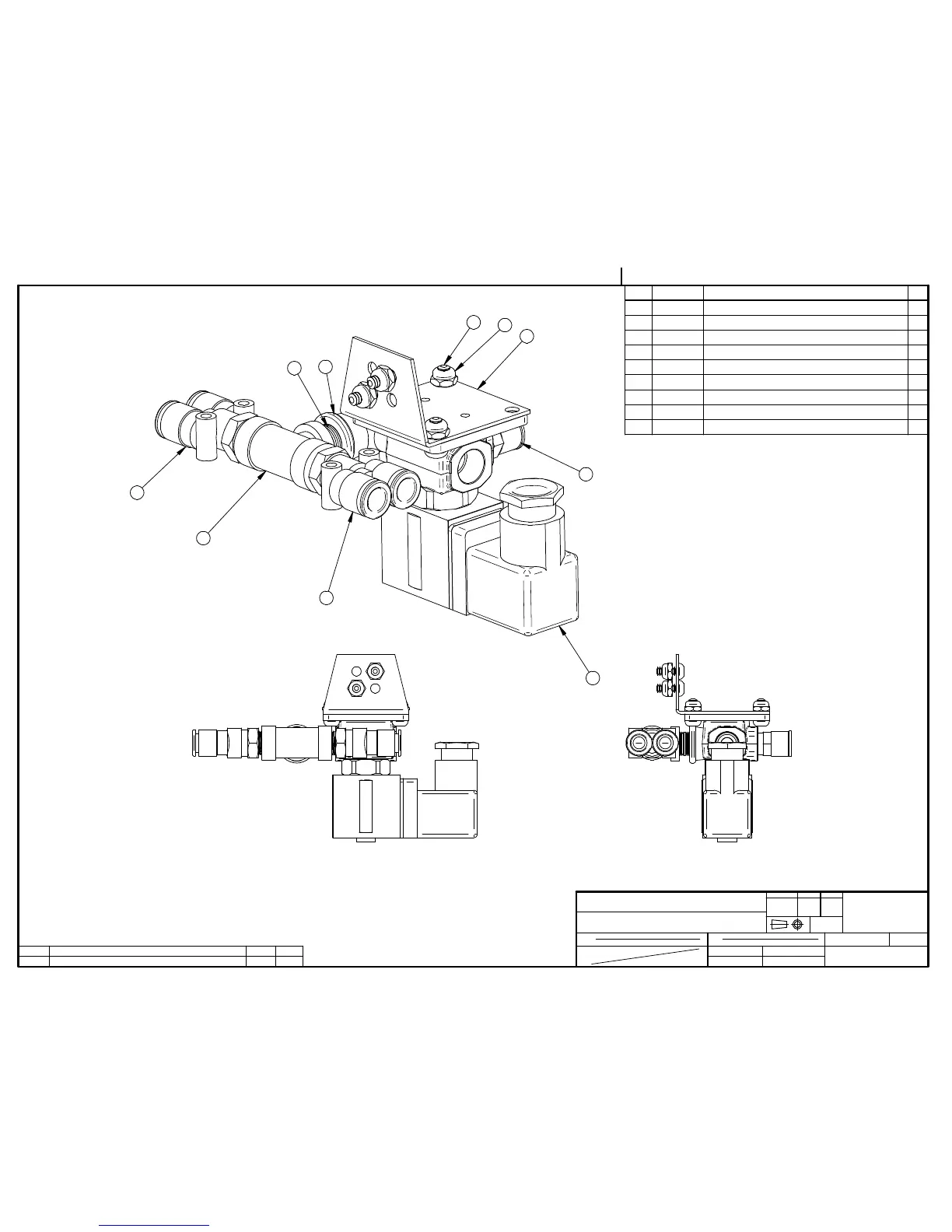

Sipromac 600A - Bellows Valve Assy

MACHINE
PART
ITEM
MAT.
CNC
DWG BY
APP. BY
DATE
DATE
QTY.
DEPT.
SIPROMAC
ST-GERMAIN DE GRANTHAM
QUEBEC CANADA
DEPT. TOL.
USINAGE
TOLERIE
SOUDAGE
METRIC
± 0.1
± 0.5
± 0. 5
INCH
± 0.004"
± 0.020"
± 0.020"
N.T.S.
NO.
004B4104
SBU
1
M
VACUUM
BELLOWS VALVE ASSY
14-05-27
004B4104
LET. MODIFICATION DATE INT.
A
VALVE UPDATE
14-05-27 SBU
ITEM PART # DESCRIPTION QT.
1 106-00701 VALVE 3WAY 24V 1/4''NPT 1
2 102-0410 MALE CONN.1/4"MNPTx3/8"T.QUICK 1
3 100-0065 STREET ELBOW 1/4" NPT SS 1
4 100-0225 CLOSE NIPPLE 1/4" NPT SS 1
5 100-0463 TEE 1/4" NPT S/S 1
6 102-0361 Y BRANCH 1/4'' MNPT X 3/8'' T. QUICK 2
7 001B6779 VALVE SUPPORT BRACKET 1
8 051-0144 SCREW #10-24 N.C 1/2"PAN PHIL. S/S 4
9 051-0572 NUT #10-24 NYLON LOCK S/S 4
2
1
6
5
3
4
6
7
9
8
