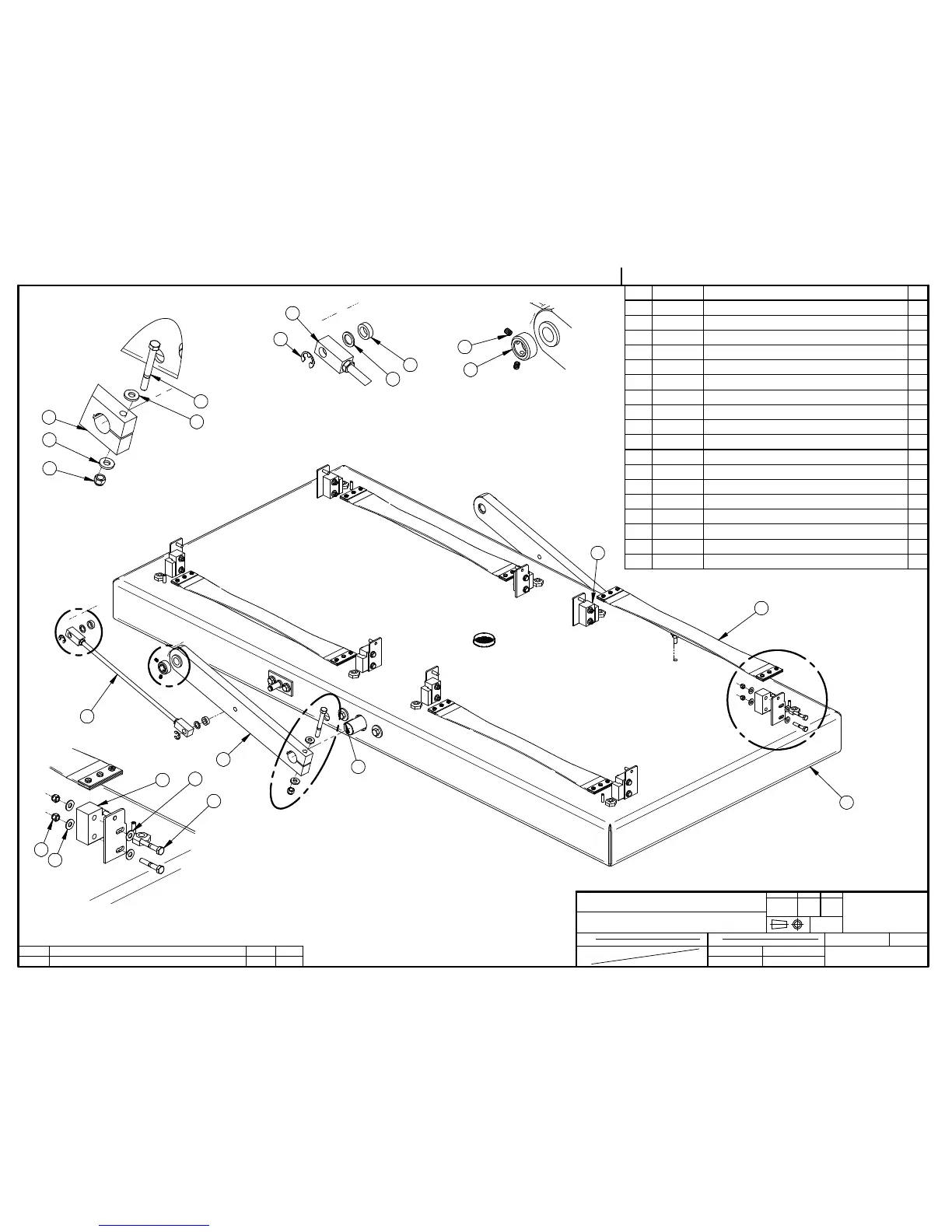

Sipromac 600A - Table W;Arm Assy

MACHINE
PART
ITEM
MAT.
CNC
DWG BY
APP. BY
DATE
DATE
QTY.
DEPT.
SIPROMAC
ST-GERMAIN DE GRANTHAM
QUEBEC CANADA
DEPT. TOL.
USINAGE
TOLERIE
SOUDAGE
METRIC
± 0.1
± 0.5
± 0. 5
INCH
± 0.004"
± 0.020"
± 0.020"
N.T.S.
NO.
004A4145
SBU
1
M
600A
TABLE W/ARM ASSY
13-11-28
004A4145
LET. MODIFICATION DATE INT.
A
005A1436 WAS 005-0320 (FIT BAR 620A)
14-01-08 SBU
ITEM PART # DESCRIPTION QT.
1 004D0122 TABLE ASSEMBLY 1
2 002-0327 RIGHT SEAL BAR GUIDE BLOCK 4
3 002-0326 LEFT SEAL BAR GUIDE BLOCK 4
4 051-0740 WASHER 1/4" FLAT S/S 32
5 051-0250 BOLT ¼"-20nc. X 1½" S/S 16
6 051-0581 NUT 1/4"-20 NYLON LOCK S/S 16
7 004-0280 COVER ARM ASS'Y 2
8 002-0390 COVER ARM COLLAR 2
9 051-0178 SCREW 1/4"-20 x 5/16" SKT SET S/S 4
10 051-0783 WASHER 3/8" FLAT THICK S/S 4
11 051-0422 BOLT 3/8"-16nc. X 3¼" S/S 2
12 051-0622 NUT 3/8"-16nc. NYLON LOCK S/S 2
13 058-0060 NYLON SPACER 1/2IDx3/4ODx1/4" 2
14 058-0050 NYLON SPACER 1/2IDx3/4ODx1/16" 2
15 004A1394 GUIDE ARM PRE-ASS'Y 1
16 056-0331 EXT. RETAINING RING 1/2" S/S 2
17 005A1436 BELLOWS ASSEMBLY 4
18 056-01675 KEY 1/4" SQ. x 1 1/4" ROUNDED END S/S 2
A
DETAIL A
5
4
3
4
6
17
2
1
B
DETAIL B
C
DETAIL C
13
14
15
16
15
7
9
8
D
DETAIL D
11
10
10
12
7
18
