MACHINE
PART
ITEM
MAT.
CNC
DWG BY
APP. BY
DATE
DATE
QTY.
DEPT.
SIPROMAC
ST-GERMAIN DE GRANTHAM
QUEBEC CANADA
DEPT. TOL.
USINAGE
TOLERIE
SOUDAGE
METRIC
± 0.1
±
0.5
±
0.
5
INCH
± 0.004"
±
0.020"
±
0.020"
N.T.S.
NO.
004A4098
SBU
1
M
VACUUM

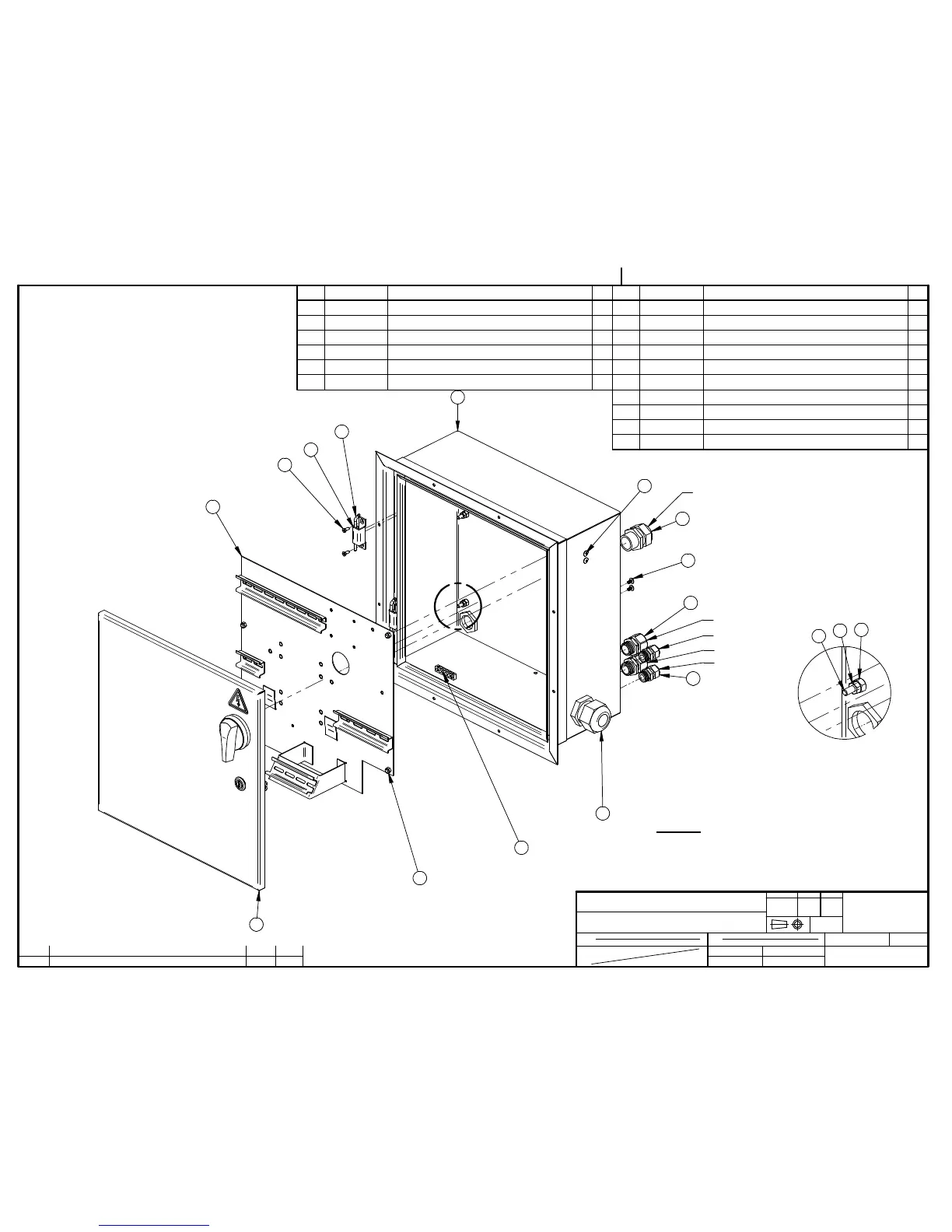

ELECTRIC BOX ASS'Y
13-09-23
004A4098
LET. MODIFICATION
DATE
INT.
NOTE:
- 026-3161 - DISCONNECT SWITCH SHAFT: COUPER À
134 MM DE LONG.
1
7
4
6
8
5
9
13
3
2
ITEM PART # DESCRIPTION QT.
1 004A4099 E-BOX PRE-ASSY 1
2 056-3010-1 HINGE CONCEALED SS304 - BASE 2
3 056-3010-3 HINGE CONCEALED SS304 - PIN 2
4 004A4102 E-BOX FALSE BOTTOM 1
5 036-0430 PRESSE-ÉTOUPE CD29 1
6 036-0409 PRESSE-ETOUPE CD13 3
7 004A4100 E-BOX DOOR ASSEMBLY 1
8 036-0420 PRESSE-ÉTOUPE CD21 2
9 036-0440 PRESSE-ÉTOUPE CD36 1
10 051-0600 NUT 5/16" -18 S/S 4
A
DETAIL A
11
12
10
14
ITEM PART # DESCRIPTION QT.
11 051-0580 NUT 1/4"-20 S/S 4
12 051-0210 BOLT ¼"-20nc. X 1" S/S 4
13 051-0581 NUT 1/4"-20 NYLON LOCK S/S 4
14 051-0139 SCREW 10-24 x 1/2" FLAT PHIL S/S 4
15 028-0105 GROUND BARRIER (6 HOLES) 1
16 051-0128 SCREW 10-24 x 3/8'' TRUSS PHIL S/S 4
15
16
16
TOP BOTTOM OPTION
SEAL BAR
PUMP
MC-40
VALVES
