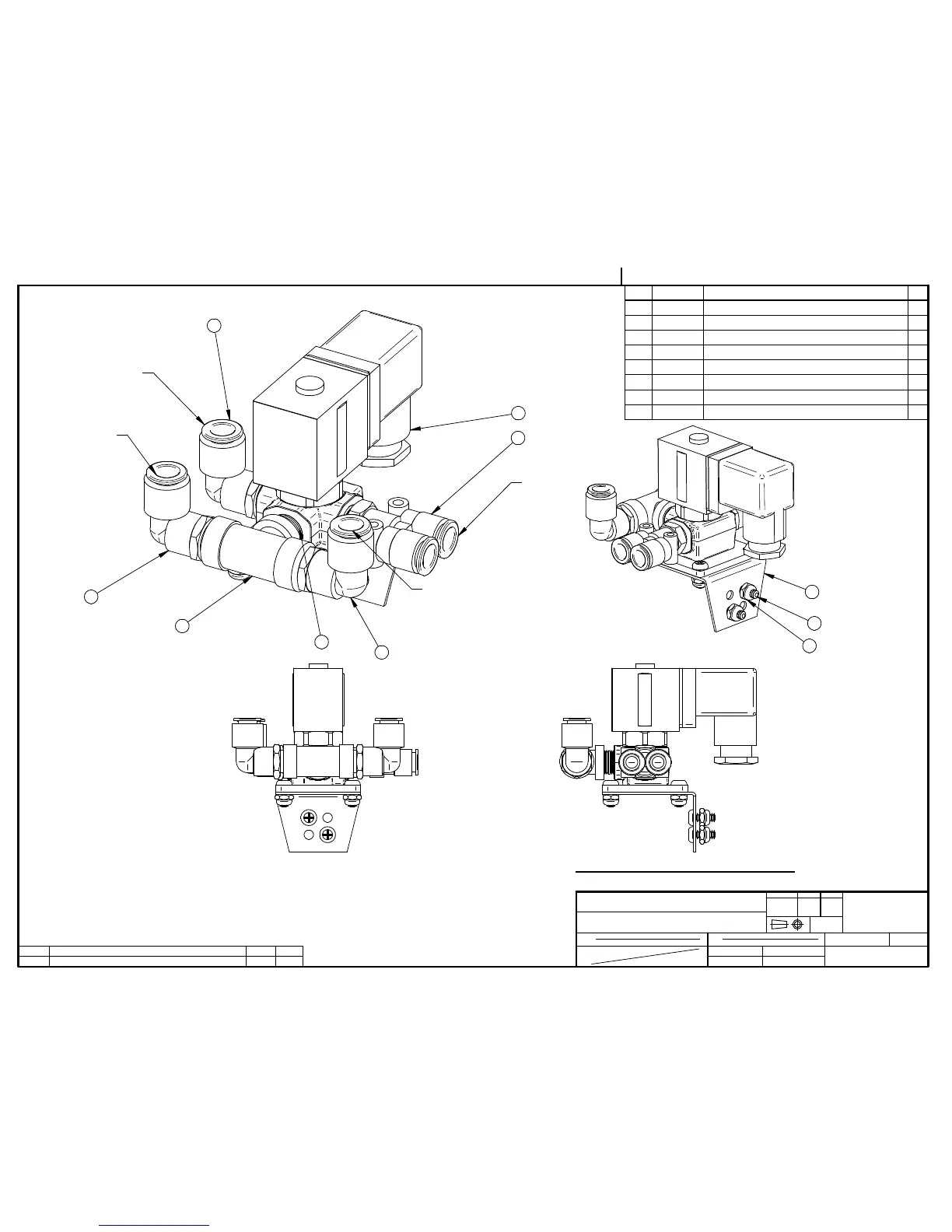

Sipromac 600A - Bellows Valve Assy (Opt Air Reg)

MACHINE
PART
ITEM
MAT.
CNC
DWG BY
APP. BY
DATE
DATE
QTY.
DEPT.
SIPROMAC
ST-GERMAIN DE GRANTHAM
QUEBEC CANADA
DEPT. TOL.
USINAGE
TOLERIE
SOUDAGE
METRIC
± 0.1
± 0.5
± 0. 5
INCH
± 0.004"
± 0.020"
± 0.020"
N.T.S.
NO.
004B4105
SBU
1
M
VACUUM
BELLOWS VALVE ASSY (OPT AIR REG)
14-05-27
004B4105
LET. MODIFICATION DATE INT.
A
UPDATE VALVE
14-05-27 SBU
-OPTION - AIR REGULATOR
ITEM PART # DESCRIPTION QT.
1 001B6779 VALVE SUPPORT BRACKET 1
2 051-0144 SCREW #10-24 N.C 1/2"PAN PHIL. S/S 4
3 051-0572 NUT #10-24 NYLON LOCK S/S 4
4 100-0225 CLOSE NIPPLE 1/4" NPT SS 1
5 100-0463 TEE 1/4" NPT S/S 1
6 102-0330 ELBOW 1/4" NPT X 3/8" HOSE QUICK 3
7 102-0361 Y BRANCH 1/4'' MNPT X 3/8'' T. QUICK 1
8 106-00701 VALVE 3WAY 24V 1/4''NPT 1
FROM PUMP
TO OTHER VALVE
AIR PRESSURE
TO BELLOWS
8
6
7
6
6
5
4
1
2
3
