Sipromac 600A - Vacuum; Atmosphere Valve Assy.

MACHINE
PART
ITEM
MAT.
CNC
DWG BY
APP. BY
DATE
DATE
QTY.
DEPT.
SIPROMAC
ST-GERMAIN DE GRANTHAM
QUEBEC CANADA
DEPT. TOL.
USINAGE
TOLERIE
SOUDAGE
METRIC
± 0.1
± 0.5
± 0. 5
INCH
± 0.004"
± 0.020"
± 0.020"
N.T.S.
NO.
004B1404
SBU
1
M-I
VACUUM

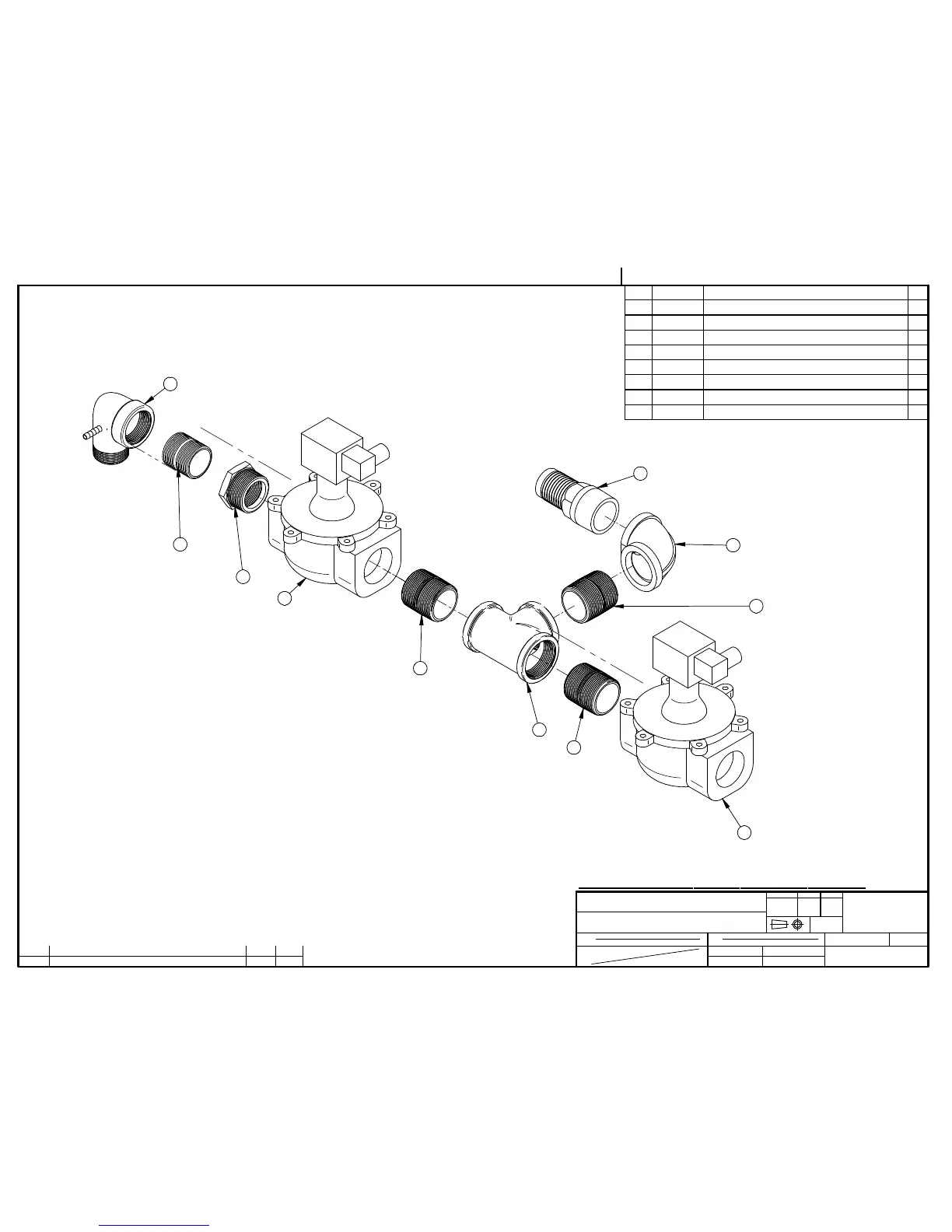

VACUUM / ATMOSPHERE VALVE ASSY.
13-09-19
004B1404
LET. MODIFICATION DATE INT.
-OPTION - 40M³, 63M³ & 100M³ PUMP
6
5
4
7
3
ITEM PART # DESCRIPTION QT.
1 004A4081 BELLOWS ELBOW CONNECTOR ASSY 1
2 100-0245 CLOSE NIPPLE 1¼"npt. S/S 1
3 106-0050 VALVE 2WAY 24V 1-1/2"NPT(B60)60Hz 2
4 100-0485 TEE 1-1/2" NPT S/S 1
5 100-0440 NIPPLE 1-1/2'' NPT X 2'' SS 3
6 100-0047 ELBOW 90° X 1-1/2'' NPT S/S 1
7 100-1230 STRAIGHT 1-1/2"MNPT x1-1/2" HOSE BARB 1
8 100-0555 RED.BUSH.1-1/2" x 1-1/4" NPT S/S 1
2
5
3
5
8
1
