Sipromac 600A - Upper Seal Bar Assembly (E.C.o.) & (Twin)

004A1125
J.G.
2
M-I
600A & 620A
UPPER SEAL BAR ASSEMBLY (E.C.O.) & (TWIN)
08-04-30
004A1125
MACHINE
PART
ITEM
MAT.
CNC
DWG BY
APP. BY
DATE
DATE
QTY.
DEPT.
SIPROMAC
ST-GERMAIN DE GRANTHAM
QUEBEC CANADA
DEPT. TOL.
USINAGE
TOLERIE
SOUDAGE
METRIC
± 0.1
± 0.5
± 0. 5
INCH
± 0.004"
± 0.020"
± 0.020"
N.T.S.
NO.
LET.
MODIFICATION
DATE INT.
A
REDESSINÉ VOIR AUSSI 004A2559 & 004A2560
08-04-30 J.G.
B
MODIF. #A-0444 / AJOUTER TWIN / ÉTAIT 005A0572
10-10-01 J.G.
D
600A ADDED
14-05-27 SBU
C
AJOUTER ITEM # 3 ET 4
14-03-31 S.L.
-TWIN SEAL-
1

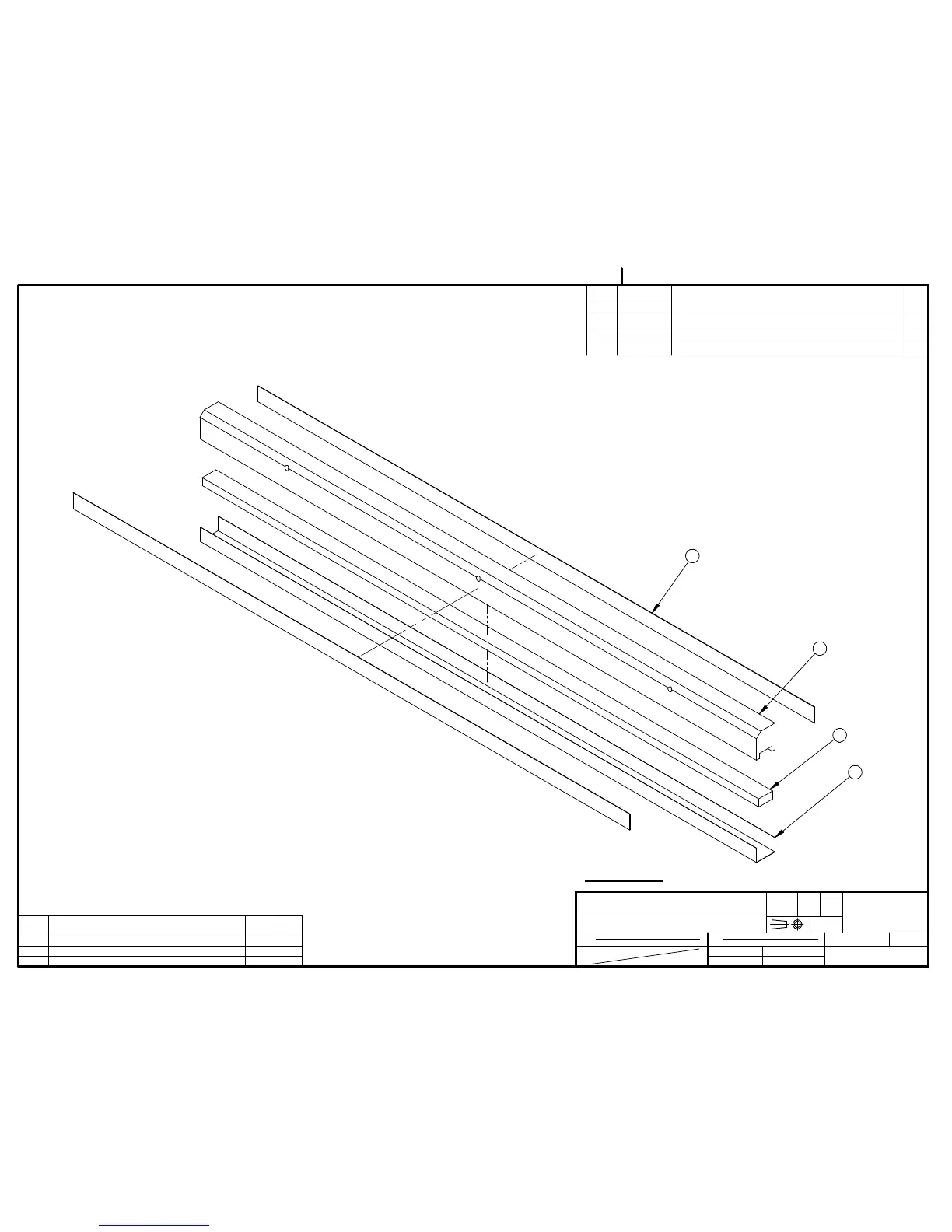

ITEM PART # DESCRIPTION QT.
1 002A2124 UPPER SEAL BAR SUPPORT 1
2 008-0402 UPPER SEAL BAR RUBBER 1
3 171-0180 TAPE CLEAR SUPER BOND 3/4" (0.024) 2
4 176-0200 TEFLON TAPE,PRESS.SENSITIVE 2" 683mm (0.08) 1
2
3
4
