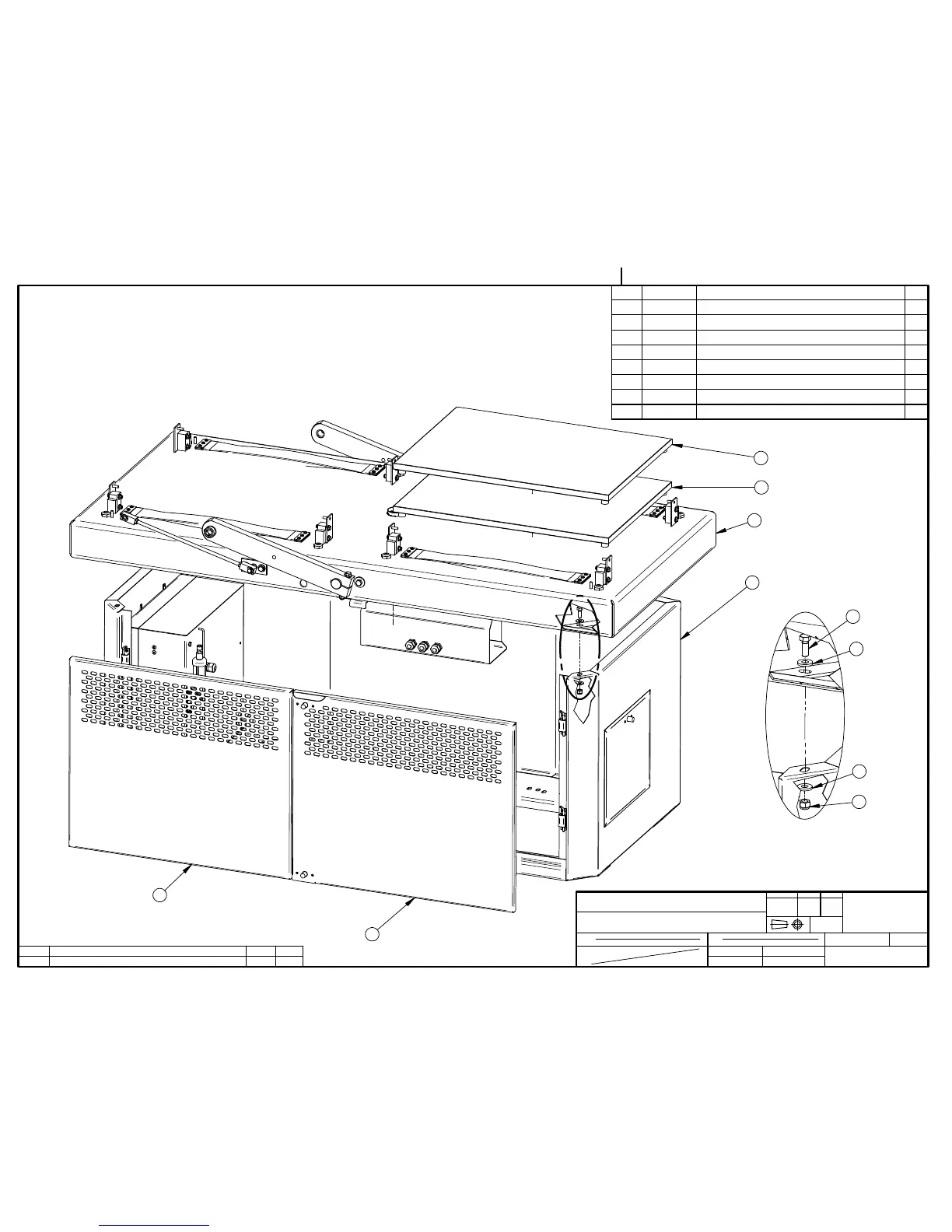

Sipromac 600A - Base Machine Assembly

MACHINE
PART
ITEM
MAT.
CNC
DWG BY
APP. BY
DATE
DATE
QTY.
DEPT.
SIPROMAC
ST-GERMAIN DE GRANTHAM
QUEBEC CANADA
DEPT. TOL.
USINAGE
TOLERIE
SOUDAGE
METRIC
± 0.1
± 0.5
± 0. 5
INCH
± 0.004"
± 0.020"
± 0.020"
N.T.S.
NO.
004A4146
SBU
1
M
600A
BASE MACHINE ASSEMBLY
13-11-26
004A4146
LET. MODIFICATION DATE INT.
A
005D0457 WAS 005C0457
15-04-24 SBU
ITEM PART # DESCRIPTION QT.
1 004A4095 LEFT REAR ACCESS DOOR PRE-ASSY 1
2 004A4097 RIGHT REAR ACCESS DOOR ASSY 1
3 004A4145 TABLE W/ARM ASSY 1
4 005A0322 FILLER PLATE ASSEMBLY 4
5 005D0457 STRUCTURE ASS'Y 1
6 051-0360 BOLT 3/8"-16nc. X 1" S/S 6
7 051-0622 NUT 3/8"-16nc. NYLON LOCK S/S 6
8 051-0783 WASHER 3/8" FLAT THICK S/S 12
4
4
3
5
2
1
A
DETAIL A
6
8
8
7
