Sipromac 600A - Vacuum;Atmosphere Valve Assy

MACHINE
PART
ITEM
MAT.
CNC
DWG BY
APP. BY
DATE
DATE
QTY.
DEPT.
SIPROMAC
ST-GERMAIN DE GRANTHAM
QUEBEC CANADA
DEPT. TOL.
USINAGE
TOLERIE
SOUDAGE
METRIC
± 0.1
± 0.5
± 0. 5
INCH
± 0.004"
± 0.020"
± 0.020"
N.T.S.
NO.
004A0863
SBU
1
M
VACUUM

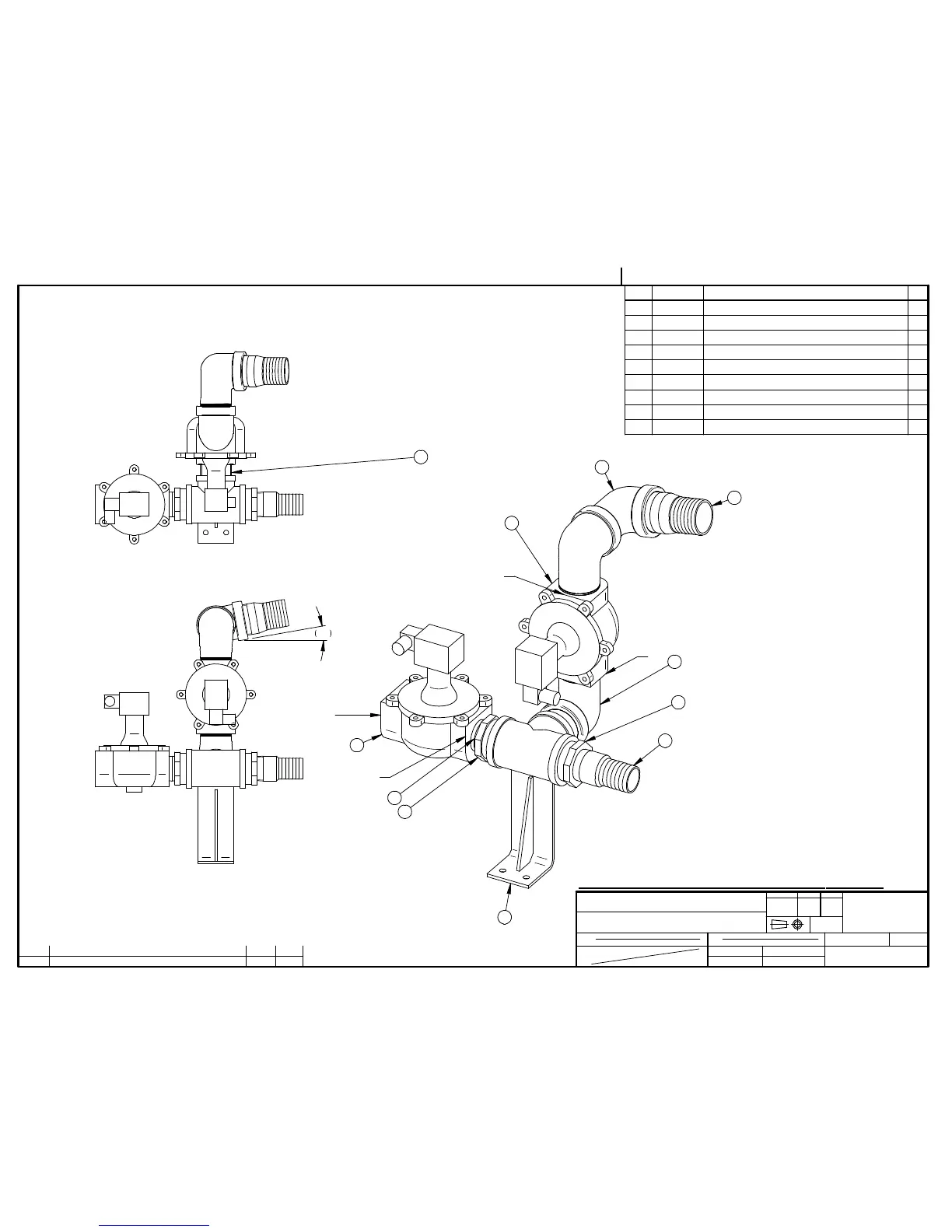

VACUUM/ATMOSPHERE VALVE ASSY
13-09-18
004A0863
LET. MODIFICATION DATE INT.
-OPTION - 165M³, 255M³ & 305M³ PUMP
6
8
7
2
5
1
10°
7
9
4
ITEM PART # DESCRIPTION QT.
1 106-0060 VALVE 2WAY 24V 2'' NPT(B80) 60HZ 1
2 100-1250 STRAIGHT 2"MNPT X 2" HOSE BARB SS 1
3 100-0250 CLOSE NIPPLE 2" NPT SS 1
4 004B1621 VAC./ATM. VALVE SUPP. PRE-ASS'Y 1
5 106-0050 VALVE 2WAY 24V 1-1/2"NPT(B60)60Hz 1
6 100-0095 STREET ELBOW 90° X 2'' NPT SS 3
7 100-0561 RED.BUSH. 2"NPTx1-1/2"NPT SS 2
8 100-0250 CLOSE NIPPLE 1-1/2"NPT S/S 1
9 100-0740 STR.1-1/2"MNPTx1-1/2"HOSE SS 1
3
6
IN
IN
OUT
OUT
