005A1436
S.L.
2(550) 4
M
550A, 600A & 620A

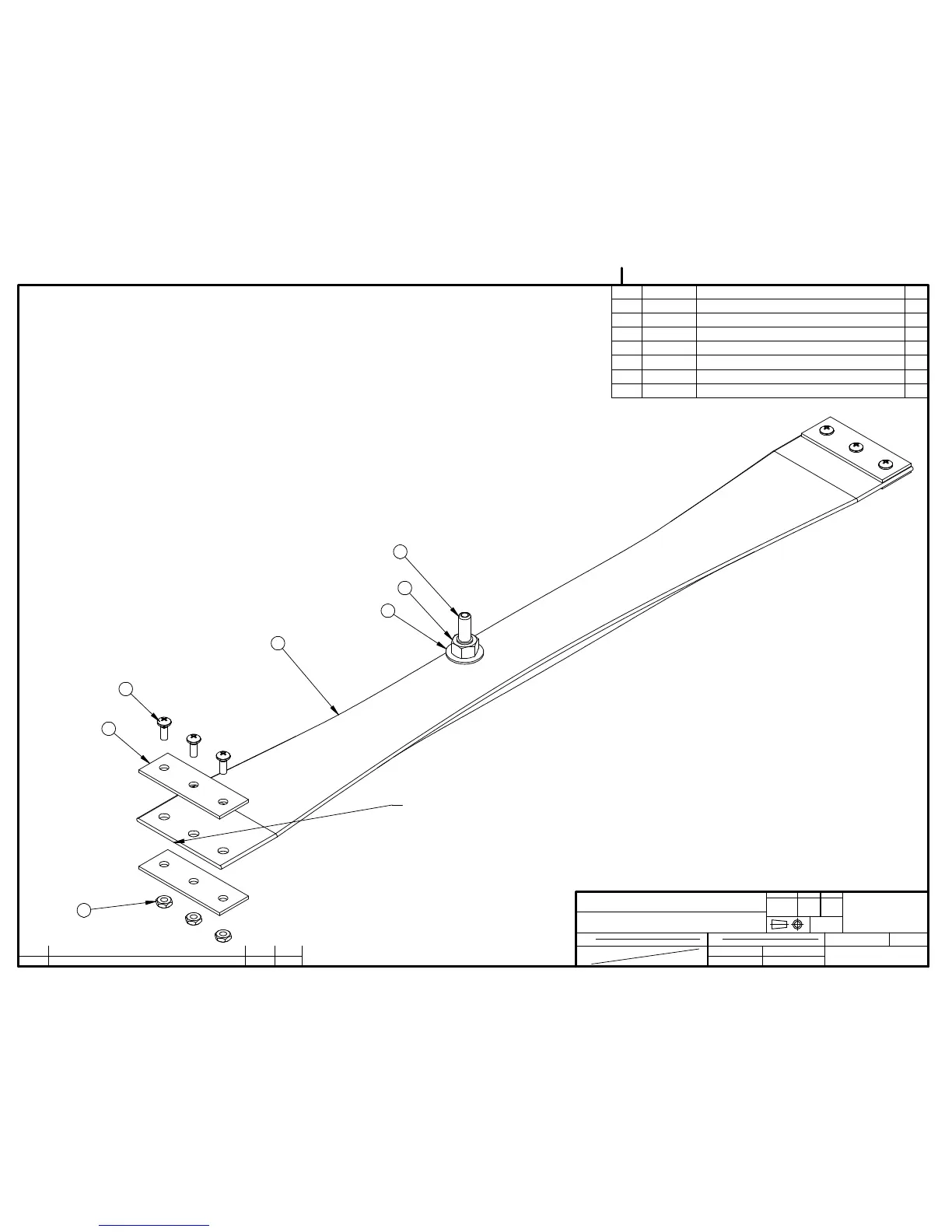

BELLOWS ASSEMBLY
13-11-12
005A1436
MACHINE
PART
ITEM
MAT.
CNC
DWG BY
APP. BY
DATE
DATE
QTY.
DEPT.
SIPROMAC
ST-GERMAIN DE GRANTHAM
QUEBEC CANADA
DEPT. TOL.
USINAGE
TOLERIE
SOUDAGE
METRIC
± 0.1
±
0.5
±
0.
5
INCH
± 0.004"
±
0.020"
±
0.020"
N.T.S.
NO.
LET.
MODIFICATION
DATE
INT.
ITEM PART # DESCRIPTION QT.
1 008A1996 BELLOWS 1
2 001-0899 BELLOWS CLAMP 4
3 051-0105 SCREW #8-32 x 7/16" TRUSS PHIL S/S 6
4 051-0550 NUT #8-32 SS 6
5 003-0022 BELLOWS CONNECTOR 1
6 051-0620 NUT 3/8"-16 NC S/S 1
7 051-0780 WASHER 3/8" FLAT S/S 1
3
5
1
6
7
2
4
APPLY GLUE 169-0013 INSIDE THE BELLOWS
