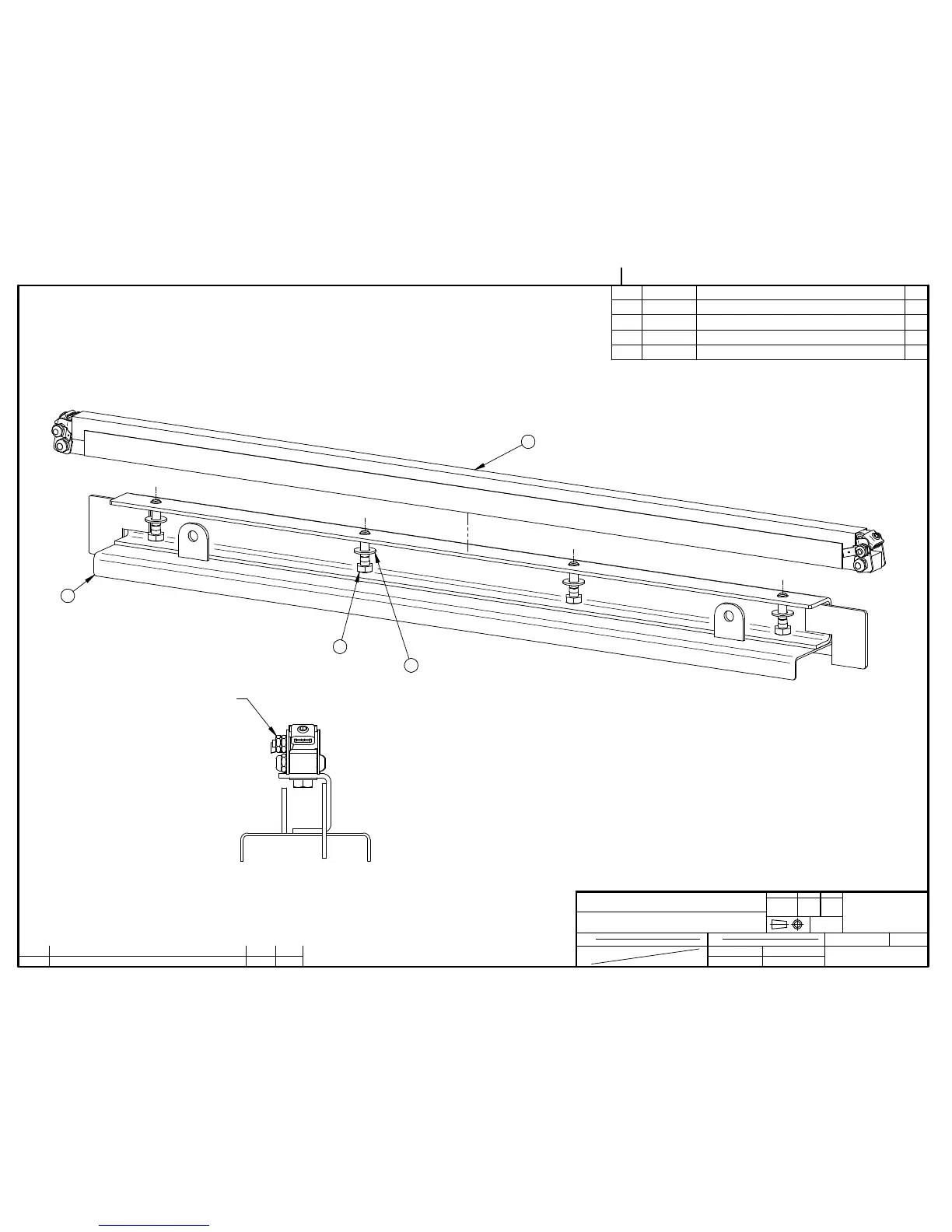

Sipromac 600A - Seal Bar Assy W; Ss Support (Twin Seal)

MACHINE
PART
ITEM
MAT.
CNC
3D DWG BY
2D DWG BY
DATE
DATE
QTY.
DEPT.
SIPROMAC
ST-GERMAIN DE GRANTHAM
QUEBEC CANADA
DEPT. TOL.
USINAGE
TOLERIE
SOUDAGE
METRIC
± 0.1
± 0.5
± 0. 5
INCH
± 0.004"
± 0.020"
± 0.020"
N.T.S.
NO.
005A1536
SBU
4
M
600A & 620A
SEAL BAR ASSY W/ SS SUPPORT (TWIN SEAL)
14-10-09
005A1536
LET. MODIFICATION DATE INT.
OPTION - TWIN SEAL / STAINLESS BAR
SBU
14-10-09
1
3
4
ITEM PART # DESCRIPTION QT.
1 004A4247 SEAL BAR SUPPORT (SS) 1
2 005A0418 SEAL BAR PRE-ASS'Y 1
3 051-0210 BOLT ¼"-20nc. X 1" S/S 4
4 051-0740 WASHER 1/4" FLAT S/S 4
2
COSSE DE CE CÔTÉ
CONNECTOR ON THIS SIDE
