Sipromac 600A - Access Door Assembly

MACHINE
PART
ITEM
MAT.
CNC
DWG BY
APP. BY
DATE
DATE
QTY.
DEPT.
SIPROMAC
ST-GERMAIN DE GRANTHAM
QUEBEC CANADA
DEPT. TOL.
USINAGE
TOLERIE
SOUDAGE
METRIC
± 0.1
± 0.5
± 0. 5
INCH
± 0.004"
± 0.020"
± 0.020"
N.T.S.
NO.
004A4090
SBU
1
M
VACUUM

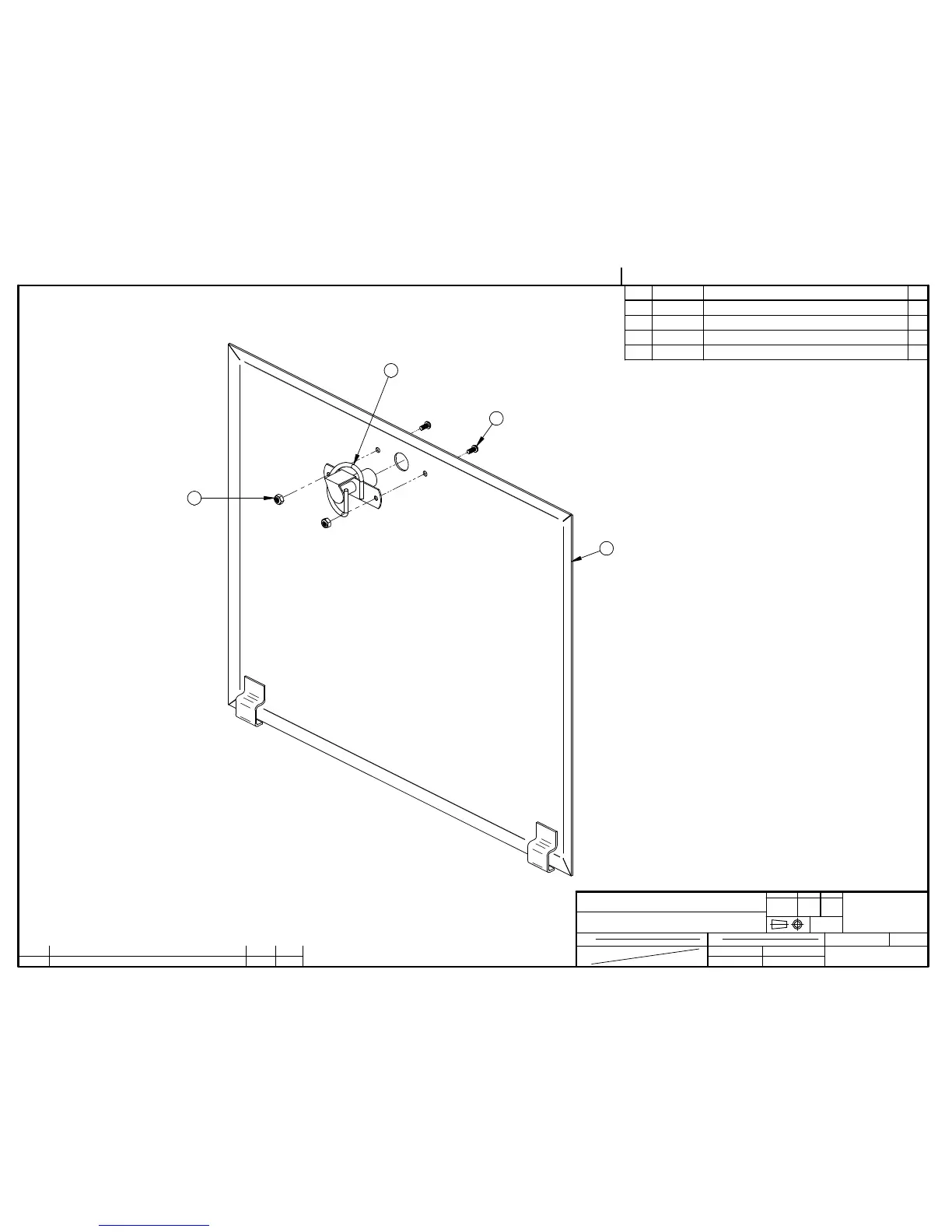

ACCESS DOOR ASSEMBLY
13-09-11
004A4090
LET. MODIFICATION DATE INT.
1
3
4
2
ITEM PART # DESCRIPTION QT.
1 004A4089 ACCESS PANEL PRE-ASSY 1
2 056-2600 SPRING PAWL LATCHE SS KNOB 1
3 051-0071 SCREW 4-40 x 1/4" RND SLOT S/S 2
4 051-0541 NUT # 4-40 NYLON LOCK SS 2
